3K VDC 12V DC DC Converter E_D-1WR2 F_D-1WR2 Series 24VDC
Price:
Negotiable
MOQ:
100PCS
Delivery Time:
Negotiable
Brand:
MORNSUN
Product Description
1W isolated DC-DC converter with Fixed Input Voltage and Unregulated Single Output
Description
E_D-1WR2 &F_D-1WR2 series are specially designed for applications where an isolated voltage is required in a distributed power supply system.They are suitable for
1. Where the voltage of the input power supply is stable(voltage variation:±10%Vin);
2. Where isolation between input and output is necessary(isolation voltage ≤3000VDC);
3. Where the output voltage regulation and the ripple&noise of the output voltage is not strictly required;
4. Typical application:digit circuit condition;normal low-frequency artificial circuit condition;relay drive circuit and data switching circuit condition,etc.
FEATURES
- Continuous short-circuit protection
- Operating temperature range: -40℃ to +105℃
- High efficiency up to 81%
- DIP package
- Isolation voltage: 3K VDC
- No external component required
- International standard pin-out
- UL60950,EN60950 approval
Specifications
| Selection Guide | ||||||
|
Certification |
Part No. |
Input Voltage (VDC) | Output |
Efficiency (%,Min./Typ.) @ Full Load |
Max. Capacitive Load* (µF) |
|
| Nominal (Range) | Output Voltage (VDC) | Output Current (mA)(Max./Min.) | ||||
|
CE |
F0303D-1WR2 |
3.3 (2.97-3.63) |
3.3 | 303/31 | 68/72 | 220 |
| E0505D-1WR2 |
5 (4.5-5.5) |
±5 | ±100/±10 | 75/79 |
100 |
|
| E0512D-1WR2 | ±12 | ±42/±5 | 76/80 | |||
| E0515D-1WR2 | ±15 | ±34/±3 | 77/81 | |||
| F0503D-1WR2 | 3.3 | 303/31 | 71/75 |
220 |
||
| F0505D-1WR2 | 5 | 200/20 | 76/80 | |||
| F0512D-1WR2 | 12 | 83/9 | 76/80 | |||
| F0515D-1WR2 | 15 | 67/7 | 77/81 | |||
| E1205D-1WR2 |
12 (10.8-13.2) |
±5 | ±100/±10 | 76/80 | 100 | |
| F1205D-1WR2 | 5 | 200/20 | 76/80 |
220 |
||
| F1212D-1WR2 | 12 | 83/9 | 76/80 | |||
| F1215D-1WR2 | 15 | 67/7 | 77/81 | |||
| UL/CE | F1515D-1WR2 |
15 (13.5-16.5) |
15 | 67/7 | 76/80 | |
|
CE |
E2412D-1WR2 |
24 (21.6-26.4) |
±12 | ±42/±5 | 77/81 |
100 |
| E2415D-1WR2 | ±15 | ±34/±3 | 76/80 | |||
| F2405D-1WR2 | 5 | 200/20 | 75/79 | 220 | ||
| Note: *The capacitive loads of positive and negative outputs are the same. | ||||||
| Input Specifications | |||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit |
|
Input Current (full load / no-load) |
3.3V input | -- | 420/30 | --/70 |
mA |
| 5V input | -- | 256/20 | --/60 | ||
| 12V input | -- | 106/15 | --/50 | ||
| 15V input | -- | 84/10 | --/35 | ||
| 24V input | -- | 54/7 | --/30 | ||
| Reflected Ripple Current | -- | 15 | -- | mA | |
|
Surge Voltage (1sec. max.) |
3.3V input | -0.7 | -- | 5 |
VDC |
| 5V input | -0.7 | -- | 9 | ||
| 12V input | -0.7 | -- | 18 | ||
| 15V input | -0.7 | -- | 21 | ||
| 24V input | -0.7 | -- | 30 | ||
| Input Filter | Filter capacitor | ||||
| Hot Plug | Unavailable | ||||
| Physical Specifications | |
| Casing Material | Black flame-retardant heat-proof plastic (UL94 V-0) |

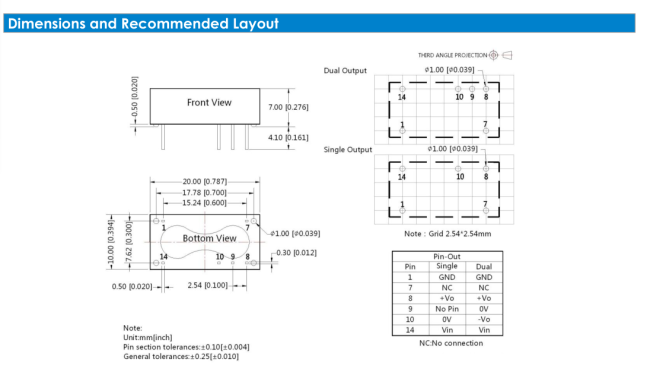

| Dimensions | 20.00*10.00*7.00mm |
| Weight | 2.4g(Typ.) |
| Cooling Method | Free air convection |
