AU SN SMD Gasket Silicone Flat Rubber Seal Ring Corrugated
SMD Gasket,WHL405050 Surface Mount Technology, Elastic Recovery,Electricity Production
1. Part Name: SMD GASKET
2. WHL: 405050
3. Product Characteristic
SMD GASKET is a surface mount technology utilizes surface mounter ( SMD M/C) PCB mounting and is available as a ground terminal and the mount an electric/electronic devices,and EMI noise reduction products. SMD GASKET is suitable for the required flexibility, elastic recovery, heat resistance and electrical conductivity tanwol products.
4. Material and Finish
| NO | ITEM | Material | Plating |
| 1 | Silicone | Silicone | |
| 2 | PI Film | Sn plating |
|

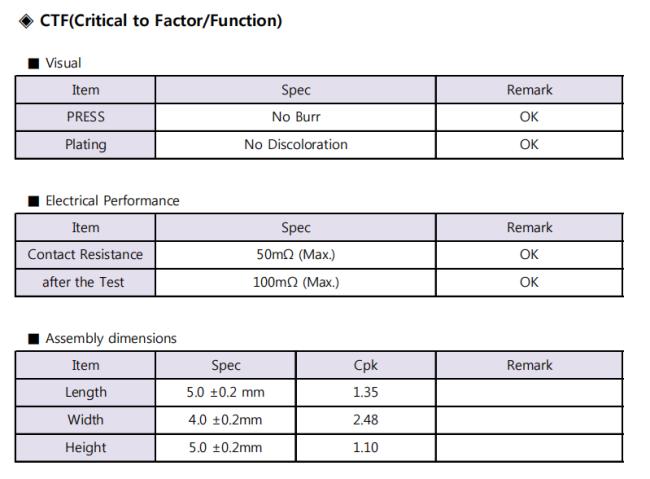

PRESS |
NO BURR |
| PLATING | NO Discoloration |
| Contact Resistance | 50mΩ (Max.) |
| After the test | 100mΩ (Max.) |

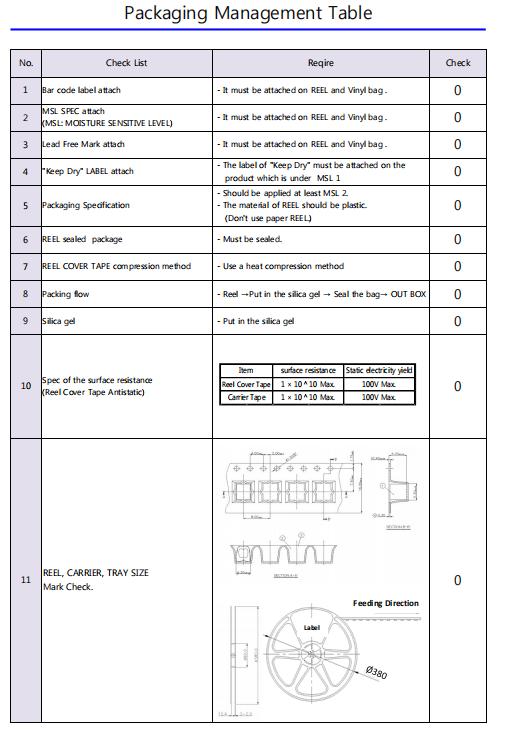

Packing Spec

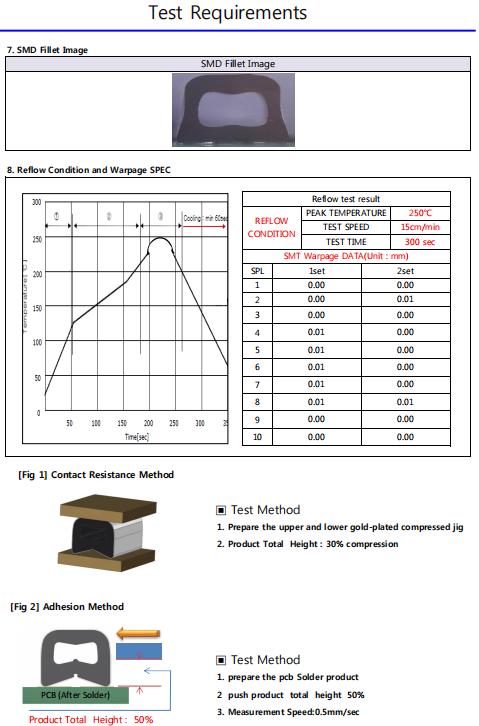

Adhesion Method
Ultra-small size
· Hollow type can be manufactured up to a thickness of 0.7mm.
· Solid type can be manufactured up to 0.5mm thick and 1.0mm wide.
Conductive metal layer on the silicone rubber surface
· Innovative product with soft silicone rubber properties and conductive metal properties at the same time.
· Improved EMI shielding and grounding performance due to thicker conductive surface layer.
· Improved corrosion resistance and reliability by not exposing the copper layer to outside air.
Easy to adjust product softness
· Adjusting the hollow size and shape to soften the gasket minimizes stress on and improves adhesion to PCB.
· Metal surface layer is possible even when the silicone rubber core is thin, improving the disadvantage of its hardness when the silicone rubber is thick.
· Easy to adjust the shape, number, and thickness of the core hollow.
