Light Diesel Explosion Proof Engine 40KW For Petrol Industry

Price Negotiable
Price: USD5000~15000/unit
MOQ: 1units
Delivery Time: depends on order quantity
Brand: KCAB
Product Description

Light Diesel Explosion-Proof Engine 40KW Rated Power Special For Petrol Industry

Diesel Exposion Proof Engine product Detailed Specification:

Model KC498DFB
Cooling System Fuel System
Cooling form Water Fuel Type Light Diesel
Coolant Volume 5L Supply advance angle 9-11°
Cooling Lose Power 9KW Injection pressure 22Mpa
Thermostat Starting Temper. 78 Min. Fuel Consume 223g/kw.h
Max Allowed Working Temperature 97 Flameout Mode Pull handle
Max Cooling circle drag 35kPa Min.Inlet Pipe dia. 8mm
Pump Flow Rate 130L/min Min.Return Pipe dia. 8mm
    Oil Pump Max.Flow rate 2L/min
Lubrication System Allowed Max. Oil Temp. 70°C
Min. Oil pressure 150kPa
Standard Working Oil Pressure 350-550kpa Per Formance Data
Oil Grade CF-4 Cylinder Number 4
Oil Volume 7.5L Cylinder Diameter 68mm
Max. Working Tem. of Oil Pan 120°C Cylinder Stroke 105mm
Oil pan Inclination angle 30° Displacement 6.168L
    Compress Ratio 18
Starting System Displacement Temperature ≤135°C
Starting form Electric Engine full speed noise 115dB
Starting Voltage 24V
Min Battery Capacity 60Ah Tech Datas
Motor Rated Power 2.5KW Rated Power/Speed 40±2kw/2500rpm
Max, Current 198A Max. Torque/Speed 200N.m/1800rpm
Non preheating Min.starting temp. 0°C High. Idling Speed 2600~2700rpm
Pinion Teeth Number 9/3 Low. Idling Speed 800rpm
Free Wheel Teeth Number 103/3



Products Description:



Kc498 explosion-proof diesel engine, if need, should be repaired as follows: grind (replace) the valve and adjust the valve clearance. Adjust the fuel supply advance angle, adjust the fuel injection pressure, and replace the fuel injection nozzle and plunger if necessary. Check the cylinder pressure and replace the piston ring if necessary. Adjust the clearance of main bearing (connecting rod bearing) and replace the bearing if necessary

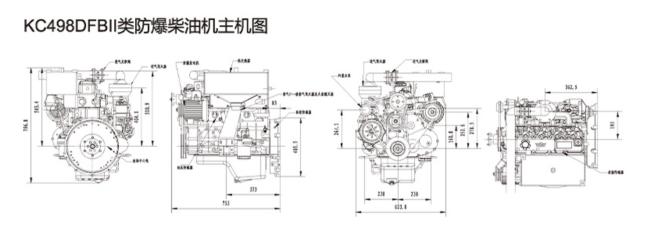

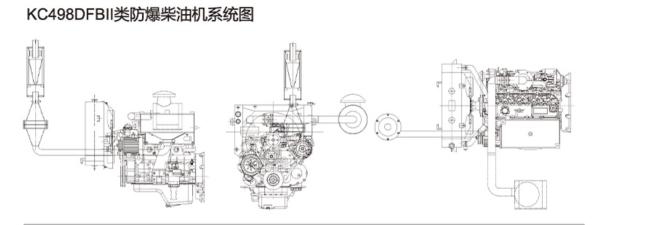

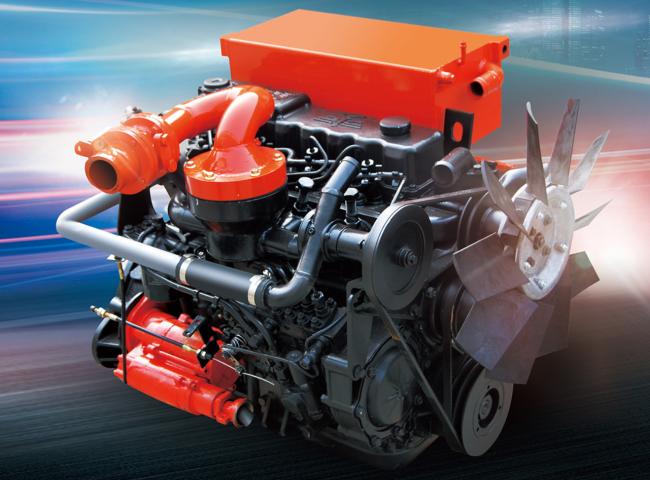

Products HD pictures:







Company Profile:

Wuhan Essence Tech Co.,Ltd is a trading comany who has been focus on Automotive exporting more than 5years. We cooperates deeply with many big and famous Manufacturers of Vehicle sush as DONGFENG, Changan, Chuanqi and Chevrolet, on the sales of their Passenger cars, commercial cars and also the special use vehicles. Basing on the hard work during past years, we have successfully exported the full series vehicle of these brands to Egypt, Colombia, Kazakhstan, Russia, Algeria, Lebanon, Sudan and Jordan etc. countries which have gained good reputation locally. It has gained a good reputation locally.



From the first day of setting up, we always adhered to the to the principle of "providing customers with cost-effective products" and the concept of " Win-Win with Customers", to make more people around the world to know, to understand, recognize and support Chinese Vehicles.



We adopt 5A mode management , control the products quality strictly, set up the complete sourcing and supplying system, to make sure our customers can be served with the shortest delivery time, most competitive price and best quantity vehicles. Now, at this moment of the alternation of new and old energy vehicles, we are willing to cooperate with the cooperators all over the world to create our new time together.





Packing and Shipping:





FQA:



Q:How about the warranty?

A:One year

Q:How about the delivery time?

A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed

Q:How about shipping ?

A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,

Pls contact us to get a shipping quotation .

Q: How many trucks does your factory produce per years?

A: Almost 3000 units

Q: How about your product After-sales service system?

A: Our main export country have accepted after-sales service,some of country used the third department service.

Q: Do you accept Custom orders? What's is your MOQ order?

A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.

Q:Which country do you have exported to?

A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
