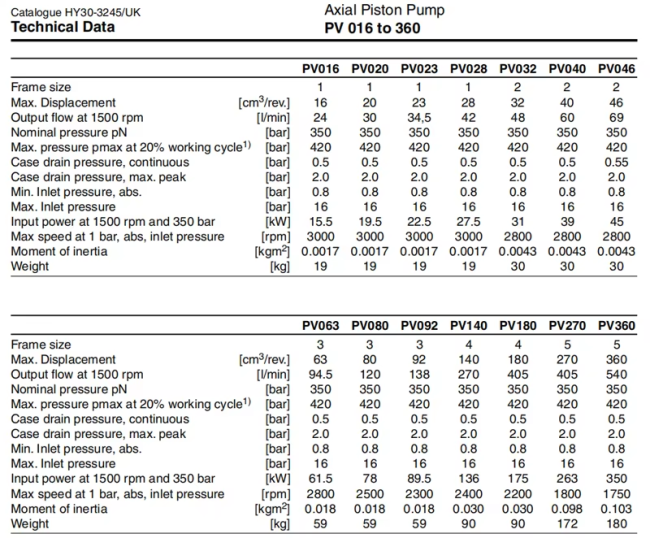

Main Technical Parameters

• Type: Axial Variable Displacement Piston Pump
• Working Pressure: High-rated pressure, strong load-bearing capacity
• Displacement: Multiple displacement specifications for selection
• Rotation Direction: Standard clockwise / counterclockwise optional
• Operating Medium: Standard hydraulic oil (mineral oil)
• Operating Temperature: -20℃ ~ +80℃
• Speed Range: Wide rated speed scope, stable running at different revolutions
• Mounting Form: Standard flange mounting, convenient assembly

• PV180R1K1T1NMMC
• PV180R1K1T1MFC
• PV180R1K1T1NMRC
• PV180R1K1T1NFPV
• PV180R1K1T1NELC
• PV180L1K1T1NMMC
• PV180L1K1T1MFC

Key Features

• High volumetric & mechanical efficiency, effectively reducing energy consumption and operational costs
• Wide pressure and displacement range, adaptable to diverse load and speed requirements
• Robust internal components, excellent wear resistance and impact resistance for harsh working environments
• Precise flow control, smooth operation with low noise and minimal vibration
• Compact and lightweight design, easy for installation, maintenance and system layout
• Multiple control options available to match different system control demands
• Superior temperature resistance, stable performance under continuous long-time operation

Application Fields

• Construction & engineering machinery
• Industrial automation production lines
• Material handling and lifting equipment
• Agricultural machinery
• General industrial hydraulic systems
• Special engineering equipment
