Rexroth Hydraulic Pump A10VO45DRG_31L-PSC62N00-SO13 A10VO45 A10VSO71 A10VSO100 A4VG A4VSO250 Buy Axial Hydraulic Piston Pump

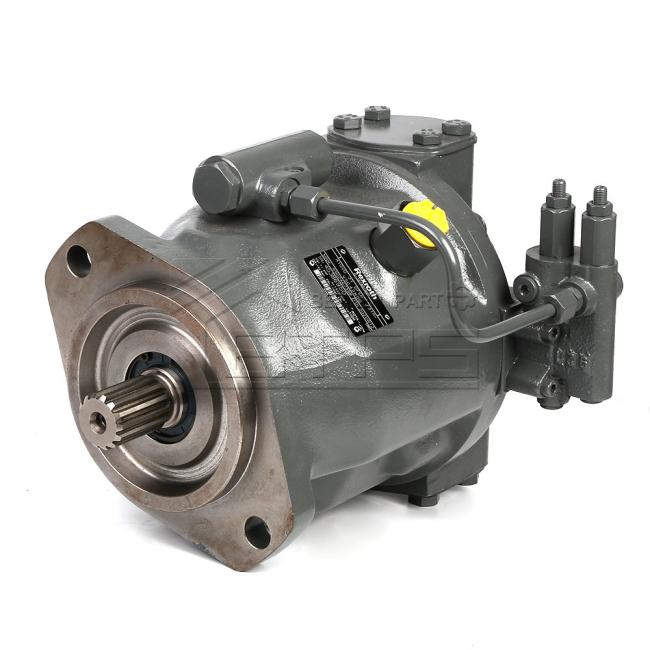

Axial piston variable pump A10VO series 31
Size 18 … 140
Nominal pressure 280 bar
Maximum pressure 350 bar
Open circuit
Features
Through drive for mounting of further pumps up to same nominal size
Low operating noise
Long service life
Controls with short response times
Excellent suction characteristics
2 drain ports
Swashplate design
|
Axial piston variable pump A10V(S)O
|
DISPLACEMENT:10/18/28/45/60/63/71/85/88/100/140/180
|
|||
|
SERIES: 31 / 32 / 52 / 53
|
||||
|
DISPLACEMENT CONTROL TYPE: DG / DR / DFR / DFR1 / DRG / ED / DFLR
|
||||
|
RATED PRESSURE:28Mpa(280 bar/4000PSI)
|
||||
Table of values
| Size | 18 | 28 | 45 | 71 | 88 | 100 | 140 | 45 | 71 | 100 | 140 | |||
| Version | Standard | High speed | ||||||||||||
| Displacement geometric, per revolution |
Vg max | cm³ | 18 | 28 | 45 | 71 | 88 | 100 | 140 | 45 | 71 | 100 | 140 | |
| Nominal pressure | pnom | bar | 280 | 280 | 280 | 280 | 280 | 280 | 280 | 280 | 280 | 280 | 280 | |
| Maximum pressure | pmax | bar | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | |
| Maximum speed 1) | at Vg max | nnom | rpm | 3300 | 3000 | 2600 | 2200 | 2100 | 2000 | 1800 | 3000 | 2550 | 2300 | 2050 |
| Flow | at Vg max and nnom | qV nom | l/min | 59 | 84 | 117 | 156 | 185 | 200 | 252 | 135 | 178 | 230 | 287 |
| at Vg max and n = 1500 rpm | qV 1500 | l/min | 27 | 42 | 68 | 107 | 132 | 150 | 210 | 68 | 107 | 150 | 210 | |
| Power | at qV nom and pnom | P | kW | 30 | 39 | 55 | 73 | 86 | 93 | 118 | 63 | 83 | 107 | 134 |
| at qV 1500 and pnom | P 1500 | kW | 12.6 | 20 | 32 | 50 | 62 | 70 | 98 | 32 | 50 | 70 | 98 | |
| Torque | at Vg max and pnom | M | Nm | 80 | 125 | 200 | 316 | 392 | 445 | 623 | 200 | 316 | 445 | 623 |
| Weight (approx.) | m | kg | 12.9 | 18 | 23.5 | 35.2 | 35.2 | 49.5 | 65.4 | 23.5 | 35.2 | 49.5 | 65.4 |
|
ABOUT US
BETTERPARTS is an enterprise specializing in research, development, manufacturing and after-sales hydraulic pump pressure brand products. Having been engaged in the injection molding machine/die-casting industry/hydraulic station/engineering machinery/hydraulic pump industry for many years, with rich industry experience, we have created a group of professional after-sales teams and won a good reputation in the hydraulic industry for the company.
The company has a team of talents with rich professional knowledge and practical experience, adhering to the principle of "customer first, high-quality service, and abiding by contracts". With high-quality products, good reputation, and high-quality service, the products are best-selling in nearly 30 provinces, cities, autonomous regions, as well as exported to countries such as Malaysia, India, Southeast Asia, Australia, etc. Sincerely cooperate with domestic and foreign merchants for win-win cooperation, common development, and create brilliance together!
We can supply Rexroth Hydraulic Piston Pump And Spare Parts
A10VSO45DFR1/31R-PPA12N00
A10VSO45DFR1/31R-PPA12K02
A10VSO45DFR/31R-PPA12N00
A10VSO45DFR/31R-PPA12K01
A10VSO45DFR/31R-PPA12K26
A10VSO45DFLR/31R-PPA12N00
A10VSO45DG/31R-PPA12N00
A10VSO45DRG/31R-PPA12N00
A10VSO45DFE1/31R-PPA12N00
A10VSO45FHD/31R-PPA12N00
