A7VO28 A7VO55 A7VO80 A7VO160 A7VO250 A7VO355 A7VO500 Hydraulic Piston Pump China for Rexroth Hydraulic Variable Piston Pump A7VO80LRH1/63R -NZB01
Price:
NIGOTIATION
MOQ:
1
Delivery Time:
7 days
Brand:
BTPS
Product Description

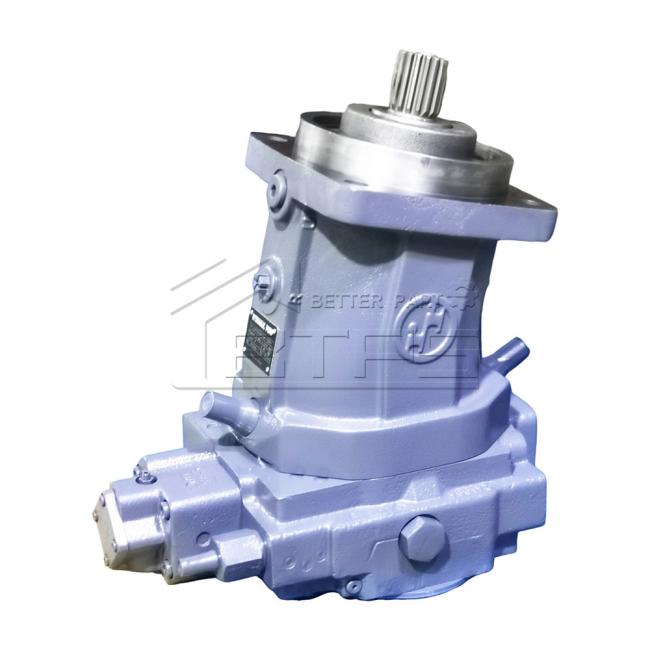

Psiton Pump Rexroth A7VO Hydraulic Pump A7VO28 A7VO55 A7VO80 A7VO107 A7VO160 A7VO250 A7VO355 A7VO500 Axial Piston Pumps for Sale
| Item | Specification |
|---|---|
| Structure | Bent-axis axial tapered piston variable pump, open circuit |
| Displacement Sizes (Vg max) | 28,55,80,107,160,250,355,500 cm³/rev |
| Nominal Pressure | 350 bar |
| Peak Pressure | 400 bar |
| Control Types | LR, LRD, LRDH, LRH, DR, DRG, DRS, HD1, HD2, EP, EPG |
| Rotation Direction | Clockwise / Counter-clockwise |
| Mounting Form | Flange mount, multi-position installation |
| Working Medium | Mineral hydraulic oil, fire-resistant hydraulic fluid (custom seal) |
| Operating Temperature | -20℃ ~ +80℃ |
| Housing Max Pressure | ≤6 bar |
Product Overview
Displacement frame sizes cover 28 / 55 / 80 / 107 / 160 / 250 / 355 / 500 cm³/rev, equipped with complete control modules including constant power control, pressure cut-off control, hydraulic pilot control and proportional electric control to match all complex load working conditions. The compact housing allows multi-position installation, side/rear port options for narrow engine compartment layout, low moment of inertia to reduce startup shock and energy consumption.
- Underground coal mine heading machine hydraulic pump: A7VO160LRD/63R-PZB01V
- Coal mine transport scraper auxiliary drive pump: A7VO250LRD/63R-PZB01V
- Metal mine underground loader main pump: A7VO160DRG/63L-DZB01
- Mining drill jumbo rotation & feed pump: A7VO80LRGH1/63R-NZB01
- Mine hydraulic support test bench power pump: A7VO355DR/63R-VPH01
Each pump is supplied with exclusive original R material number for full interchangeability with OEM equipment. Provide below info for accurate quotation:
- Complete pump model (e.g. A7VO107DRS/63L-NZB01-S)
- Corresponding R part number
- Rotation direction, shaft spline specification
- Control mode and pressure setting
- Application machine model
