Hot Sale 4WRZ32W8-520-7X/6EG24N9ETK4/M Proportional Directional Control Valve 4WRZ10 4WRZ16 4WRZ25 4WRZ32 Hydraulic Valve
Price:
Negotiation
MOQ:
1
Delivery Time:
5 work days
Brand:
BTPS/Rexroth
Product Description

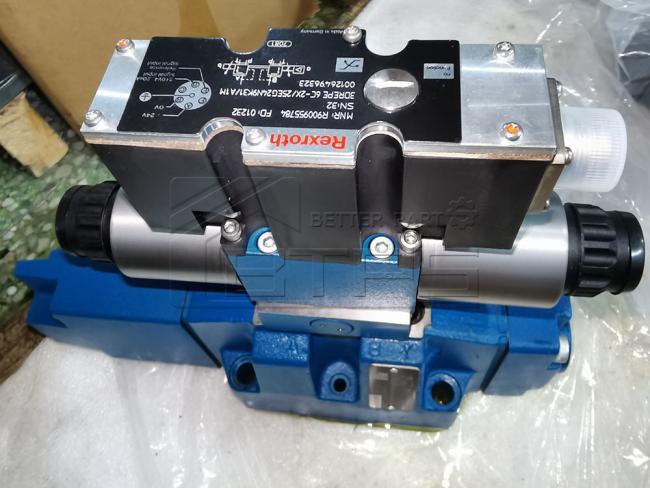

Hot Sale 4WRZ32W8-520-7X/6EG24N9ETK4/M Proportional Directional Control Valve 4WRZ10 4WRZ16 4WRZ25 4WRZ32 Hydraulic Valve
Product Overview
Two sub-types are available:
- 4WRZ: Without integrated OBE electronics, matched with external proportional amplifier
- 4WRZE: Built-in integrated drive electronics (OBE), simplified wiring, plug-and-play analog control
The valve precisely regulates both flow direction and volumetric flow proportional to electrical input signal, featuring low hysteresis, high repeat accuracy and stable dynamic response, widely applied in large-flow precision hydraulic equipment.
| Item | Specification |
|---|---|
| Series Version | 7X |
| Sizes | NG10, NG16, NG25, NG32, NG52 |
| Max Working Pressure (P/A/B) | 350 bar |
| Max Return Pressure (T Port) | 3~150 bar (depends on pilot circuit mode) |
| Max Rated Flow | NG10:85L/min; NG16:150L/min; NG25:325L/min; NG32:520L/min; NG52:2800L/min |
| Control Signal | 0–10V analog voltage / 4–20mA current |
| Solenoid Voltage | 24VDC standard, 12VDC optional |
| Hysteresis | ≤6% |
| Repeatability | ≤3% |
| Hydraulic Fluid | Mineral oil HLP/HL, phosphate ester HFD-R |
| Fluid Temperature | -20℃ ~ +70℃ |
| Viscosity Range | 20–380 mm²/s |
| Ambient Temp | -20℃ ~ +60℃ |
| Protection Class | IP65 (mated electrical plug) |
| Installation Position | Any angle, horizontal mounting recommended |
Application Industries
- Injection molding machines, die casting machines
- Hydraulic metal presses, bending & shearing equipment
- Mining machinery, construction heavy equipment hydraulic systems
- Metallurgical rolling mill, steel production line
- Marine hydraulic power unit, offshore machinery
- Automated production line large-flow servo hydraulic systems
- R901226730 | 4WRZ10E1-25-7X/6EG24N9EK4/D3M
- R900976118 | 4WRZ10E1-25-7X/6EG24N9ETK4/D3M
- R900959729 | 4WRZ10E1-25-7X/6EG24N9ETK4/D3V
- R900973002 | 4WRZ10W6-50-7X/6EG24N9K4/D3M
- R900939922 | 4WRZE10W6-50-7X/6EG24N9K31/F1D3V
- R900730929 | 4WRZE10W8-85-7X/6EG24N9ETK31/A1M
- R900979517 | 4WRZE10W8-85-7X/6EG24N9ETK31/A1D3M
- R900750556 | 4WRZE10W8-85-7X/6EG24N9EK31/F1D3M
- R900724781 | 4WRZE10W8-85-7X/6EG24N9ETK31/F1D3M
