Single Slot 201 304 316 Stainless Steel Welded Tube Double Groove Round Square Rectangular Oval Inox Special Shaped
Round Square Rectangular Oval Inox Special-Shaped Single Slot Tube 201 304 316 Double Groove Stainless Steel Welded Pipe
Product Description:
Round Square Rectangular Oval Inox Special-Shaped Tube 201 304 316 Single Double
Groove Stainless Steel Welded Pipe is a type of stainless steel pipe that is designed with a
single or double groove. The pipe is made from stainless steel, which is a durable and
corrosion resistant material.Stainless Steel Groove Pipe is available in a variety of sizes and
shapes, including round, square, rectangular, and oval. It is also available in a variety of
grades, including 201, 304, and 316. The grade of the pipe determines its strength and
resistance to corrosion. The grade also affects the cost of the Stainless Steel Groove Pipe,
with higher grade being more expensive.Stainless Steel Groove Pipe is also available in a
variety of finishes, including brushed, polished, and PVD Color. The finish of the pipe affects
its appearance, as well as its ability to resist corrosion. The pipe is also available in a variety
of thicknesses, allowing it to be used in a variety of applications.
Product Advantage:
1. Selected raw materials: Check whether the material composition of the raw materials
meets the standard, the hardness, the panel is neat, and the thickness is uniform and
accurate; the raw materials must use high-quality steel strips with smooth surfaces, no
peeling, no blisters, and no scratches
2. Quality assurance: solid and practical, long service life, do a good job of quality problems
from the source, strong bearing capacity, choose good materials
3. Sufficient supply: source manufacturers, rich in variety, fast delivery, spot supply, stable
production line
4. Precision detection: detection of thickness tolerance, length tolerance, bending degree,
twisting degree
5. Stable production: perfect equipment, using industry standard manufacturing process, can
meet the production needs of various stainless steel pipes
6. Processing customization: 15 years of industry sales experience, product processing
customization, drawing and sample customization, the product is strong and easy to use.
Specifications:
| Description |
Tube En Inox;Tig Welded Stainless Steel Pipe;Stainless steel tubes for |
|||
| Material Grade | AISI201/AISI301/ SUS304/ AISI316L/ AISI410 | |||
| Standard |
ASTM A554/JIS G3446 /CNS 5802 /EN 10217-7/EN 10296-2,EN 10305-2, |
|||
| SS Round Single Slot Pipe | Slot(WxH) | OD(mm) | WT(mm) | Glass Thickness |
| 14mmx14mm | 25.4 | 1.0-1.5 | 5-12mm | |
| 15mmx15mm,23.5mmx13mm | 38.1 | 1.0-1.5 | 5-12mm | |
| 15mmx20mm,15mmx15mm,20mmx20mm, 24mmx24mm | 42.4 | 1.0-1.5 | 5-12mm | |
| 19.7mmx31.8mm,24mmx24mm,27mmx30mm | 48.3 | 1.0-1.5 | 5-12mm | |
| 15mmx15mm,27mmx30mm,13.8mmx15mm | 50.8 | 1.2-2.0 | 5-12mm | |
| 20mmx20mm,25mmx25mm,25mmx40mm, 15mmx15mm | 60.3 | 1.2-2.0 | 5-12mm | |
| 25mmx25mm,38mmx45mm | 76.2 | 1.2-2.0 | 5-12mm | |
| SS Round Double Slot Pipe | Slot(WxH) | OD(mm) | WT(mm) | Glass Thickness |
| (15mmx15mm)+(15mmx15mm) | 50.8 | 1.0-1.5 | 5-12mm | |
| (25mmx55mm)+(25mmx55mm) | 60.3 | 1.0-1.5 | 8-22mm | |
| (25mmx25mm)+(25mmx25mm) | 76.2 | 1.0-1.5 | 8-22mm | |
| SS Oval Single Slot Pipe | Slot(WxH) | OD(mm) | WT(mm) | Glass Thickness |
| 15mmx20mm,15mmx15mm | 60x40 | 1.0-1.5 | 8-12mm | |
| 26mmx17mm | 70x35 | 1.0-1.5 | 8-22mm | |
| 20mmx20mm,24mmx24mm,33mmx26mm | 80x40 | 1.0-1.5 | 8-22mm | |
| 40mmx20mm | 86x58 | 1.0-1.5 | 8-22mm | |
| 25mmx25mm | 87x65 | 1.0-1.5 | 8-22mm | |
| 45mmx40mm | 100x52 | 1.0-1.5 | 8-22mm | |
| 33mmx26mm | 110x40 | 1.0-1.5 | 8-22mm | |
| SS Square / Rectangular Double slot Pipe | Slot(WxH) | Size(mm) | WT(mm) | Glass Thickness |
| (15mmx15mm)+(15mmx15mm) | 40x40 | 1.0-1.5 | 5-12mm | |
| (15mmx15mm)+(15mmx15mm), (25.5mmx32mm)+(25.5mmx32mm) |
50x50 | 1.0-1.5 | 5-12mm | |
| (25mmx25mm)+(25mmx25mm) | 60x60 | 1.0-1.5 | 8-22mm | |
| (25mmx13mm)+(25mmx20mm) | 85x40 | 1.0-1.5 | 8-22mm | |
| SS Square / Rectangular Single Slot Pipe | Slot(WxH) | Size(mm) | WT(mm) | Glass Thickness |
| 5mmx8mm | 19x19 | 1.0-1.5 | 5-12mm | |
| 15mmx15mm | 30x30 | 1.0-1.5 | 5-12mm | |
| 15mmx15mm | 31.8x31.8 | 1.0-1.5 | 5-12mm | |
| 15mmx15mm | 38x38 | 1.0-1.5 | 5-12mm | |
| 15mmx15mm,20mmx20mm | 40x40 | 1.0-1.5 | 5-12mm | |
| 15mmx15mm | 40x60 | 1.0-1.5 | 5-12mm | |
| 15mmx15mm,20mmx20mm | 50x50 | 1.0-1.5 | 5-12mm | |
| 15mmx15mm,20mmx20mm | 50x25 | 1.0-1.5 | 8-22mm | |
| 25mmx25mm | 60x60 | 1.0-1.5 | 5-12mm | |
| Thickness |
0.3mm,0.4mm,0.5mm,0.6mm,0.7mm,0.8mm,0.9mm,1.0mm,1.2mm,1.5mm, |
|||
| Section Shape | Round Single Slot,Round Double Slot,Square/Rectangular Single slot, Square/Rectangular Double slot,Oval Single Slot. | |||
| Surface | 180G, 240G,320G,600G, 800G Mirror finished, Satin/Hairline 180G, 240G, 320G, 400G;TITANIUM FINISHED etc. | |||
| Length | 1m,2.5m,3m,5.85m,6m,6.1m,7m,length can be customized. | |||
| Application | Building Handrail,Railing,Door construction,decoration, Furniture, Fence, Industry,food industry for tube transfer or to make other fittings. Commercial Tubing,Instrumentation Tubing, Petroleum, oil and gasboiler etc. | |||

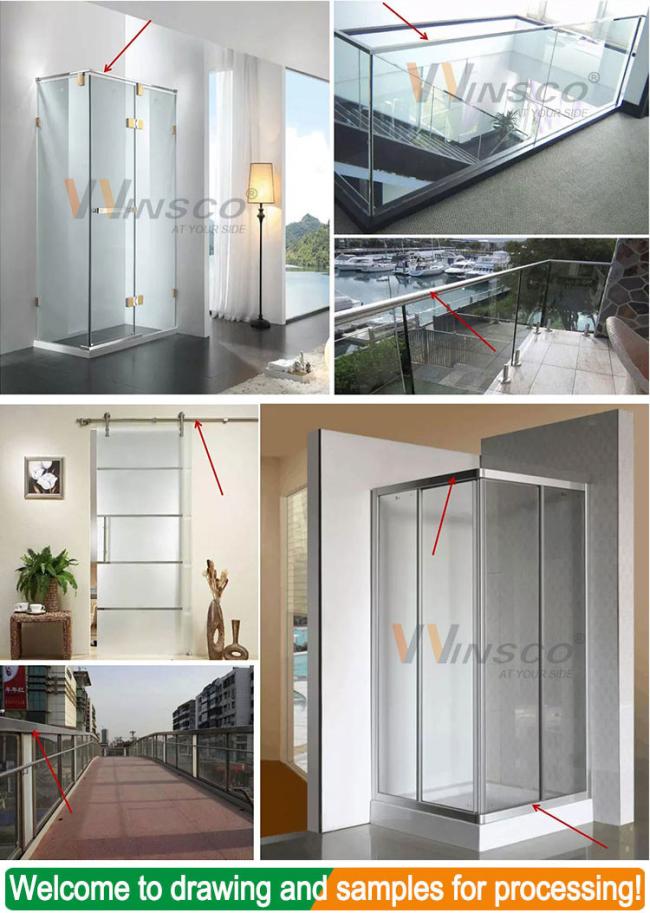

Application:
The most common application of Round Square Rectangular Oval Inox Special-Shaped
Tube 201 304 316 Single Double Groove Stainless Steel Welded Pipe is in the construction
of structural components. This type of pipe is ideal for use in areas where a high level of
strength and durability is needed, such as in bridges, buildings, stair handrail,fence guardrail,
shopping mall glass railing,and other large structures. It is also commonly used in the
manufacturing of industrial equipment. This type of pipe is often used in the production of
machinery and equipment that require a high level of strength and durability, such as pumps,
valves, and other components.It is also used in the construction of residential projects. This
type of pipe is ideal for use in areas where a high level of strength and durability is needed,
such as in decks, patios, and other outdoor structures.
