Functional FEP Cable NTC Chip Thermistor for Automotive Parts Ip64

Brief Instruction:
FEP cable NTC thermistor consist of FEP wire, NTC chip and epoxy resin. Its features: simple, functional and good accuracy. Its optional resistance value range 0.3kΩ to 2000kΩ, and beta value range 2500K to 1500K. These FEP cable NTC thermistors be widely used for home appliance, automotive, medical equipment, power tool etc.

Features:
Comply for RoHS standard
Miniature designed
Good interchangeable
Wide Operating temperature range: -40℃~150℃

Application:
Home appliance
Automotive parts such as battery, water temperature measurement
Power tool
Temperature monitoring, temperature measurement, temperature compensation

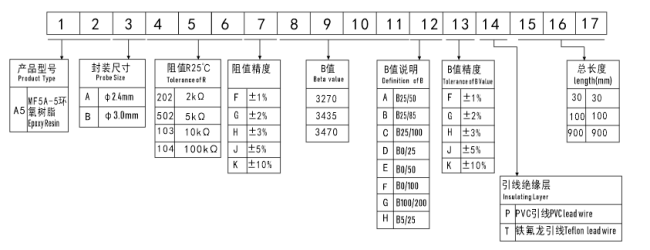

Part Number Code:

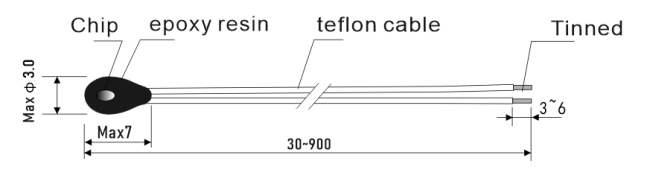

Structure and Dimensions:(unit:mm)



Electrical specification:

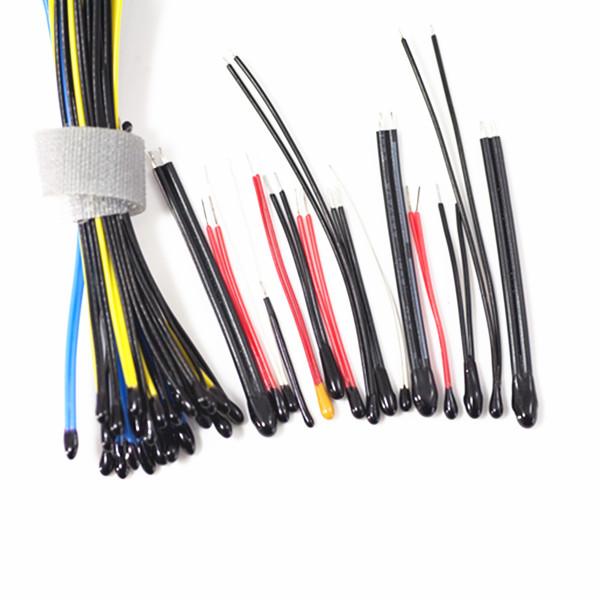

Product picture:







Standard packing (inner packing): 500pcs/polybag

Operation Notice

1.Application:Temperature measure and control；　

2.The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.

3.Avoid excessive heat shock,The hot air blow should beat least 30mm to the probe in case heat shrink protection tube need to be attached.

4.Storage Temperature -10℃～40℃,≤75%RH；Avoid in a corrosive gas and sunlit environment; After opening the package, it needs to be sealed again.
