Product Description
Fast Response Film Type Ntc Thermistor For Home Appliances And Battery
Brief Instruction:
Film type NTC thermistor is composed of NTC chip, phos-bronze bracket and polyimide film. Its thickness is around 0.60mm. It’s one type of surface mounted ntc thermistor sensor, with fast response time.
Features:
Thin film type
Thin, fast response time
Operating temperature range: -40℃~100℃
Application:
Home appliances, computer, printer, Battery pack

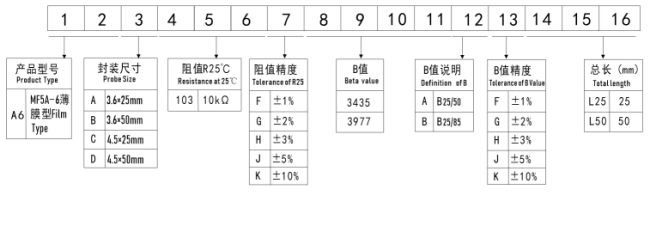

Part Number Code:

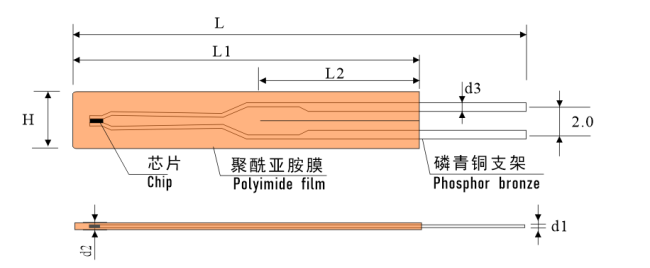

Structure and Dimensions:
Electrical specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Approx.2.5 | Approx.20 | -40~100 | 25-50 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

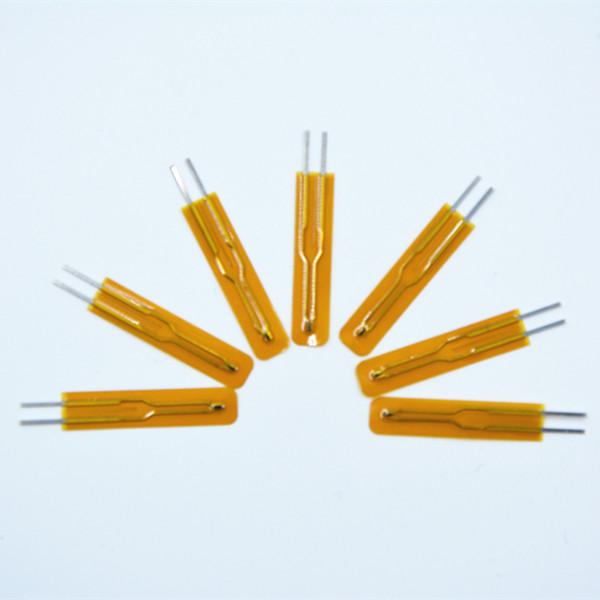

Product picture/images:
Film type NTC thermistor
