Glass Coating Diode Ntc Thermistor For Home Appliance Industry And Automobile
Glass Coating Diode Ntc Thermistor For Home Appliance, Industry And Antomobile
Brief Instruction:
MF58 series glass bead temperature sensor,As one NTC thermistor sensor, glass coating NTC thermistor is made of glass bead, thinner dumet wire. Its feature is high temperature resistance. Glass coating NTC thermistor be widely apply for automotive electronic, house appliances, industrial device etc.
Features:
Glass encapsulation
High temperature resistant
Operating temperature range: -40℃~250℃
Application:
Home appliance
Automotive electronic
Industrial device etc

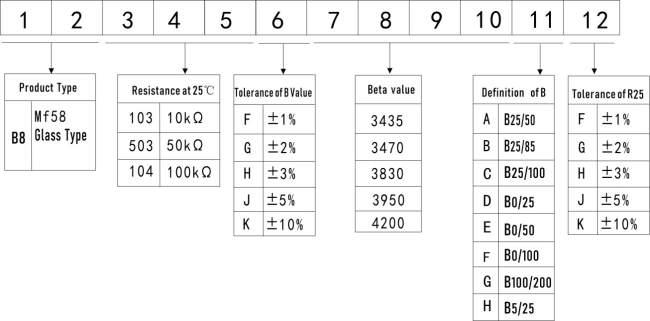

Part Number Code:
| Product Specification | Rec.at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
thermaltime constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| B8202□3470A | 2 | B25/85=3470 | Approx.20 | Approx.1.0 | Max.15 | -40~250 | 60 |
| B8202□3830A | 2 | B25/85=3977 | |||||
| B8103□3470A | 5 | B25/50=3470 | |||||
| B8502□3950A | 5 | B25/85=3950 | |||||
| B8103□3435B | 10 | B25/85=3435 | |||||
| B8103□3470A | 10 | B25/50=3470 | |||||
| B8103□3580A | 10 | B25/50=3580 | |||||
| B8103□3630B | 10 | B25/50=3950 | |||||
| B8103□3950A | 10 | B25/50=3950 | |||||
| B8103□3977B | 10 | B25/50=3950 | |||||
| B8503□3950A | 50 | B25/50=3950 | |||||
| B8104□3950A | 100 | B25/50=3950 | |||||
| B8104□3990A | 100 | B25/50=3990 | |||||
| B8104□4132B | 100 | B25/85=4132 | |||||
| B8104□4200A | 100 | B25/50=4200 | |||||
| B8200R102□4537G | R200℃=1 | B100/200=4537 |
For example: B8103F3435BF: MF58 series NTC thermistor, R25℃=10kΩ±1%, B25/85=3435k±1%;

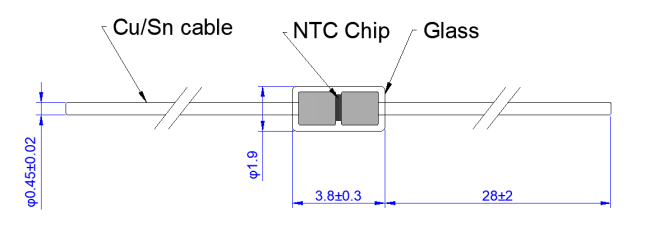

Structure and Dimensions:

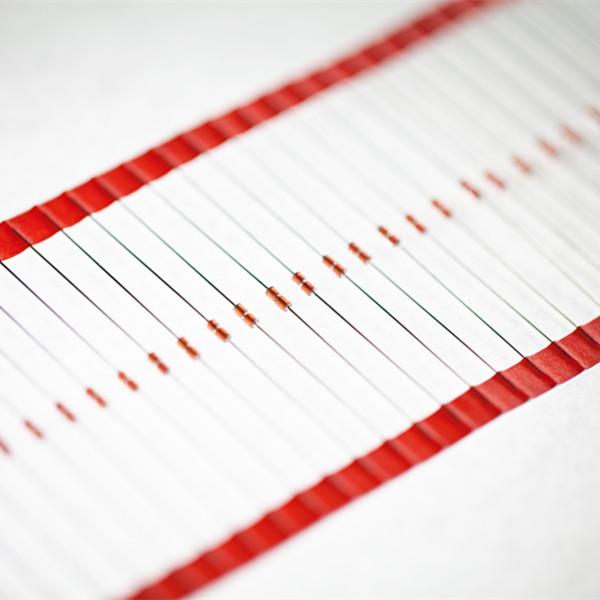

Product picture/images:
Standard packing (inner packing): 500pcs/polybag
Operation Notice
1.The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.
2.Avoid excessive heat shock,The hot air blow should beat least 30mm to the probe in case heat shrink protection tube need to be attached.
