Brief Instruction:
MFT series cylindrical shell temperature probe by Hefei Jingpu Sensor Technology Co., LTD. It consists of leads (PVC insulated wire, FEP insulated wire, crosslinked polyethylene insulated wire), NTC resistors, cylindrical housing (stainless steel pipe, copper pipe and plastic housing) and connectors. The optional resistance ranges from 0.3 kω to 2000 kω, and the beta ranges from 2500K to 4500K. Cylindrical shell temperature probe is widely used in air conditioning, refrigerators, industrial intelligent controller and other household appliances.
Features:
Meets ROHS standards
PVC insulated lead wires series Operating temperature range: -20℃~105℃
FEP insulated lead wires series Operating temperature range: -40℃~150℃
Application:
Household appliances (A/C, refrigerator etc)
Industrial intelligent controller

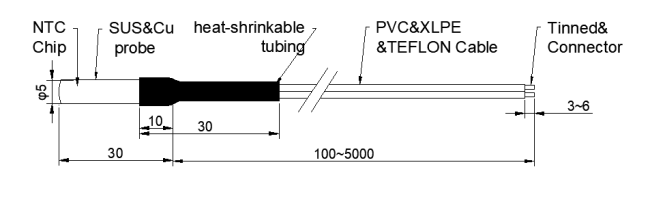

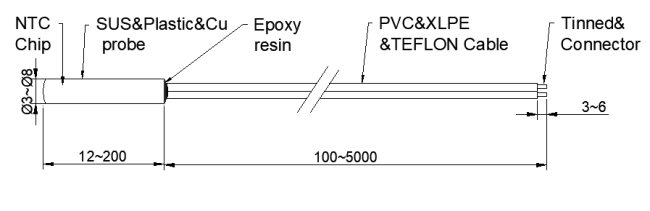

Structure and Dimensions:
Electrical specification:
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -40℃~125℃ | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

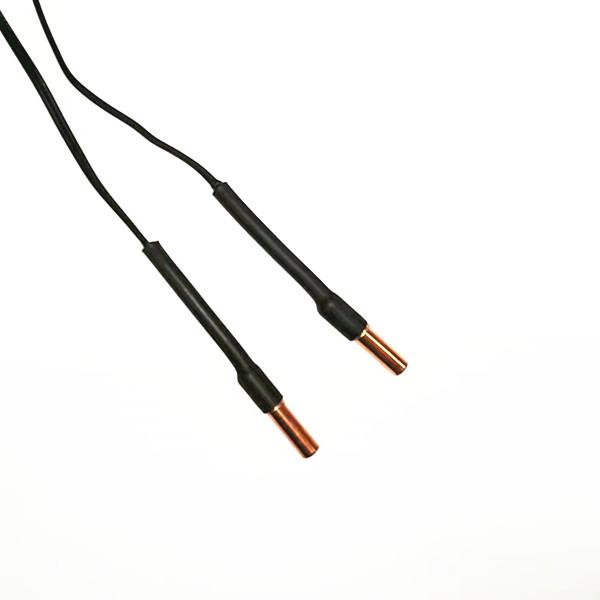

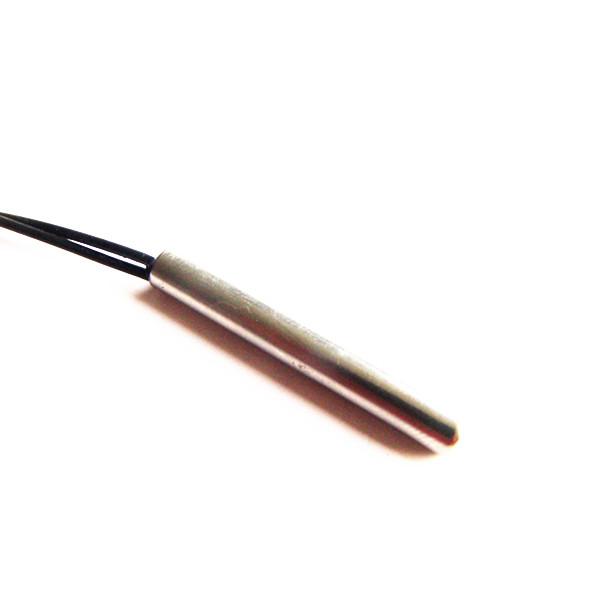

Product picture:
Standard packing (inner packing): 1pcs~100pcs/polybag
