Super Long Stainless Steel Probe Temperature Sensor For Industrial Control
Super Long Stainless Steel Probe Temperature Sensor For Industrial Control
Brief Instruction:
It consists of lead wires (PVC insulated wire, FEP insulated wire, XLPE insulated wire), NTC resistor, cylindrical housing ( stainless steel tube, copper tube and plastic housing) and connector. R25=10KΩ±1%,B25/50=3950k±1%(The optional resistance value range from 0.3kΩ to 2000kΩ, and beta value range from 2500K to 4500K).
Features:
Comply for RoHS standard
PVC insulated lead wires series
Operating temperature range: -20℃~105℃
FEP insulated lead wires series
Operating temperature range: -40℃~150℃
SUSφ5*200mm
Application:
Industrial intelligent controller
Industrial control

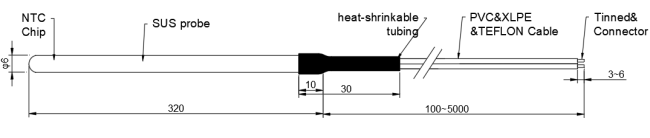

Structure and Dimensions:
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -40℃~125℃ | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
custom
Have professional industrial control equipment, tailored for every customer
process
Fine processing technology, products show clear texture, durable! Non - standard specifications can be customized
The material
Most products are made of 304 stainless steel, with high density, waterproof, high temperature resistance, corrosion resistance, durable and other characteristics
