Disposable Human Body Temperature Probe For Adult Medical Monitors
Disposable Human Body Temperature Probe With Scale For Medical Monitors For Adult
Brief Instruction:
This project is a disposable medical temperature sensor. It is a body cavity temperature probe for adults, and the modified series also has a temperature sensor for children's body cavity. Resistance value 2.252 kΩ. The temperature tolerance is (25℃~45℃)±0.1℃. It can be replaced by YSI400 series products.
Features:
Disposable
PVC sleeve
Probe with calibration
Disposable Tolerance(25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
9Fr(OD3.0)
Application:
It can be used in combination with the body monitor for continuous monitoring of the patient's body temperature in ICU, emergency room and operating room

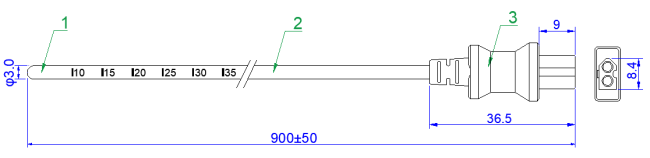

Structure and Dimensions:(Unit:mm)
| NO | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Thermal Chip | 1 | / |
| 2 | Tube | PVCφ3.0 | 1 | white |
| 3 | Plug |
TPE(Type M2) Compatible with Molex 03-06-1023 |
1 | white |
