Brief Instruction:
The width of 10KΩ3435k Film type NTC Thermistor is 4.5mm, the total length of the product is 25mm, and the total thickness of the product is Max 0.6mm.
Features:
Thin film type
Thin, fast response time
Operating temperature range: -40℃~100℃
Alternative resistance values are available for precision:±1%,±2%,±3%,±5%
Application:
Home appliances, computer, printer, battery pack

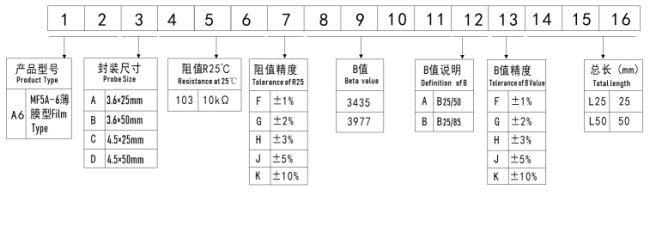

Part Number Code:

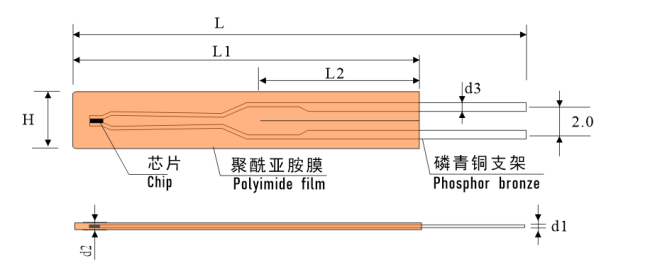

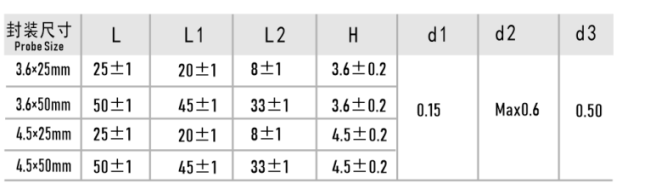

Structure and Dimensions:
Electrical specification:
| Product Specification | Rec. at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
Thermal time constant τ(sec.) |
| A6A103□3435B□□□□ | 10 | B25/85=3435 | Approx.3.5 | Approx.0.7 | Max.5.0 |
| A6A103□3977B□□□□ | 10 | B25/85=3977 | |||
| A6B203□3972B□□□□ | 20 | B25/85=3972 | |||
| A6B104□3435B□□□□ | 100 | B25/50=3950 | |||

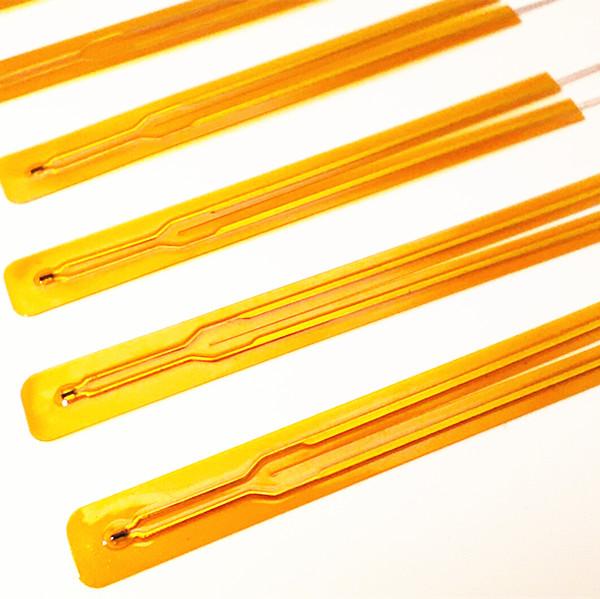

product picture/images:
