16Fr 2.252KΩ Human Body Cavity Temperature Probe for Adult patient
16Fr 2.252KΩ Human Body Cavity Temperature Probe For Adult Patient
Product Description:
A 16Fr human body cavity temperature probe refers to a medical device used to measure the temperature inside a body cavity. The "Fr" stands for French size, which is a unit of measurement for the diameter of medical instruments. In this case, 16Fr indicates the size of the probe.
The temperature probe is designed to be inserted into body cavities, such as the rectum, esophagus, or bladder, to accurately measure the internal temperature. It is commonly used in medical settings, including hospitals, clinics, and operating rooms.
The probe typically consists of a thin, flexible tube with a sensor at the tip that detects and transmits temperature readings. The measurements can help medical professionals monitor a patient's body temperature and make informed decisions regarding their care and treatment.
It's important to note that medical devices should be used under the guidance and supervision of trained healthcare professionals.
Features:
R25℃=2.252
B25/50=3935K
Length: 630±15mm (Can be customized)
Application:
16Fr 2.252KΩ Human Body Cavity Temperature Probe For Adult Patient is widely used to measure the human body cavity temperature of adult.
Structure and Dimensions:(Unit:mm)
Parameter Sheet:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | / | / | / | / | / |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

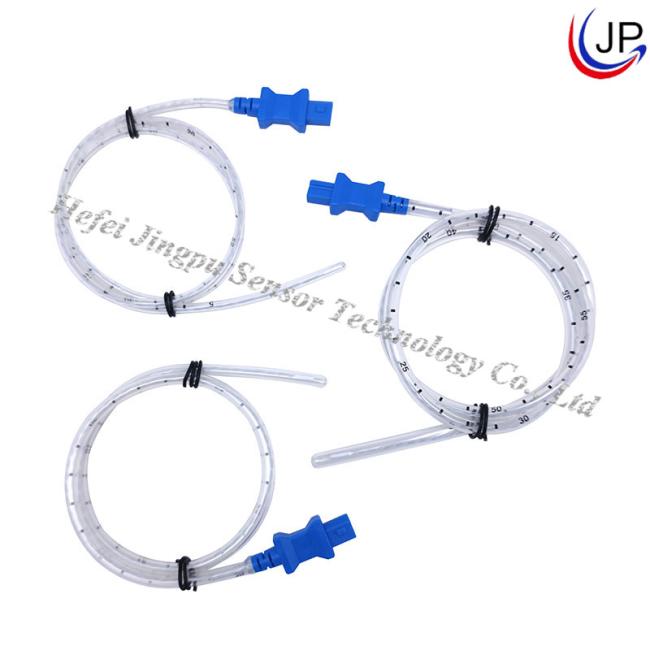

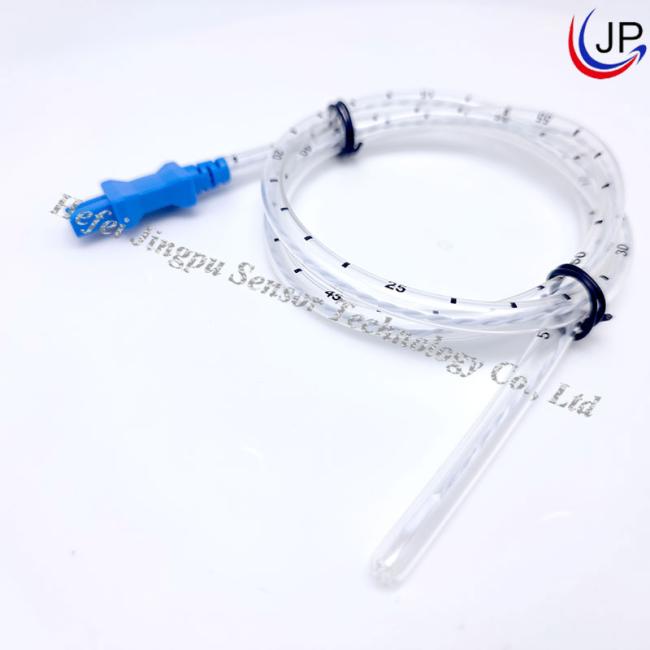

Product Images:
