NTC 3935 Disposable Temperature Sensor For Medical Monitors
NTC 3935 Disposable Temperature Sensor For Medical Monitors
Brief Introduction:
The item is one disposable medical temperature sensor, it’s divided into an adult human body cavity temperature probe and a child human body cavity temperature probe. The resistance value is 2.252KΩ. The temperature tolerance is within ±0.1℃. It is compatible with the YSI400 series product instead. The following item is a human body cavity medical temperature probe.
Features:
PVC sleeve
DisposableTolerance(25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
Application:
Applicable to Medical monitors

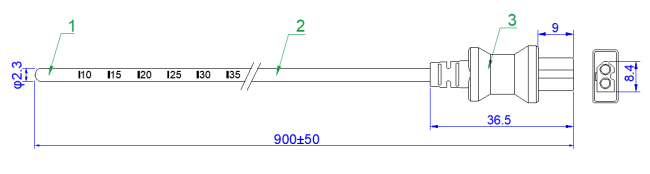

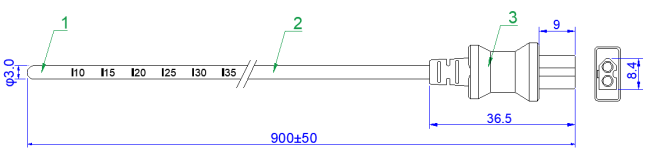

Structure and Dimensions:(Unit: mm)
Specification Chart:
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Thermal Chip | 1 | / |
| 2 | Tube | PVCφ2.3 φ3.0 | 1 | white |
| 3 | Plug |
TPE(Type M2) Compatible with Molex 03-06-1023 |
1 | white |
Electrical Specification:
| Item | Code | Test condition | Performance requirements | Unit |
| (Rated resistance) | R25℃ | +25℃±0.02℃ | 2.252 | kΩ |
| (B value) | B25/50 | +25℃±0.02℃, +50℃±0.02℃ | 3935 | K |
| (Response time) | τ | 23℃(air)→44℃(water),≤±0.1℃ | ≤150 | S |
| (Max.Energy Dissipation) | Pmax | In water(≤1.2mA),≤0.02℃ | Approx 50 | μW |
| (Withstand voltage) | Hi-pot | AC750V 1mA 1s In still air | No break down | V |
| (Operating Temp. Range) | OTR | In still air | 0～50 | ℃ |
