R25 100ohm Glass Bead Thermistor
Price:
To be Negotiated
MOQ:
1000 Pieces
Delivery Time:
2 Weeks
Brand:
JP SENSOR
Product Description
R25 100ohm Glass Bead Thermistor
Brief Introduction:
As one NTC thermistor sensor, glass coating NTC thermistor is made of glass bead, thinner dumet wire. Its feature is high temperature resistance. Glass coating NTC thermistor is widely applied for automotic electronics, home appliances, industrial devices, etc.
Features:
glass encapsulation
high temperature resistant
Operating temperature range: -40℃~300℃
R25=100KΩ±1%,B25/50=3950±1%
Glass probe 1.3mm
Application:
home appliances
automotive electronics
Industrial devices, and so on.

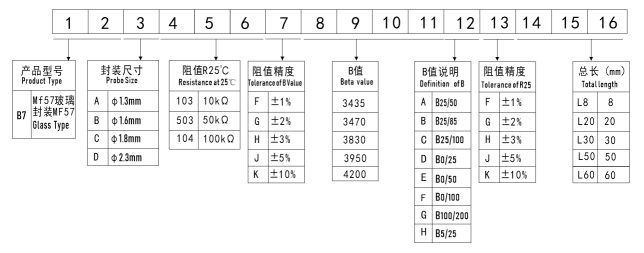

Part Number Code:
Structure and Dimensions:
Electrical Specification:
| Rec. at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 2 | B25/85=3470 | Approx.20 | Approx.0.75 | Max.10 | -40~300 | 50 |
| 2 | B25/85=3977 | |||||
| 5 | B25/85=3950 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 100 | B25/50=3950 | |||||
| 100 | B25/85=4132 | |||||
| 100 | B25/50=4200 |
