47Kohm 3950k NTC Chip Thermistor For Medical Equipment Batteries
Price:
Negotiable
MOQ:
1000 Pieces
Delivery Time:
2 Weeks
Brand:
JP SENSOR
Product Description
47Kohm 3950k NTC Chip Thermistor For Medical Equipment Batteries
Product Description:
47KΩ 3950k NTC Thermal chip is widely used, and it is generally used in home appliances, medical equipment, batteries, etc. Its resistance accuracy can be divided by ±0.5%, ±1%, ±2%, ±3%, and ±5%.
Features:
Comply with RoHS standard
Silver electrode
Small dimension
Stable
Soldering resistant
Good replaceability
Application:
It is used to produce NTC thermistors and temperature sensors.

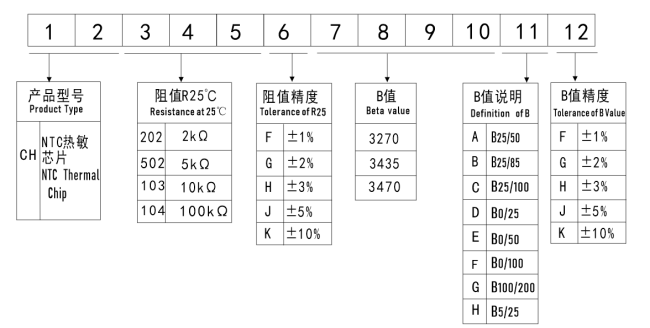

Part Number Code:

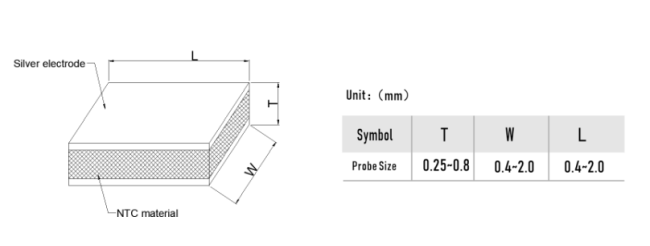

Structure and Dimensions:
Electrical Specification:
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | / | / | / | / | / |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
