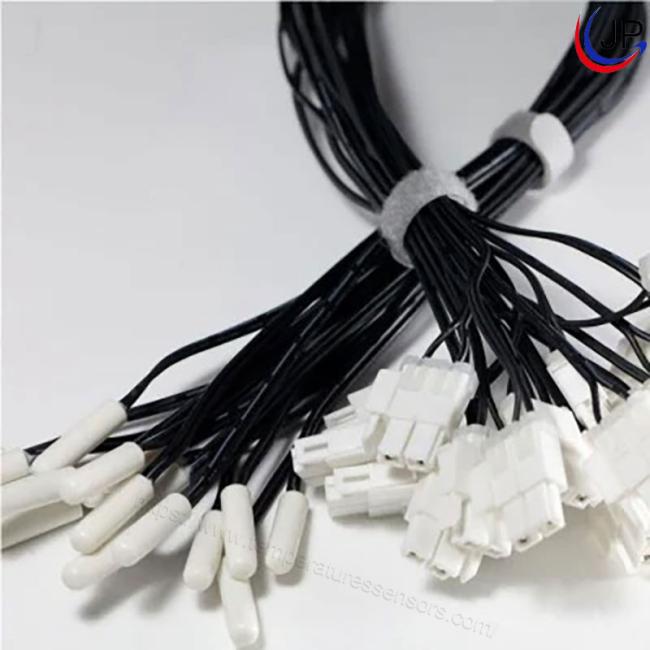

100KOhm 4200K 3.9mm 25mm Thin Film Thermistor For Battery Pack
Price:
Negotiable
MOQ:
5000 Pieces
Delivery Time:
2 Weeks
Brand:
JP SENSOR
Product Description
100KOhm 4200K 3.9mm 25mm Thin Film Thermistor For Battery Pack
Brief Introduction:
The width of the film is 3.9mm, Total length is 25mm
Features:
Operating temperature range: -40℃~100℃
Film width: 3.9mm,Total length: 25mm
Application:
Printer, Battery pack
Part Number Code:
Structure and Dimensions:
Electrical Specification:
| Product Specification | Rec. at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| A6A103□3435B□□□□ | 10 | B25/85=3435 | Approx.3.5 | Approx.0.7 | Max.5.0 | -40~100 | 25~50 |
| A6A103□3977B□□□□ | 10 | B25/85=3977 | 25~50 | ||||
| A6B203□3972B□□□□ | 20 | B25/85=3972 | 25~50 | ||||
| A6B104□3435B□□□□ | 100 | B25/50=3950 | 25~50 |
