Product Description
Clay Brick Making Machine Automatic High Efficiency for Sale | Industrial Use
2025 Hot Sale Clay Brick Making Machine - Low Cost & High Output
Equipment Introduction :

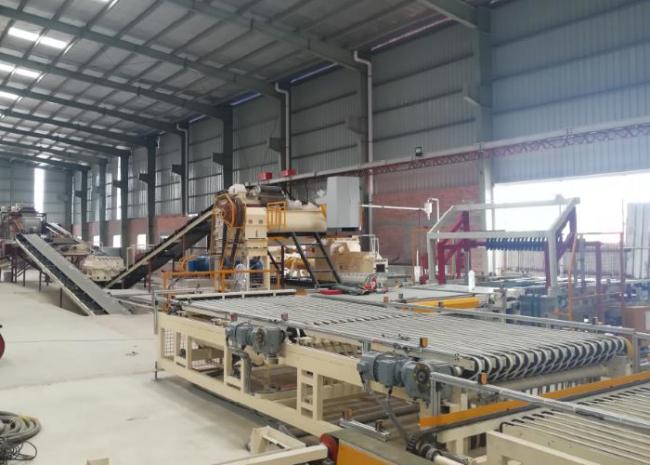

This machine is suitable for continuous extrusion of wet clay and serves as a key functional equipment in the molding section of the brick production line. The mud bar extruded by this equipment features a smooth and compact surface, excellent quality, large extrusion output, easy operation, stable running and high reliability.
It can produce various types of bricks, including solid bricks, hollow bricks, porous bricks and hollow blocks. The machine is composed of three parts: upper mixing part, vacuuming part and lower extruding part.
Clay brick making line machine vacuum extruder of technical datas:
| No. | Model | EV50A |
| 1 | Code | IBS062-0205 |
| 2 | Production capacity | 10,000-13,000pcs/h(250*110*75mm) |
| 3 | Extrusion pressure | ≤3.0Mpa |
| 4 | Vacuum degree | ≤-0.092 |
| 5 | Rotate speed of extruding shaft | 25rpm |
| 6 | Diameter of reamer |
Material transporting part :500mm Extruding part :450mm |
| 7 | Vacuum pump | 2SK-6 |
| 8 | Reducer |
Upper stage:i=12.64 Lower stage :i=21.3 |
| 9 | Triangle belt |
Upper stage:5V-4600*6 Lower stage:5V4800*10 |
| 10 | Power | 160+55kw |
| 11 | Dimension |
Upper stage: 4,400*2,200*1,250mm Lower stage: 5,600*1,800*2,500mm |
| 12 | Weight | 17,500kg |
Key Features & Capabilities:
- Manufactures bricks and blocks in diverse sizes and specifications.
- Accommodates a wide range of raw materials, including clay, mud, soil, fly ash, shale, and more.
- Compatible with various drying systems: tunnel dryer, single-layer chamber dryer, high-speed rapid dryer.
- Supports multiple firing solutions: tunnel kiln and custom local kiln.
- Equipped with an integrated automatic brick stacking system.
- Features high-output brick molding machinery for complete production lines.
- Offers flexible fuel selection: coal, gas, oil, and other energy sources.
- Daily production capacity ranges from 50,000 to 100,000 bricks; higher output models available upon request.
