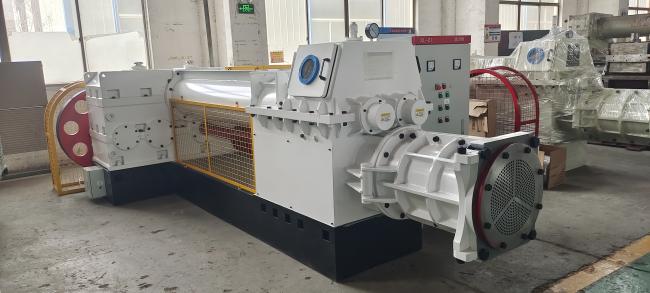

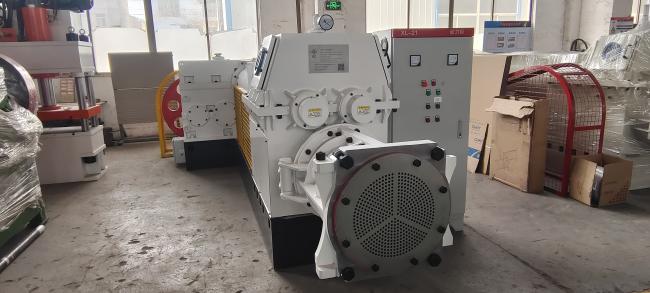

EV40 Clay Brick Making Machine Small Vacuum Extruder for Small Manual Clay Brick Plant

Price Negotiable
Price: Refer for price list
MOQ: 1 set
Delivery Time: 7 days
Brand: BBT
Product Description

EV40 Clay Brick Making Machine Small Vacuum Extruder for Small Manual Clay Brick Plant



BBT EV40 Small Vacuum Extruder | Professional Clay Brick Machine Manufacturer



EV40 Small Vacuum Extruder for Handmade Clay Brick Factory

The EV40 small vacuum extruder is a compact and cost-effective brick forming equipment independently produced by BBT factory. It is specially developed to meet the production demands of small-scale and manual clay brick workshops, featuring small size, easy operation and low running cost.

This mini two-stage vacuum extruder adopts mature extrusion technology. It can fully knead raw materials like clay and shale, remove internal air under stable vacuum condition, and extrude uniform mud strips. The finished handmade clay bricks own solid texture and regular shape, effectively reducing defective rate.
With reasonable power matching, the machine saves energy and consumes less power. Its compact structure occupies small workshop space, convenient for installation and daily maintenance. Simple operation mode fits manual brick production work, no complicated professional skills required.
Suitable for small brick factories with limited investment and output demand, the EV40 extruder stably delivers 4000-6000 standard bricks per hour. It is an ideal entry-level brick making machine for small local brick production projects.


EV40 Brick Vacuum Extruder of Technical Parameters:

Item Specification
Model EV40
Brand BBT
Hourly Output 4000-6000 pcs
Main Power 75kW
Auxiliary Power 37kW
Vacuum Degree -0.092MPa
Extrusion Pressure ≤3.2MPa
Reamer Diameter 400mm
Applicable Raw Material Clay, Shale
Machine Weight 8500kg
Overall Size 4200×3200×2300mm
Application Small manual clay brick plant



BBT EV40 Mini Extruder For Handmade Clay Brick Factory





BBT is a professional provider of full automatic clay brick making production lines and related equipment.

Our main products include:

TCNL series full steel chain box feeder

TWGD series double shaft mixer

GS series roller crusher

TRA series double tooth roller crusher

TWJH series front grid extruding mixer

TWPM series wet pan mill

QTQG series cutter

EV series vacuum extruder

Robot setting machine

Spare parts for brick making machinery

We also offer one-stop solutions for automatic clay brick production projects, covering project design, construction, and comprehensive technical support.
