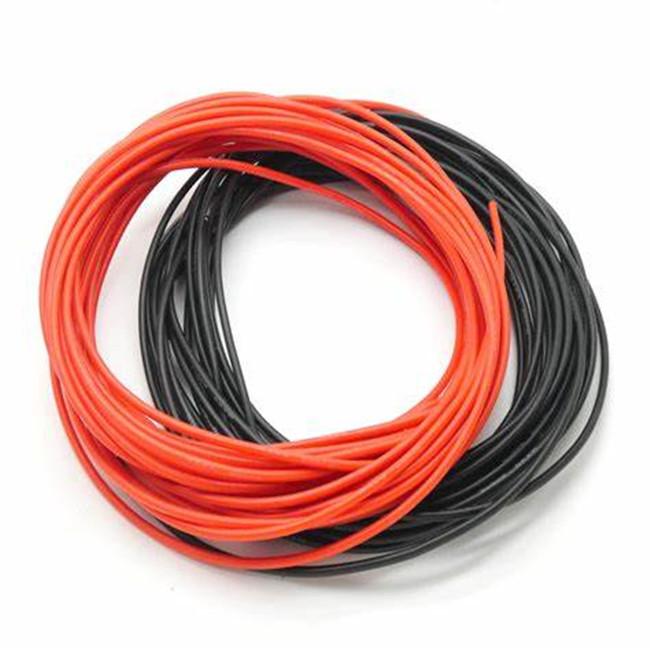

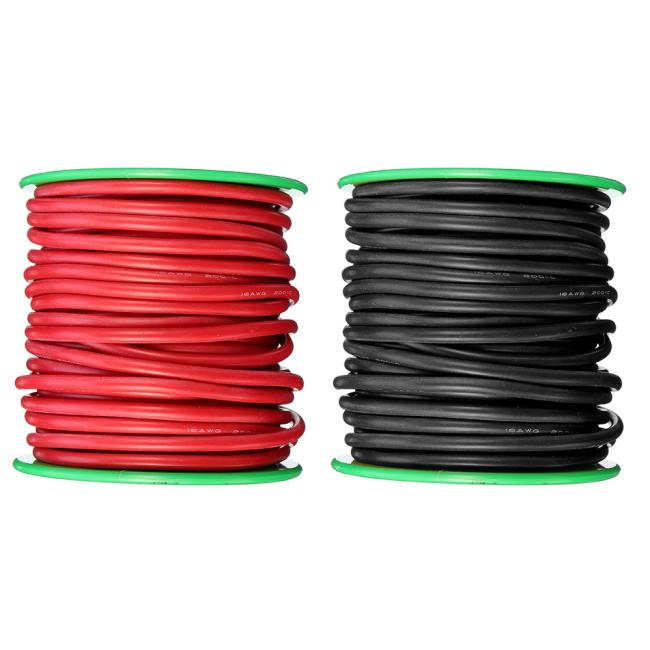

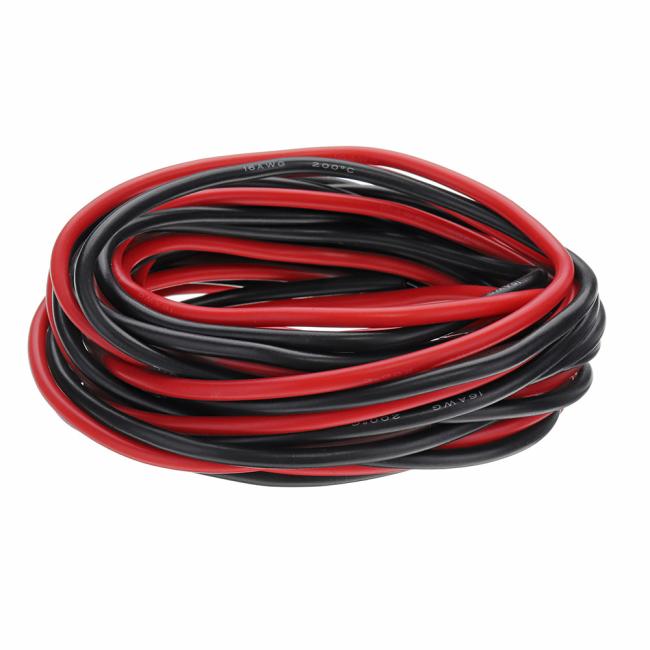

Insulated Copper Flexible Silicone Wire Cable 252/0.08 600V 16AWG Antiwear

Flexible Silicone Cable 252/ 0.08 16AWG copper insulator Wire 600V 200℃

You could buy full roll or buy meters

• Conductor			Iusulator		Rical Character	Sectional area	Carrying current	packing
  Spe (AWG)	Copper wire shares (compos.NO./mm)	Diameter (mm)	Jacket Thick (mm)	Overall diameter (mm)	Conductor resistance (Ohm/km)	Square millimeter(mm2)	(ampere)	(M/coils)
  30AWG	11/0.08	0.30	0.55	1.20	331.00	0.05	0.80	200.00
  28AWG	16/0.08	0.36	0.55	1.30	227.20	0.08	1.25	200.00
  26AWG	30/0.08	0.46	0.55	1.50	123.00	0.14	3.50	200.00
  24AWG	40/0.08	0.61	0.55	1.60	97.60	0.20	5.00	200.00
  22AWG	60/0.08	0.78	0.55	1.70	88.60	0.33	8.73	200.00
  20AWG	100/0.08	0.92	0.55	1.80	62.50	0.50	13.87	200.00
  18AWG	150/0.08	1.19	0.55	2.30	39.50	0.75	22.00	200.00
  17AWG	210/0.08	1.33	0.80	2.70	21.40	1.00	31.00	200.00
  16AWG	252/0.08	1.53	0.80	3.00	24.40	1.27	35.00	100.00
  15AWG	336/0.08	1.69	0.80	3.10	20.02	1.68	42.00	100.00
  14AWG	400/0.08	1.78	0.90	3.50	15.60	2.07	55.60	100.00
  13AWG	500/0.08	2.06	0.95	4.00	12.50	2.50	65.00	100.00
  12AWG	680/0.08	2.48	1.00	4.50	9.80	3.40	88.40	100.00
  11AWG	800/0.08	2.59	1.00	4.60	7.38	3.96	100.00	100.00
  10AWG	1050/0.08	3.06	1.25	5.50	6.30	5.30	140.60	100.00
  8AWG	1650/0.08	3.75	1.50	6.80	4.20	8.29	200.00	100.00
  6AWG	3430/0.08	5.40	1.30	8.00	1.20	17.23	320.00	50.00
  4AWG	5000/0.08	6.50	1.75	10.50	0.84	25.00	120.00
  2AWG	7000/0.08	8.00	2.00	12.00	0.53	35.00	175.00

•

•
