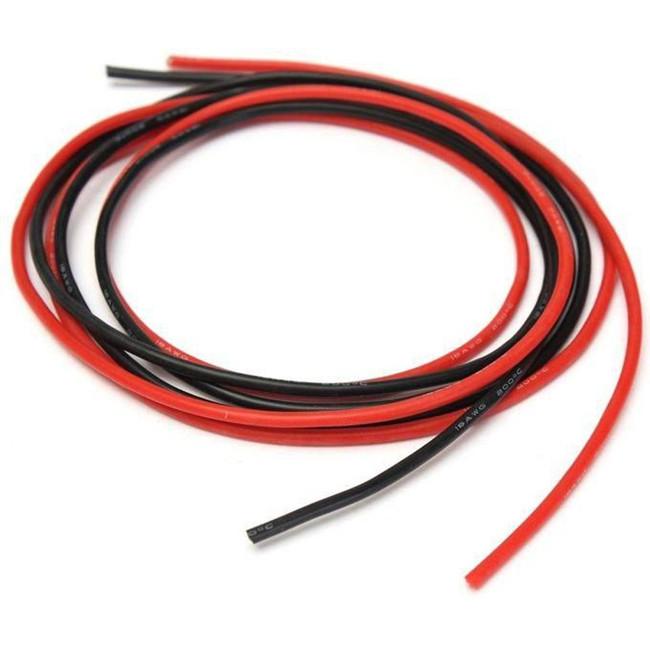

Flexible Silicone Cable 252/ 0.08 18AWG Silicon Wire with material silicone rubber

1. Nominal voltage: 600V
2. Application:Heating
3. Tempetature rang:-60°C +200 °C
4. Insulator:Silicone
5. Conductor:Tinned copper
6. Our products are good conductor and can bare high temperature
7. These products can use in different kinds of electronic components
8. The size and color can changeed according to customers' requirement
9. Ps:RoHS compliance

Don't hesitate to contect me if you have any question before or after purches,we are committed to you 100%and make you happy for
woring with us.
We really wish to have great coperation with you

• ize	Construction	Section	Diameter	Insulation Thickness	Overall Diameter	Packing
  AWG	NO. X Ømm	mm2	mm	mm	mm	Mt/Coils
  4AWG	5000/0.08	25	6.55	2.4	11.5	50
  6AWG	3200/0.08	16	5.25	1.65	8.5	100
  8AWG	1650/0.08	8.25	3.75	1.35	6	100
  10AWG	1050/0.08	5.25	3	1.3	5.4	100
  12AWG	680/0.08	3.4	2.4	1.05	4.5	100
  14AWG	400/0.08	2	1.85	0.9	3.5	200
  16AWG	252/0.08	1.26	1.45	0.75	3	200

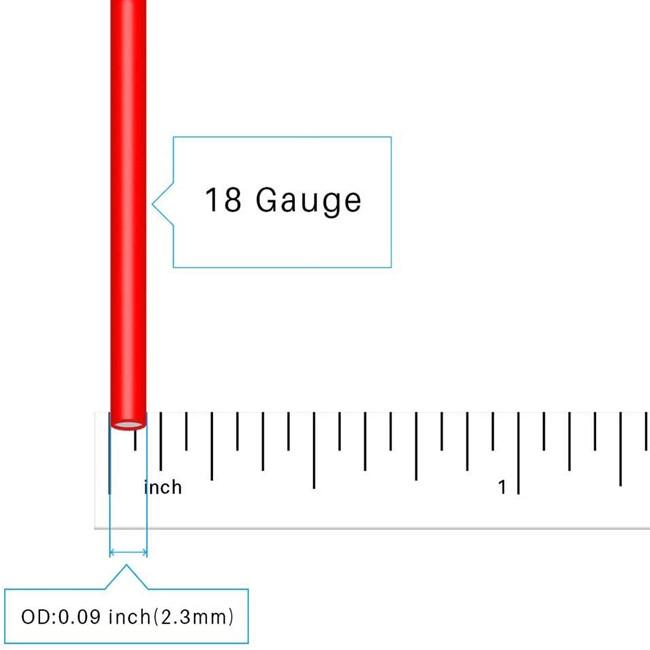

  18AWG	150/0.08	0.75	1.15	0.55	2.3	200
  20AWG	100/0.08	0.5	0.95	0.45	1.8	400
  22AWG	60/0.08	0.3	0.72	0.45	1.7	400
  24AWG	40/0.08	0.2	0.58	0.45	1.6	400
  26AWG	30/0.08	0.15	0.5	0.45	1.5	400
  28AWG	16/0.08	0.08	0.37	0.4	1.2	1500
  30AWG	11/0.08	0.055	0.31	0.3	0.8	2500

•
