L Feet Frameless Metal Roof Solar Mounting System - Aluminum Standing Seam Mount with 88 M/S Wind Load and 1.5 KN/M² Snow Capacity
Price:
Negotiable
MOQ:
3KW
Delivery Time:
5~15 days
Brand:
LP SOLAR
Product Description
Professional Solar Mounting Solution for Standing Seam Metal Roofs
Our L Feet Frameless Metal Roof Solar Mounting System provides a secure, non-penetrating installation method that protects your roof integrity while maximizing solar panel performance.
Product Overview
This aluminum standing seam mount system offers three installation configurations to suit various project requirements:
- Railess System: Direct panel mounting without rails
- L-Feet System: Elevated mounting for improved heat dissipation
- Rail System: Traditional rail-based installation
All configurations utilize our patented non-penetrating roof seam clamps that eliminate rotational forces and prevent installation damage to roof panels.
Key Advantages
- Zero Penetration: No drilling, no holes, no risk of roof leakage
- Factory Pre-assembly: Reduces on-site labor costs and installation time
- Customizable Solutions: LP SOLAR engineering team provides tailored solutions for specific roof shapes and requirements
- Enhanced Heat Dissipation: L-feet configuration provides optimal airflow
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Standing Seam Metal Roof Mounting System |
| Application | Standing seam metal roofs |
| Material | High grade aluminum and A2-70 hardware |
| Wind Load | Max 88 M/S |
| Snow Load | Max 1.5 KN/M² |
| Applicable Module | Framed or Frameless |
| Module Orientation | Portrait or Landscape |
| Standards Compliance | JISC8955:2017, GB50009-2012, GB50797-2012 |
| Dimensions | Customized |
| Warranty | 10 Years |
| Work Life | 25 Years |
Installation Process
1. Seam Clamp Installation
2. Rail Installation
3. Panel Installation
System Components
| Photo | Item No | Name | Product Type | Product Line |
|---|---|---|---|---|
 |

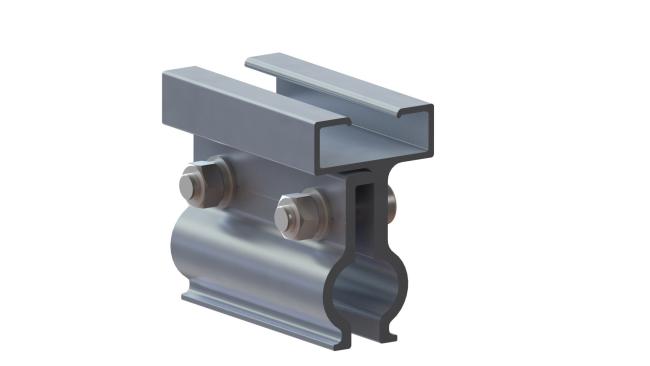

AR02 | Seam clamp | Clamps | MRA2 |
 |
4HL0000A | Rail 35 | Racking | MRA |
 |
HAC03 | Rail 35 joiner | Racking | MRA |
 |
A735 | Mid clamp | Racking | All |
 |
A835 | End clamp | Racking | All |
 |
H6WL0000S | Earthing plate | Earthing | MRA |
 |
ED02 | Earthing lug | Earthing | MRA |
We respect roofs!
Our commitment to roof integrity ensures your investment is protected while maximizing solar energy generation.
