20x20x2mm Advanced Structural Ceramics Zirconia Silicon Nitride Plate Sheet
Customized Ceramic Plate Of Silicon Nitride/Zirconia With High Precision
Description of ceramic plate:

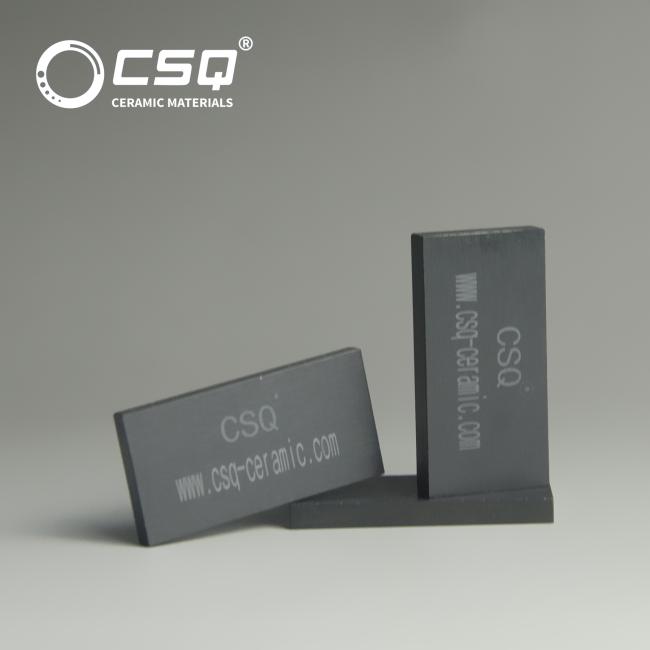

1. Silicon nitride plate: Are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and is processed by GPS (Gas Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology.
2. Zirconium oxide plate: Our zirconia material has a density and linear expansion coefficient close to that of metal steel shafts, high hardness Hv1300, wear resistance, resistance to various strong acids, strong alkalis, salt corrosion (except hydrofluoric acid), non-magnetic, non-conductive, high temperature resistance, high operating speed, impact resistance, small starting torque, resistance to dry friction,
| ► Key properties of silicon nitride |
| ♦ Max temperature to 1000℃ |
| ♦ High strength over a wide temperature range |
| ♦ High fracture toughness: 6.1 MPa-m1/2 |
| ♦ High hardness: 1580 HV5 |
| ♦ Outstanding wear resistance, both impingement and frictional modes |
| ♦ Good thermal shock resistance |
| ♦ Good chemical stability,resistance to acid and alkali corrosion |
| ♦ Good electric insulation |
| ►Key properties of zirconia |
| ♦ Max Temperature up to 380℃ |
| ♦ High density: 6.09 g/cm3 |
| ♦ Low thermal conductivity |
| ♦ Chemical stability, resistance to acid and alkali corrosion |
| ♦ High fracture toughness KIC:8-11 MPa-m1/2 |
| ♦ Good electric insulation |
| ♦ Better bearing capacity |
| ♦ Wear resistance |
| ♦ High hardness : 1300 HV5 |
