Zirconia Ceramic Rotor Shaft For Impeller Pump Silicon Carbide Rod Bar

Price Negotiable
Price: Negotiable
MOQ: 5 pcs
Delivery Time: 40-60 work days
Brand: CSQ
Product Description

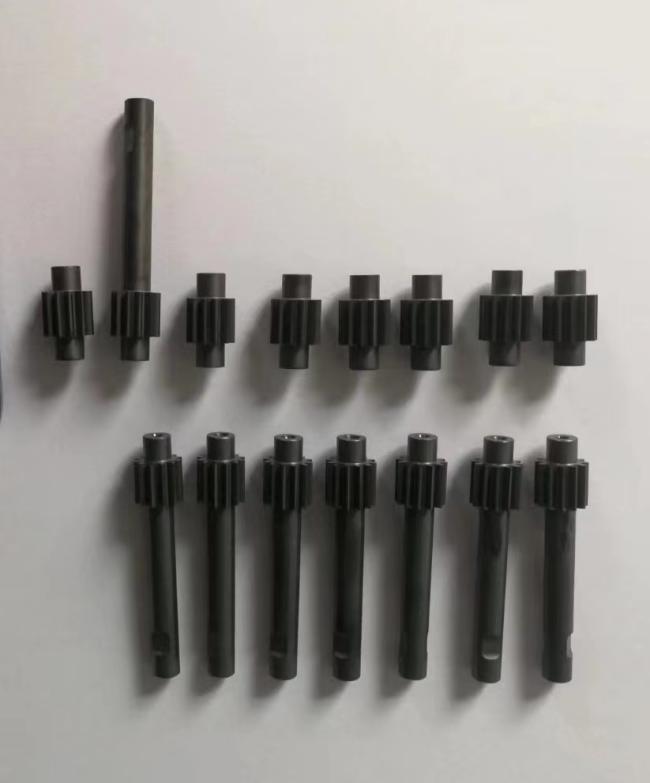

Ceramic Rotor Shaft For Cam Rotor Pump Of Silicon Carbide Or Zirconia



Description of ceramic rotor shaft/ Ceramic CAM rotor pump:



We can manufacture SSiC or ZrO2 ceramic rotor shaft or all SSiC or ZrO2 can rotor pump according to your need. CAM rotor pump is one of the advanced fluid equipment in the world, wear resistance is strong, rotor and shell with high precision clearance, has a strong self-suction and high lift force, the pump is reliable, solid, energy saving, can transport a variety of viscous or containing particles of the medium. High efficiency, energy saving, time saving, no need for drainage, irrigation pump, can be applied to a variety of complex fluid media. Dry installation, online maintenance and low-cost maintenance, smooth operation, self-priming, wear resistance and not easy to plug. Because of the outstanding properties of silicon carbide and zirconia, the cam rotor pump and rotor shaft can work better in corrosive situation.



►Key properties of pressureless sintered silicon carbide
♦ Max Temperature up to 1650℃
♦ Low density:3.15-3.18 g/cm3
♦ High strength
♦ Low thermal expansion : 4.0 (10-6/℃)
♦ High thermal conductivity:120 W/m°K
♦ High hardness:2800 HV5
♦ High elastic modulus: 410GPa
♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)
























►Key properties of zirconia
♦ Max Temperature up to 380℃
♦ High density: 6.09 g/cm3
♦ Low thermal conductivity
♦ Chemical stability, resistance to acid and alkali corrosion
♦ High fracture toughness KIC:8-11 MPa-m1/2
♦ Good electric insulation
♦ Better bearing capacity
♦ Wear resistance
♦ High hardness : 1300 HV5
