6002 6001 6200 Ceramic Deep Groove Ball Bearings 6000 Si3N4 SSiC ZrO2

Name: 6002 6001 6200 Ceramic Deep Groove Ball Bearings 6000 Si3N4 SSiC ZrO2
Brand: Beijing Zhongxing Shiqiang CERAMIC BEARING Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: 50 pcs

Delivery Time: Negotiable

Brand: CSQ

Product Description

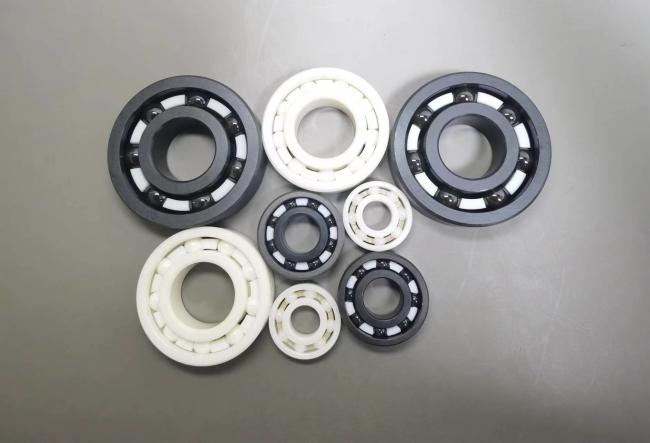

Ceramic Deep Groove Balls Bearings in material Of Si3N4/SSiC/ZrO2

Description of Ceramic Deep Groove Bearings:

1. The material of races and balls can be chosen among silicon nitride, silicon carbide and zirconia.

2. The material of cage can be chosen among PEEK, , Brass and Stainless steel, we can customize any material combination according to your requirement.

3. The structure can be open or sealed and the material of seals can be chosen among Stainless steel, Rubber, and Peek.

Material Properties	Units	SSiC	HIP-Si₃N₄	GPS-Si₃N₄	HIP-ZrO₂
Density	g/cm³	3.15-3.18	3.27-3.29	3.22-3.27	6.05-6.09
Porosity	%	0	0	0	0
Fledural Strength	MPa	550	830	689	900
Elastic Modulus	GPa	410	310	310	200
Hardness	HV5	2800	1580	1450	1300
Fracture Toughness KIC	MPa.m^1/2	4.6	6.1	5.7	8-11
Maximum Use Temperature	℃ (℉)	1650 (3000)	1000 (1830)	1000 (1830)	380 (716)

Reference data of Ceramic Deep Groove Bearings:

Bearings model	Form size d (mm)	Form size D (mm)	Form size B (mm)	Load Cr (N)	Load Cor (N)	Max.Speed Grease (rpm)	Max. Speed Oil (rpm)
6000CE	10	26	8	4100	1960	37700	44200
6200CE	10	30	9	4590	2390	32500	39000
6300CE	10	35	11	7380	3500	29900	35100
6001CE	12	28	8	4590	2390	33800	39000
6201CE	12	32	10	5490	2750	28600	33800
6301CE	12	37	12	8730	4200	26000	31200
6002CE	15	32	9	5040	2840	28600	33800
6202CE	15	35	11	6980	3600	24700	29900
6302CE	15	42	13	10260	5450	22100	27300
6003CE	17	35	10	6120	3350	26000	31200
6203CE	17	40	12	8640	4600	23400	27300
6303CE	17	47	14	12150	6550	20800	24700
6004CE	20	42	12	8460	5050	23400	27300
6204CE	20	47	14	11520	6650	20800	23400
6304CE	20	52	15	14310	7900	18200	22100
6005CE	25	47	12	9090	5850	19500	23400
6205CE	25	52	15	12600	7850	16900	19500
6305CE	25	62	17	19080	10900	15600	18200
6006CE	30	55	13	11880	8300	16900	19500
6206CE	30	62	16	17550	11300	14300	16900
6306CE	30	72	19	24030	15000	13000	15600
6007CE	35	62	14	14400	10300	15600	18200
6207CE	35	72	17	23130	15300	12740	14300
6307CE	35	80	21	30150	19100	11440	13000
6008CE	40	68	15	15120	11500	13000	15600
6208CE	40	80	18	26190	17800	11310	3000
6308CE	40	90	23	36450	24000	10140	11960
6009CE	45	75	16	18900	15100	11960	14300
6209CE	45	85	19	29250	20400	10140	11960
6309CE	45	100	25	47700	32000	9100	10660
6010CE	50	80	16	19620	16600	10920	12740
6210CE	50	90	20	31500	23200	9230	10790
6310CE	50	110	27	55800	38500	8320	9750
6011CE	55	90	18	25470	21200	10010	11700
6211CE	55	100	21	39150	29200	8320	9880
6311CE	55	120	29	64350	45000	7540	8840
6012CE	60	95	18	26550	23200	9100	10790
6212CE	60	110	22	47250	36000	7800	9100
6312CE	60	130	31	73800	52000	7020	8190
6013CE	65	100	18	27450	25200	8450	10010
6213CE	65	120	23	51750	40000	7150	8450
6313CE	65	140	33	83250	60000	6370	7540
6014CE	70	110	20	34200	31000	7930	9230
6214CE	70	125	24	55800	44000	6630	7800
6314CE	70	150	35	93600	68000	5980	7020
6015CE	75	115	20	35550	33500	7410	8710
6215CE	75	130	25	59400	49500	6240	7280
6315CE	75	160	37	101700	77000	5590	6500
6016CE	80	125	20	42750	40000	6890	8060
6216CE	80	140	26	65250	53000	5850	6890
6316CE	80	170	39	110700	86500	5200	6110
6017CE	85	130	22	44550	43000	6500	7670
6217CE	85	150	28	75150	64000	5460	6500
6018CE	90	145	24	52200	49500	6115	7280
6218CE	90	160	30	86400	71500	5200	6115
6019CE	95	150	24	54450	54000	5850	6890
6219CE	95	170	32	98100	82000	4810	5720
6020CE	100	160	26	54000	54000	5460	6500
6220CE	100	180	34	109800	93000	4550	5460
