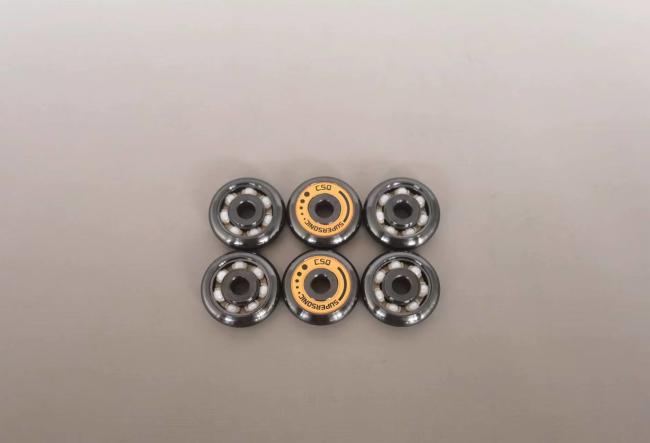

Non-standard 608 Ceramic Bearings in material of Si3N4/ZrO2+Peek Cage

Description of Non-standard 608 Ceramic Bearing (HIP-Si3N4 or HIP-ZrO2 Races and Balls+Peek Cage):

1. HIP-Si3N4 Races and Balls: Are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and is processed by GPS (Gas Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology.

2. HIP-ZrO2 Races and Balls: Are made by highly purified, sub-micron and after Y2O3-TZP stabled zirconia powder material, are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology.

3. PEEK cage: We adopted British Victrex PEEK material, PEEK material has similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics. The peek cages are injection molded at high temperature, so have high strength, light body.

Performance advantages of Non-standard 608 Ceramic Bearing (HIP-Si3N4 or HIP-ZrO2 Races and Balls+Peek Cage):

Main application of Non-standard 608 Ceramic Bearing (HIP-Si3N4 or HIP-ZrO2 Races and Balls+Peek Cage):

Because of the above mentioned performance advantages and its special structure, the non-standard 608 ceramic bearings are suitable for the rollers of high-end door and window.
