HIP ZrO2 Ball Bearing Hybrid Ceramic Steel Races Insulated
Price:
Negotiable
MOQ:
50 pcs
Delivery Time:
20 work days
Brand:
CSQ
Product Description
Insulative Hybrid Ceramic Bearing Of Steel Races+HIP-ZrO2 Balls
Why choose us:

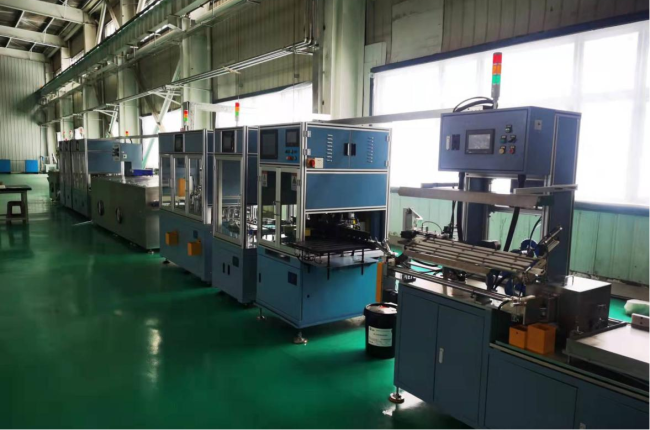

Zhongxing Shiqiang Technology (Tianjin) Co., Ltd. mainly produces ceramic rolling bearings and ceramic balls. At present, the company has a production line for automatic grinding and assembly of ceramic bearings, and designs an annual output of 3 million sets of 608 all-ceramic bearings and mixed ceramic bearings whose precision grades can reach P5 and P4. As professional ceramic bearing manufacturer, we can supply many kinds of material combination according to your rrequirement, following is our alternative possibilities:
| Bearing Model | Part of bearings | Material option |
| Hybrid Ceramic Bearing | Races | GCr15/Stainless steel/ Other steel |
| Hybrid Ceramic Bearing | Balls | HIP-ZrO2 |
| Hybrid Ceramic Bearing | Cage | Stainless steel/ Nylon/ Peek/ |
| Hybrid Ceramic Bearing | Seal (Single or double) | Non/ Rubber/ Stainless steel/ Peek / |
Performance advantages of Hybrid Ceramic Bearing :
Non-magnetic, non-conductive, low noise, electrically insulated, non-locking at high speeds, resistant to dry friction, long life, cost effective and etc.Because of the good properties and low cost of zirconia material, the hybrid ceramic bearings fitted with zirconia ceramic balls are more cost-effective.
| ►Key properties of zirconia |
| ♦ Max Temperature up to 380℃ |
| ♦ High density: 6.09 g/cm3 |
| ♦ Low thermal conductivity |
| ♦ Chemical stability, resistance to acid and alkali corrosion |
| ♦ High fracture toughness KIC:8-11 MPa-m1/2 |
| ♦ Good electric insulation |
| ♦ Better bearing capacity |
| ♦ Wear resistance |
| ♦ High hardness : 1300 HV5 |
