Balancing The Voltage Drop DC12V 528led/M COB Led Strip With 3000K Color Temperature IP20 Rated

Balancing the Voltage Drop DC12V 528led/m COB Led Strip Light with 3000K Color Temperature IP20 Rated

Description

Balancing the Voltage Drop DC12V 528led/m COB Led Strip Light is an LED light strip with very soft linear light and no spots. Monochrome but we can provide color temperatures of 2700K, 3000K, 4000K-6000K.Balancing the Voltage Drop DC12V 528led/m COB Led Strip Light have 528 LEDs/m, 12V, 10W/M.Each roll comes in 5 meters and can be cut freely - Small increments of LED strips can be cut freely to the desired length with minimal shadowing.

Features

Chip-on-board design, more chips on board reaches even and uniform lighting.

Up to 528 chips, only 1.89mm distance between chips.

Only 7.58mm cutting length, suitable for more applications.

Double layer 2oz PCB, balancing the voltage drop, heat dissipation and flexibility.

IP20/IP54/IP65/IP67 optional.

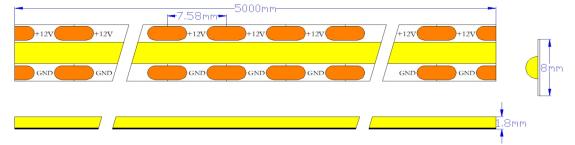

Dimensions

Balancing the Voltage Drop DC12V 528led/m COB Led Strip Light only 7.58mm cutting length, suitable for more applications.Can better fit the length you need.

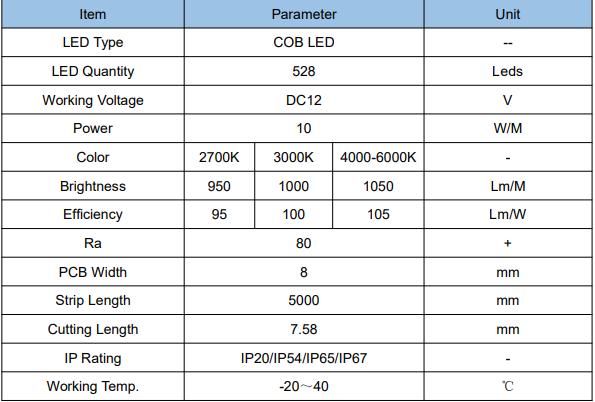

Technical parameters

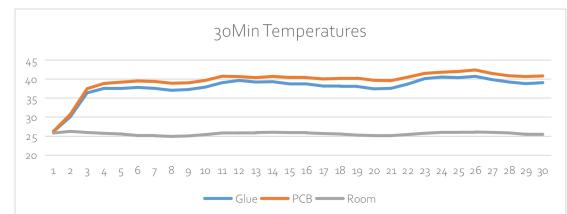

Temperature Curve

The following curve based on 30 minutes testing data. The Temp. changes after powering within30minutes.

The x-axis indicates the minutes from 1 minutes to 30 minutes.

The y-axis indicates the changes of temperatures in Glue, PCB and Room.

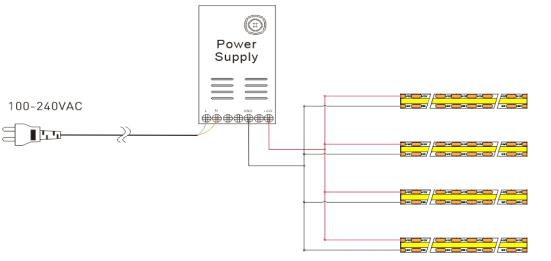

Installation Ways

The max running length is 1 meters, for over 1 meters please connect in parallel.

Make sure of the total watts of COB Strip lights is less than 80% of the power supply'smax output.

Match the polarities according to the mark ('+' and '-') in the PCB while connecting.

Package

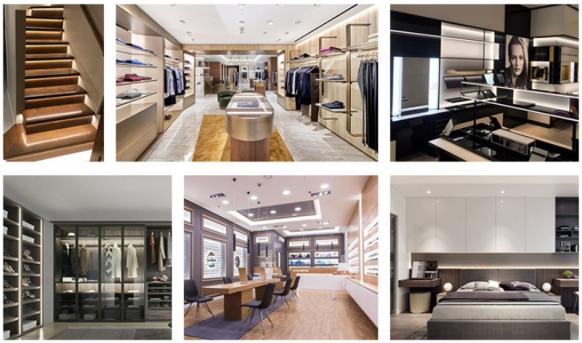

Applications

Used in linear lights as lighting source; used for indoor decorations.

About US

Founded in 2013, ADLED is a high-end LED strips and LED modules supplier headquatered in Shenzhen, China.

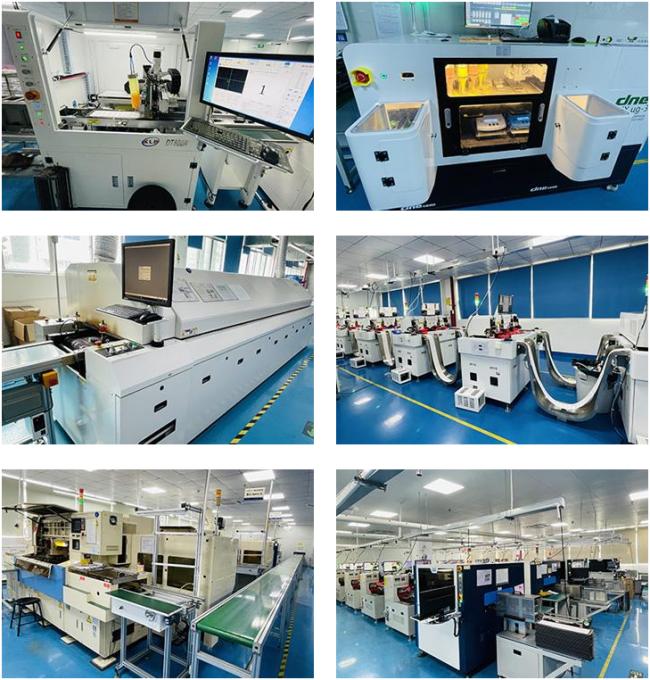

ADLED has 300 staff working in a 12000sqm dust-free workshop, 15 professional R&D members, 30 experienced QC members to provide customization & quality products.

Our wide range of LED strips and LED modules includes high CRI LED strip, COB LED strip, single color LED strip, RGB LED strip, tunable white LED strip, bendable LED strip, waterproof LED strip, neon LED strip, light bars for LED fabric frame, bar light for LED light box, LED module lights, SMD LED module, LED strip connector, LED strip profile, LED strip controller, and more.
