COB LED Strip Light 630LEDs/m RGB DC12V Non-waterproof IP20 Rated High LED Density With UL Listed

Description

The 630 RGB transparent type is a COB strip light that uses a placement machine to place the LED chip directly on the strip board. The fluorescent gel is evenly applied in a dome shape on the top surface of the mounted ultra-fine pitch LEDs. When turned on, the LED dots are unobtrusive and provide straight lines of light. Since it is an RGB type, full colors can be expressed without limitations.

Features

Chips-on-board design, dot-free even without any profiles.

High LED density, only 1.59mm distance between each LEDs.

Double layer FPC, balancing the voltage dropping, heat dissipation and flexibility.

Compatible with most of the RGB controllers in the markets.

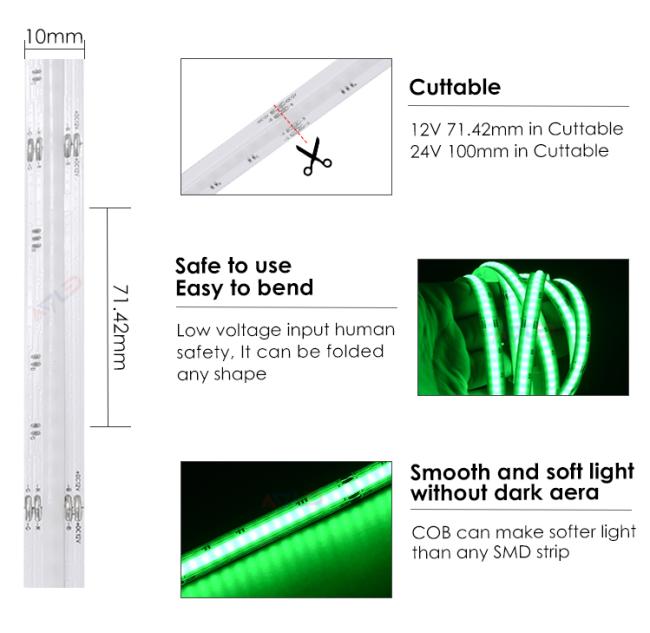

Dimensions

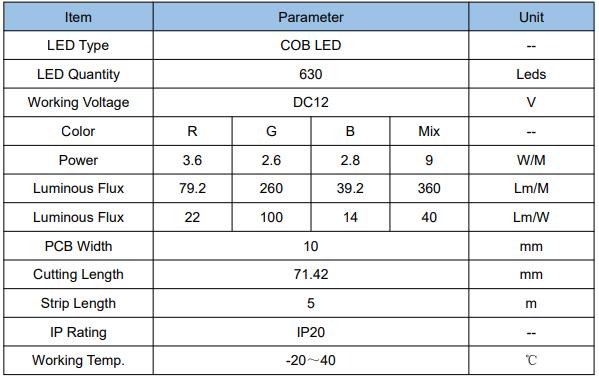

Technical parameters

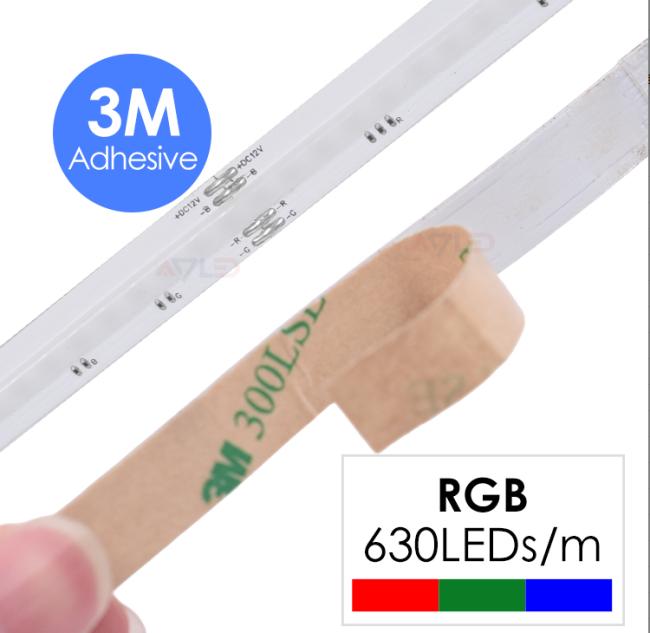

Stronger Backing Adhensive

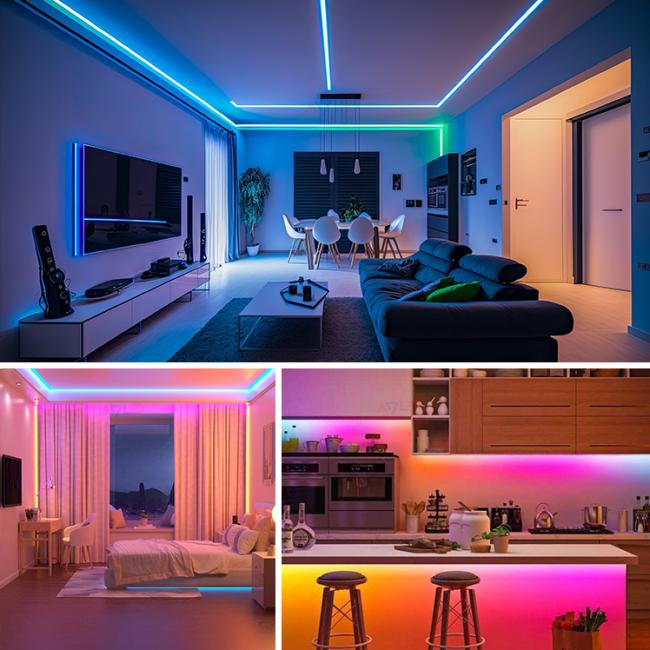

Applications

Linear Lighting,cove lighting,indirection lighting,back lighting.

Sign illumination,3D letters,AD boxes,light boxes.

Under cabinet,display case,accent decor,and automotive accents.

About US

Founded in 2013, ADLED is a high-end LED strips and LED modules supplier headquatered in Shenzhen, China.

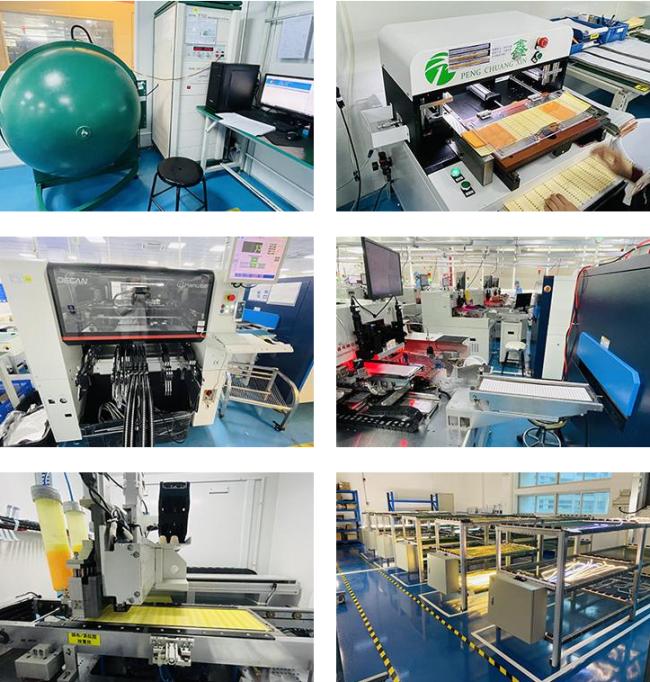

ADLED has 300 staff working in a 12000sqm dust-free workshop, 15 professional R&D members, 30 experienced QC members to provide customization & quality products.
