5 Meter COB Led Strip Light 528led/m DC12V 4000K Color Temperature IP20/IP54/IP65/IP67 Rated with 3 Year Warranty

5 Meter COB Led Strip Light 528led/m DC12V 4000K Color Temperature IP20/IP54/IP65/IP67 Rated with 3 Year Warranty

Description

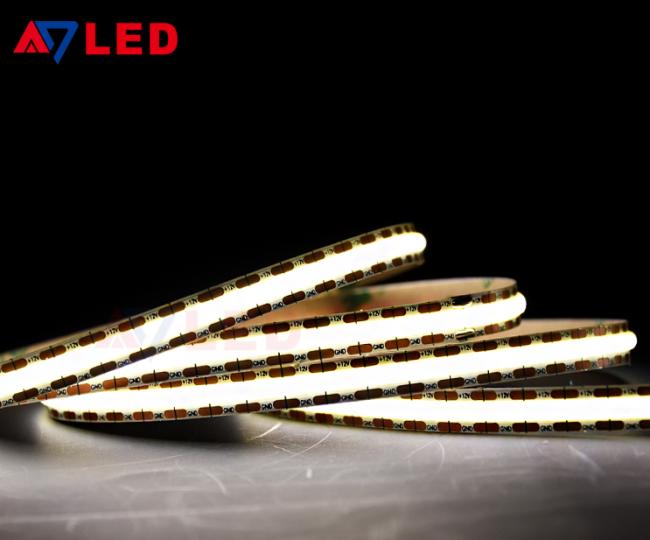

The ADLED528COB light strip is composed of 528 chips per meter. The high-density chips make the lighting of the entire light strip look spotless and very bright. only 1.89mm distance between chips.Only 7.58mm cutting length, suitable for more applications. It can be used in cabinets, shopping malls, linear lighting, display cabinets, and home decoration. exert its effect.

Features

Chip-on-board design, more chips on board reaches even and uniform lighting.

Up to 528 chips, only 1.89mm distance between chips.

Only 7.58mm cutting length, suitable for more applications.

Double layer 2oz PCB, balancing the voltage drop, heat dissipation and flexibility.

IP20/IP54/IP65/IP67 optional

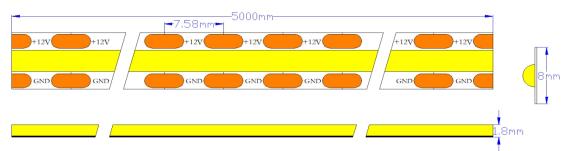

Dimensions

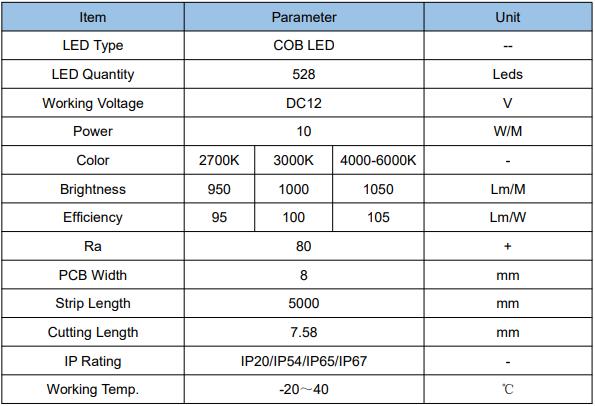

Technical parameters

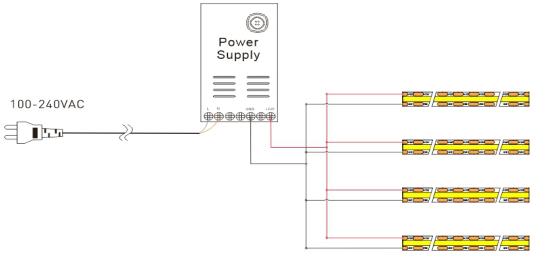

Installation Ways

The max running length is 1 meters, for over 1 meters please connect in parallel.

Make sure of the total watts of COB Strip lights is less than 80% of the power supply'smax output.

Match the polarities according to the mark ('+' and '-') in the PCB while connecting.

Package

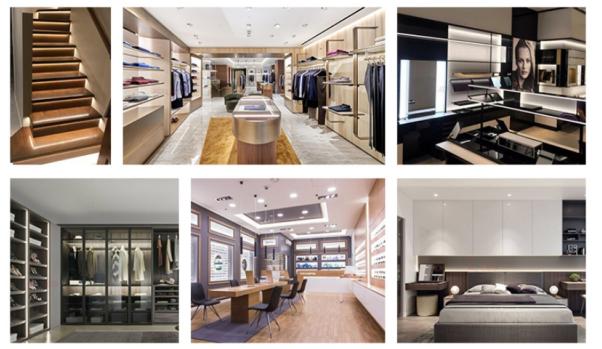

Applications

Display cabinets, cupboards, sideboards, wardrobes and even Staris lighting sources.
