Ultra Slim 5m LED Strip Light Flexibility 4.5mm Width 528led/m COB 4000K Color Temperature 2700K IP20/IP65 Rated UL List

Ultra Slim 5m LED Strip Light Flexibility 4.5mm Width 528led/m COB 4000K Color Temperature 2700K IP20/IP65 Rated UL List

Description

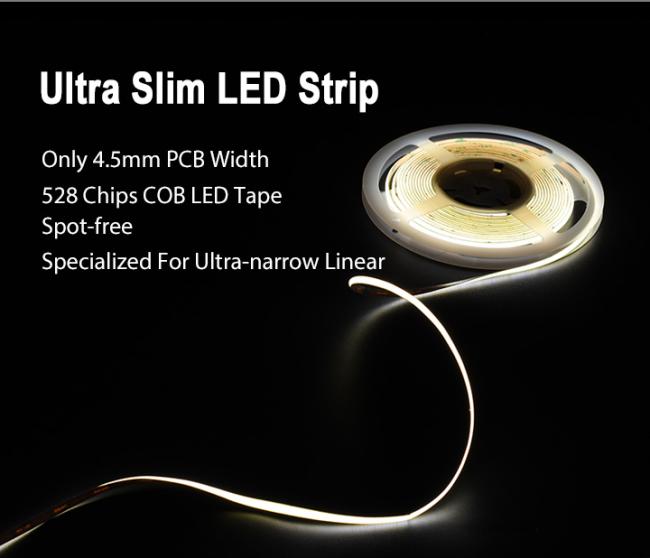

ADLED 528led/m COB led strip light, 528 lights per meter, one lamp bead every 1.89mm, the high density of lamp beads makes the entire light strip brighter without any spots. And as a COB light strip it is also bendable and more flexible. PCB board Ultra slim in 4.5mm width, suitable for more fields. The COB528 light strip can be cut every 22.73mm, and the 3M strong adhesive can perfectly fit any effect you want. And we have CE/UL/ROHS and other certificates to ensure the quality of our COB light strips.

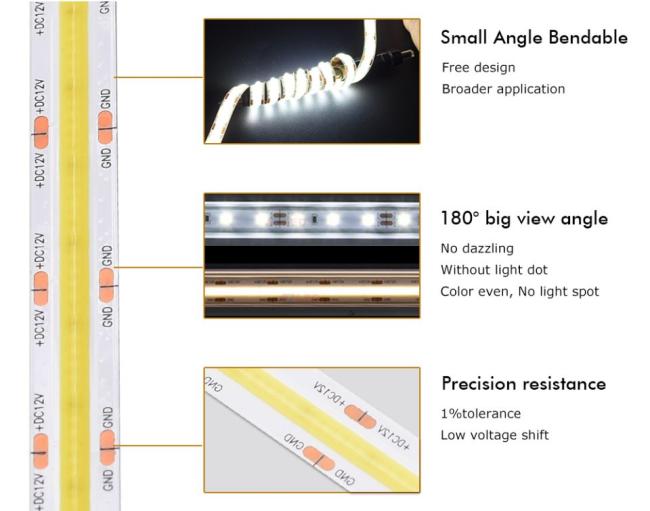

Features

Designed with Chip-on-Board, more chips on PCB to reach even and uniformlighting effects.

Up to 528 chips per meter, only 1.89mm distance between chips.

Ultra slim in 4.5mm width, more applications.

Double layer 2oz PCB, for better flexibility, heat dissipation and voltage drop.

IP20/IP65 optional

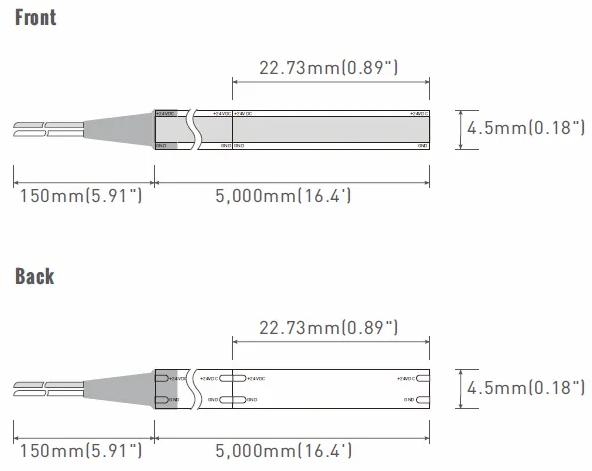

Dimensions

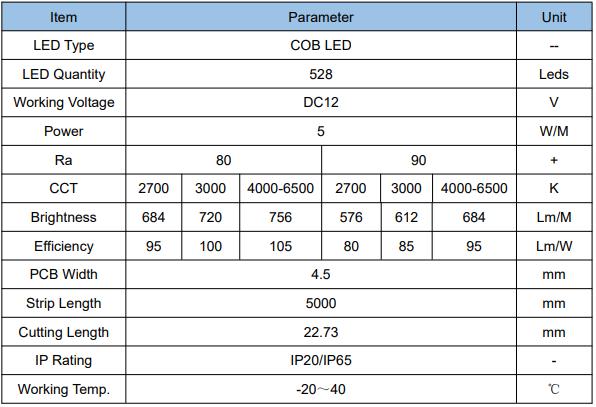

Technical parameters

Installation Ways

The max running length is 2 meters, for over 2 meters please connect in parallel.

Make sure of the total watts of COB Strip lights is less than 80% of the power supply'smax output.

Match the polarities according to the mark ('+' and '-') in the PCB while connecting.

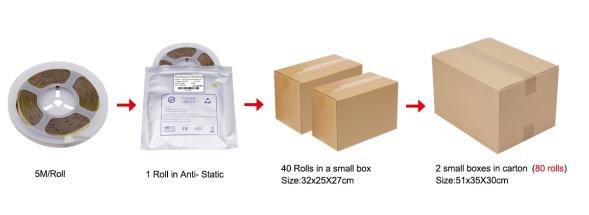

Package

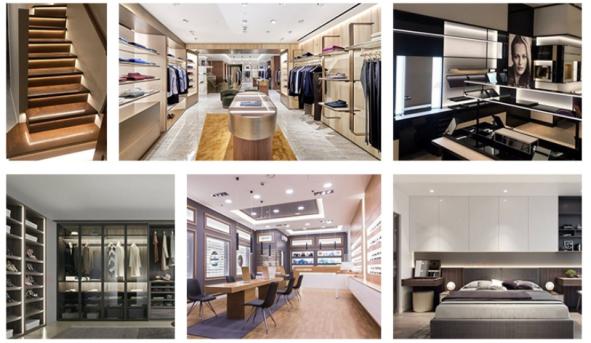

Applications

--Used in linear lights as lighting source; used for indoor decorations.

About US

Founded in 2013, ADLED is a high-end LED strips and LED modules supplier headquatered in Shenzhen, China.

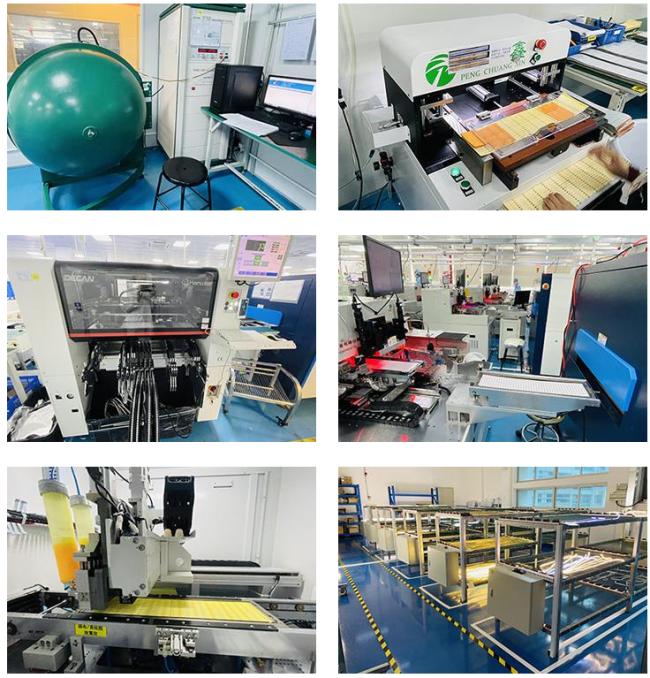

ADLED has 300 staff working in a 12000sqm dust-free workshop, 15 professional R&D members, 30 experienced QC members to provide customization & quality products.

Our wide range of LED strips and LED modules includes high CRI LED strip, COB LED strip, single color LED strip, RGB LED strip, tunable white LED strip, bendable LED strip, waterproof LED strip, neon LED strip, light bars for LED fabric frame, bar light for LED light box, LED module lights, SMD LED module, LED strip connector, LED strip profile, LED strip controller, and more.
