504leds/m COB Led Strip Light DC12V/24V 6500K IP20 Rated 10mm PCB Width Blue Adhensiven For Linear Lights

Description

ADLED LIGHT 504 COB LED strip light Blue Adhensive Backing. The light strip is composed of 504 lamp beads per meter, which is bright and has no spots. Seamless lighting makes it easier for people to design the desired atmosphere. 10mm PCB board width, the light strip can be cut. 17.86mm cutting length for DC12V, 41.67mm cutting length for DC24V.

Features

Chip-on-board design, up to 504 chips on single meter reaches even and uniformlighting.

17.86mm cutting length for DC12V,41.67mm cutting length for DC24V.

New circuit design to reduce brightness difference from beginning and ending.

Double layyer 2oz PCB, balancing voltage dropping, heat dissipation and flexibility.

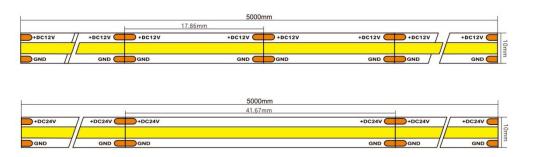

Dimensions

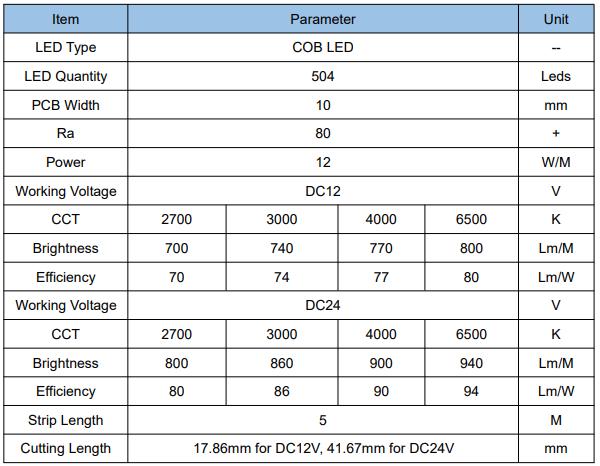

Technical parameters

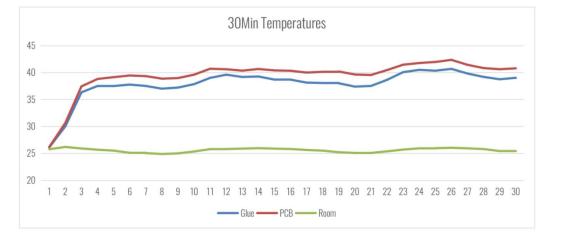

Temperature Curve

￭ The following curve based on 30 minutes testing data. The Temp. changes after powering within30minutes.

￭ The x-axis indicates the minutes from 1 minutes to 30 minutes.

￭ The y-axis indicates the changes of temperatures in Glue, PCB and Room.

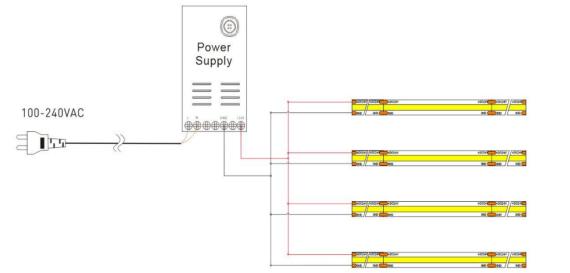

Installation Ways

￭ The max running length is 5 meters, for over 5 meters please connect in parallel.

￭ Make sure of the total watts of COB Strip lights is less than 80% of the power supply's max output.

￭ Match the polarities according to the mark ('+' and '-') in the PCB while connecting.

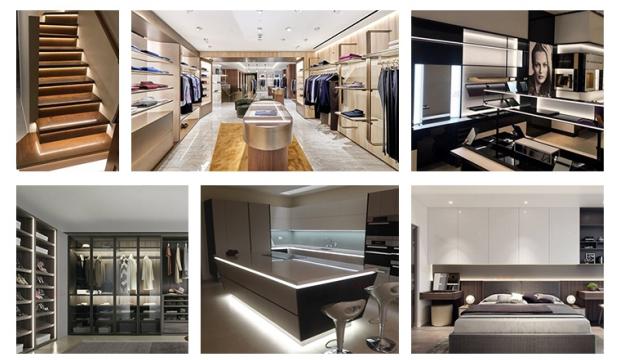

Applications

--Used in linear lights as lighting source; used for indoor decorations.
