PV23 Transit Mixer Truck Hydraulic Pump Manual Loading
Transit Mixer Truck Hydraulic Pump Factory Price Good Quality
Transit Mixer Truck Hydraulic Pump product introduction:

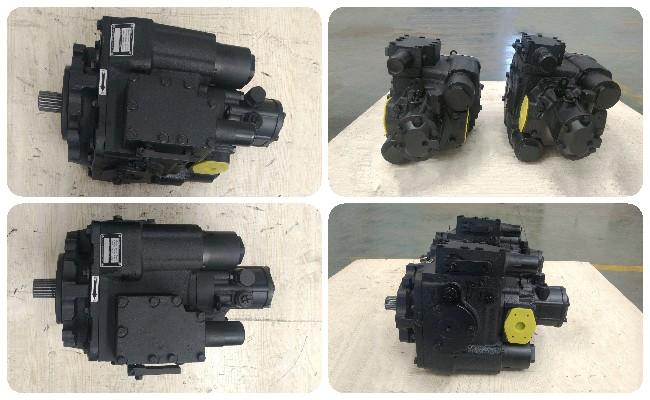

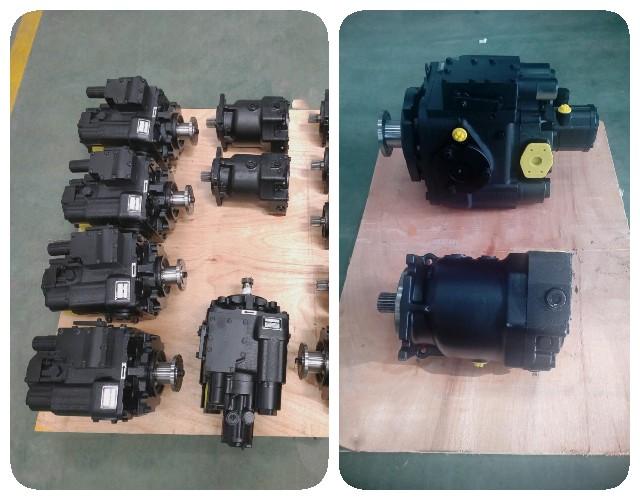

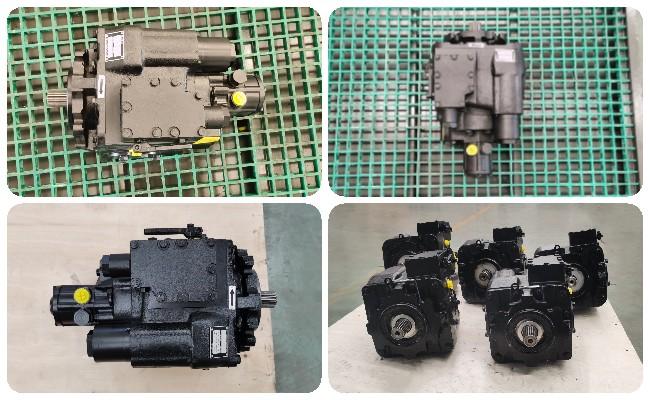

Highland brand PV23 axial piston hydraulic pumps and MF23 axial piston hydraulic motors are used for transit mixer truck and closed hydraulic transmission system. The engine power in transit mixer is transferred to the axial piston hydraulic pump by the transmission shaft, and the axial piston hydraulic pump transmits the hydraulic energy to axial piston hydraulic motor, which drives the reducer to drive the mixing tank, so as to realize the function of loading, mixing and unloading.
Highland Transit Mixer Truck Hydraulic Pump based information:
Model: PV23
Displacement: 89.0ml/r
Material: Cast iron
Rotation direction: Left / Right according to customer request
Shaft teeth: 23 Teeth, according to customer request
Control mode: manual mechanical servo or electric proportional control according to customer choice.
Transit Mixer Truck Hydraulic Pump technical parameters:
| 20 series PV hydraulic pump and MF hydraulic motor | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 89.0 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| Weight |
PV series hydraulic pump hydraulic oil emptying |
kg | 45 | 53 | 63 | 78 |
|
MF series hydraulic motor hydraulic oil emptying |
kg | 30 | 34 | 40 | 47 | |
Transit Mixer Truck Hydraulic Pump Factory Price Good Quality:
1.One-stop hydraulic pump service for all the top transit mixer truck brands .
2.We have more than 20 years of experience in the hydraulic pump industry and our superior manufacturing process meet all kinds of hydraulic pumps according to OEM standards.
3. We have implemented the highest quality control system possible to ensure the stability and quality of our mixer piston pumps.
4.Our sales team is experienced and trained to understand your request and help you find the best solution for your needs.
FAQ of hydraulic pumps for transit mixer:
Q1: Could we place a sample order of transit mixer hydraulic pump?
A: Yes, welcome sample order to test and check quality.
Q2: Do you offer guarantee for transit mixer hydraulic pump?
A: Each pump will be tested before shipping. Warranty: 1 year.
Q3: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment. Small order/sample order: Full advance payment.
Q4: Are you manufacturer?
We are a manufacturer with own plant manufacturing hydraulic pump. We have 20 years experience in hydraulic industry for oversea and domestic markets.
Q5: How do you ship the goods and how long does it take to arrive?
A: By sea or by air. Ship by air express, it takes 3-5 days to arrive. ship by sea shipping, it depend destination port.
