Digital Hydraulic Flow Gauge Hydraulic Pressure Test Kit Testing Hydraulic Systems
Highland Digital Hydraulic Flow Gauge Hydraulic Pressure Test Kit Testing Hydraulic Systems
Highland Digital Hydraulic Flow Gauge Hydraulic Pressure Test Kit basic information:

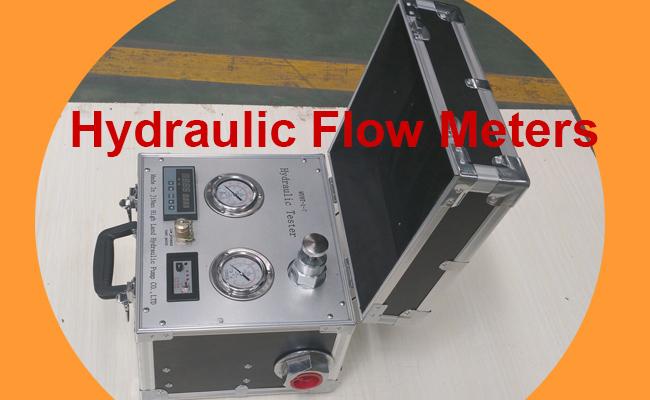

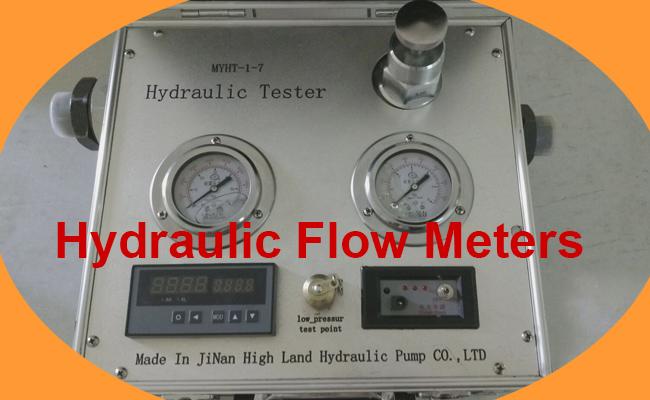

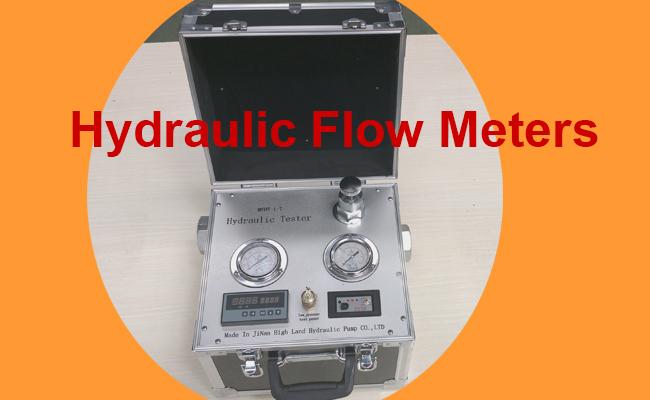

Highland MYHT series digit hydraulic flow gauge hydraulic pressure test kit is the ideal tool for pinpointing hydraulic system faults, reducing working time, and helping in preventative maintenance.
Highland Hydraulic flow gauge to measure flow, is widely used in testing and diagnosing for hydraulic pump, hydraulic motor and hydraulic valve of excavator machinery.
Highland Digital hydraulic flow gauge features:
1. ACCURATE measurement of flow, pressure, peak pressure and temperature.
2. SAFE to use in both directions of flow. Internal oil by-pass protects multi meter and operate against over pressure.
3. Bi-DIRECTIONAL for unrestricted connection and simplified testing.
4. FAST checks on pumps, motors, valves, cylinders, hydrostatic transmissions.
5. EASY to operate controls. Connect Into the hydraulic system and simply“Switch on”.
6. PORTABLE AND LIGHTWEIGHT with the case for easier viewing and cleaning.
7. RECHARGEABLE POWER: lithium battery 12v.
Highland digital hydraulic flow gauge hydraulic pressure test kit technical specifications:
| Model | Flow(L/min) | Precision | Pressure(bar) | Oil Temperature(°C) | Dimensions(mm) | Weight(Kg) |
| MYHT-1-2 | 200 | ±1% | 420 | 150 | 280*245*172 | 6.1 |
| MYHT-1-4 | 400 | ±1% | 420 | 150 | 280*245*172 | 8.8 |
| MYHT-1-5 | 500 | ±1% | 420 | 150 | 280*245*172 | 10.5 |
| MYHT-1-7 | 800 | ±1% | 420 | 150 | 310*285*261 | 14 |
Highland Hydraulic pressure test kit main usage to measure of flow:
In the hydraulic loop system, the acquisition of breakpoints data and the measurement of flow rate, pressure and temperature of hydraulic system and components are able to be realized simultaneously. Through the data acquired MYHT Tester evaluates the performance of the system and components and judges the faults.
Note of digital hydraulic flow gauge :
1. Before starting the equipment, loading must be unscrewed (left screwing to the end). Otherwise, danger easy arises.
2. Near the loading valve is high-pressure oil inlet, the other is outlet. Loading will not be realized if the inlet and outlet are connected at wrong position.
3. Please shut off the power when the instrument not in use.
