Highland 90ml/R Displacement High Pressure Hydraulic Axial Piston Pump HPV90
110ml/R Displacement HPV90 Hydraulic Piston Pump
Product Description:
Through designing and manufacturing static hydraulic transmission, we are now able to offer a high quality and high-performance axial hydraulic pump and hydraulic motor assembly, as well as a hydraulic system.
Specifically, Highland HPV110 hydraulic pump is the variable type with built-in charge pump. Moreover, its controlling manner can be manual or hydraulic operated, allowing you to easily control the speed, power, and direction of the output shaft of the hydraulic motor.

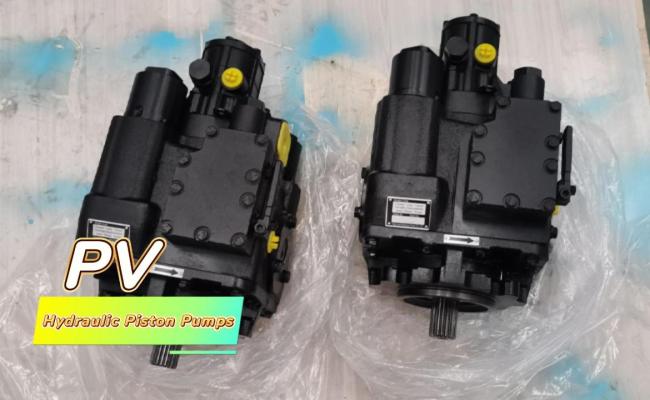

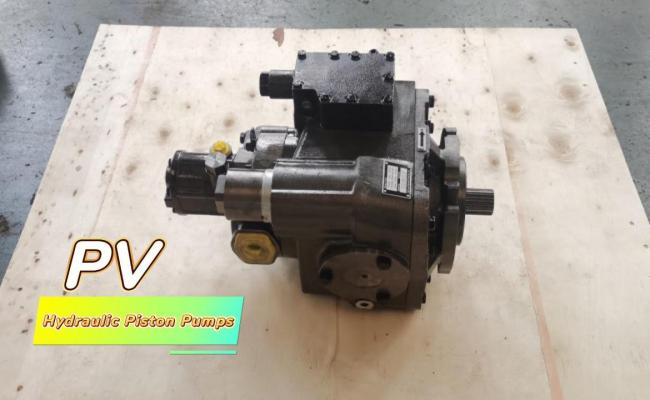

HPV90 Hydraulic Piston Pump Features:
HPV90 hydraulic pump provides a wide range of features to serve the needs of customers.
Firstly, it is equipped with axial variable displacement piston pump, which uses the swash plate structure. Secondly, it can be used in the hydrostatic transmissions with the closed loop circuit. In addition, it comes with two control modes, manual servo and hydraulic variable control. Lastly, it contains a variable displacement pump coupled with a charging oil pump and a fixed displacement motor integrated with a valve. In conclusion, HPV90 hydraulic pump provides numerous features for customers.
Hydraulic piston pumps technical specification:
| HPV Series Technical parameter | ||||||||
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight |
HPV series hydraulic pump hydraulic oil emptying |
kg | 45 | 46 | 63 | 64 | 82 | 88 |
|
HPV series hydraulic motor hydraulic oil emptying |
kg | 30 | 30 | 36 | 36 | 36 | 38 | |

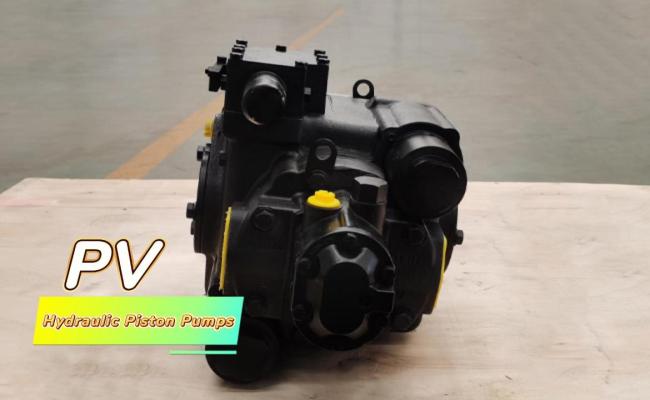

HPV90 Hydraulic Piston Pump Applications:
Our HPV90 hydraulic piston pumps are carefully processed to maintain high reliability and quality, as well as offering a timely delivery.
Including static hydraulic gearing selection and use, we provide excellent customer services.
HPV90 hydraulic pumps are highly applicable and can be used in many fields, such as agricultural machinery, combine harvester, engineering machinery, mixer trucks, mining machinery LHD trucks, hydraulic engineering machinery in aviation and transportation as well as other related equipment.
HPV90 Hydraulic Piston Pump FAQ:
- Q1: What is the Brand Name of the Hydraulic Piston Pumps?
- A1: The Brand Name is HIGHLAND.
- Q2: What is the Model Number of the Hydraulic Piston Pumps?
- A2: The series is HPV series, popular model is HPV90-MA-R-23.
- Q3: Where is the place of origin of the Hydraulic Piston Pumps?
- A3: The place of origin is China Shandong.
- Q4: What is the minimum order quantity for the Hydraulic Piston Pumps?
- A4: The minimum order quantity is 5 sets.
- Q5: What Certification does the Hydraulic Piston Pumps have?
- A5: The Hydraulic Piston Pumps have ISO9001 and Patent Certifications.
