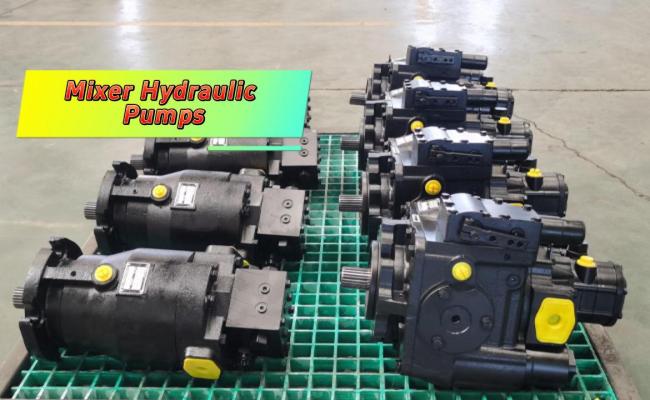

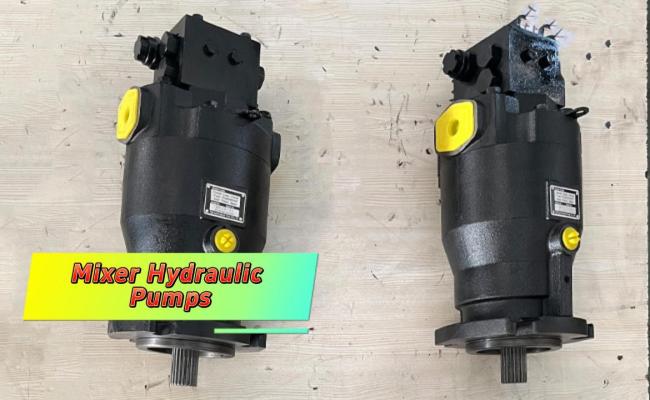

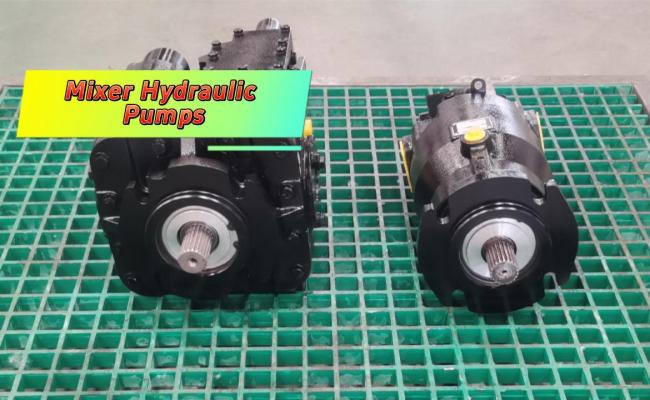

Closed circuit hydraulic piston pumps product introduction:
The hydraulic system of the mixer truck uses a closed circuit hydraulic transmission system. Highland hydraulic piston pump is the component that provides the power for the hydraulic system. It delivers oil with a specific flow and pressure to the system, making it the key component of the hydraulic system. Our Highland hydraulic is a professional producer, our company could provide high efficiency high performance hydraulic piston pump with matched hydraulic motors
High efficiency hydraulic piston pumps main features:
1. High efficiency, durable, robust design meets the demands of harsh work conditions for applications in mixer truck.
2. Mixer truck hydraulic piston pumps has swash plate structure.
3. Be Suitable for closed-loop circuit system of mixer hydraulic piston pump.
4. Hydraulic piston pumps have manual servo and hydraulic variable control mode.
5. Hydraulic pumps are variable displacement pumps with a charging oil pump.
6. Closed circuit hydraulic piston pump
Hydraulic piston pumps technical specifications:
| 20 series PV hydraulic pump and MF hydraulic motor | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 89.0 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| Weight |
PV series hydraulic pump hydraulic oil emptying |
kg | 45 | 53 | 63 | 78 |
|
PV series hydraulic motor hydraulic oil emptying |
kg | 30 | 34 | 40 | 47 | |
Company service of hydraulic piston pumps:
Quick response within 24 hours.
Provide technical guidance.
Help customer solve hydraulic confusion.
Excellent after-sale service.
100% factory testing before shipment.
Preferential factory price, short delivery time.
Hydraulic oil notice of hydraulic piston pumps:
Hydraulic system pollution will affect the normal operation of concrete mixer truck at any time, and affect the service life of hydraulic piston pumps, serious damage to hydraulic pump motor, so it is very important for the hydraulic system.
Oil change and oil filter replacement:
1. 500 working hours for first run.
2. Replace every 1500 working hours from now on, but at least once a year.
3. Note: When changing oil, replace hydraulic filter element at the same time.
