Left / Right Rotation 42MPa Agricultural Hydraulic Pumps 1 Year Warranty
Left/Right Rotation 42MPa Agricultural Hydraulic Pumps 1 Year Warranty
Product Description:

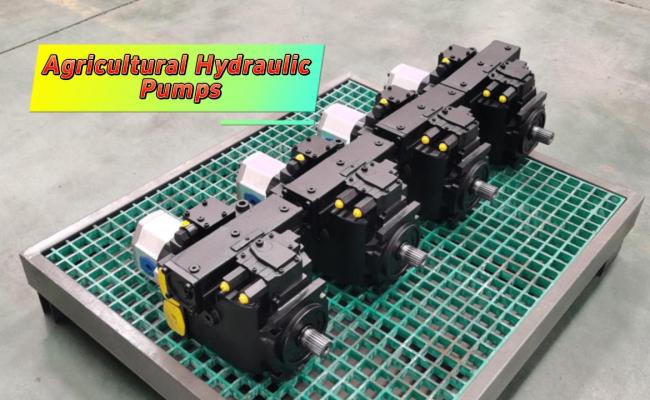

In order to address the needs of the agricultural sector, our company has designed and developed a new generation of hydraulic products specifically for agriculture usage -- Highland agricultural hydraulic variable displacement piston pumps.
Highland hydraulic pumps feature compact size and variable displacement, making them suitable for a variety of agricultural machines, including combine harvesters, forage harvesters, tractors and other machineries. They also supply the power necessary for operations including harvesting, conveying, loading and unloading.
In addition to their versatility, Highland agricultural hydraulic piston pumps can offer superior performance, higher safety and substantial efficiency. They can operate under various pressures and flow conditions to meet different load demands and reduce energy consumption. Moreover, they have been designed to be quick and easy to install, maintain and control.
Features:

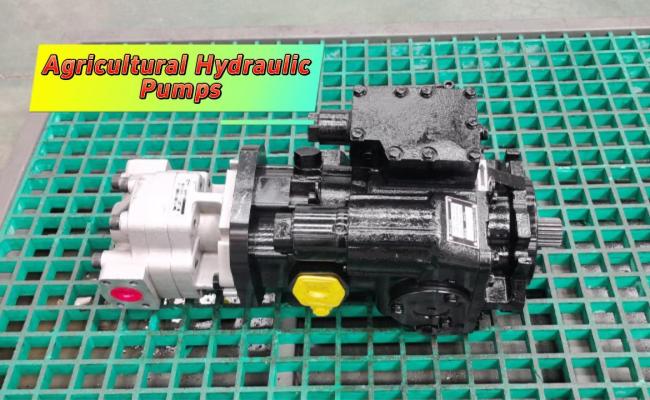

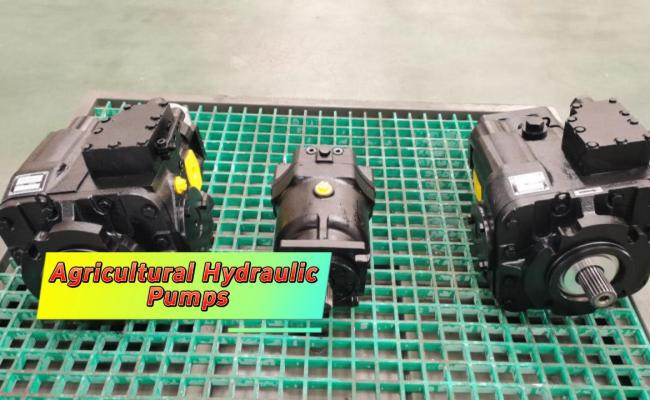

Highland agricultural hydraulic pump contains some amazing main features. Firstly, it has an Axial Variable Displacement Piston Pump, which is a kind of swash plate structure pump. This pump is suitable for hydrostatic transmissions with closed-loop circuit, as well as manual servo and hydraulic variable control. Moreover, the product is equipped with two types of pumps, a variable displacement pump with a charging oil pump and a fixed displacement motor with an integrated valve.
Technical Parameters:
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight | HPV series hydraulic pump hydraulic oil emptying |
kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil emptying |
kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Applications:
As science and technology develops, hydraulic farming has become increasingly popular over the past few decades. With the help of our hydraulic pumps motors, agricultural work can be done more easily. One can use them on various types of agricultural equipment, ranging from combine harvesters to tractors, sprayers, track loaders and forage harvesters.
These hydraulics are much more efficient than manual labor as they reduce the amount of time and energy required for cultivating the land. While operating these machines requires skilled personnel, using our hydraulic pumps motors can ensure that the crop yields are maximized with lesser overall effort.
Support and Services:
Agricultural Hydraulic Pumps Technical Support and Services
We offer comprehensive technical support and services for our Agricultural Hydraulic Pumps. Our team of experienced engineers and technicians can provide you with expert advice on product selection, and maintenance. We can also provide you with spare parts, and repairs.
Our customer service team is available 24/7 to answer any questions or queries you may have. We offer free telephone support, and can also provide on-site visits to ensure your pump is running correctly. We also offer online support for troubleshooting and installation.
We understand that our customers require reliable and efficient pumps. We are committed to providing the highest quality products and services to ensure the optimal operation of your Agricultural Hydraulic Pumps.
FAQ:
Q: What is the brand name for Agricultural Hydraulic Pumps?
A: The brand name is HIGHLAND.
Q: Can you provide the model number for Agricultural Hydraulic Pumps?
A: The model number is HPV110.
Q: Where is the place of origin for Agricultural Hydraulic Pumps?
A: The place of origin is CHINA DEZHOU.
Q: What certifications do Agricultural Hydraulic Pumps have?
A: Agricultural Hydraulic Pumps have PATENT and ISO CERTIFICATE.
Q: What is the minimum order quantity for Agricultural Hydraulic Pumps?
A: The minimum order quantity is 5 sets.
