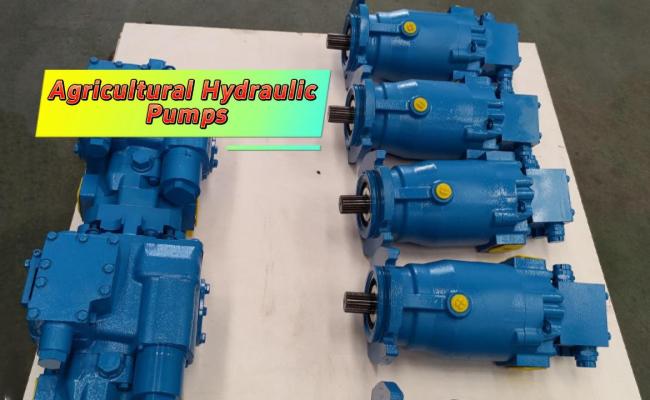

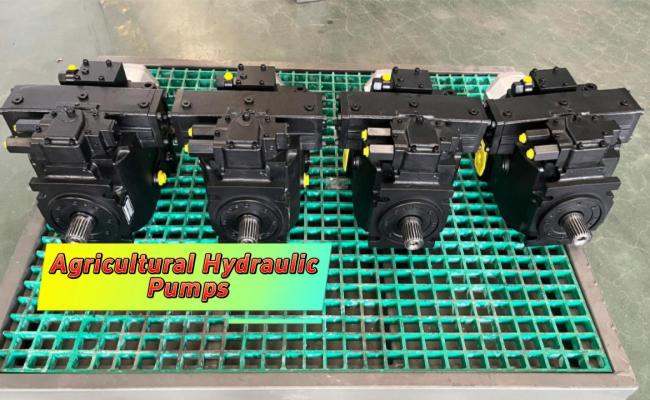

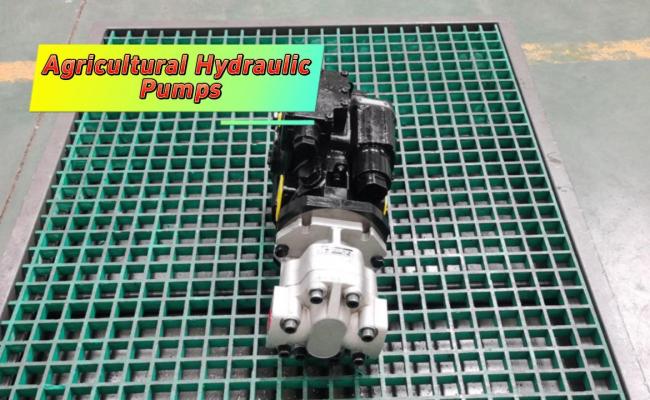

42MPa Agricultural Hydraulic Pumps For Tractor Hydraulic System Components
Highland 42MPa Agricultural Hydraulic System Components Hydraulic Pumps
Product Description:
In order to meet the needs of the agricultural sector, our company Highland hydraulic has designed and developed a new generaion of agricultural hydraulic variable displacement piston pumps. Highland variable displacement piston pumps have some very desirable features that make them suitable for use in various types of agriculture machinery, such as combine harvesters, forage harvesters, tractors, and other machineries. They offer power drives for different functions, like harvesting, conveying, loading and unloading.
Highland hydraulic piston pumps are superior in terms of performance, safety and energy efficiency. They can be used in different pressure and flow conditions, easily adapting to different load requirements. This also helps reduce energy consumption, making them highly efficient for agricultural operations. In addition, these pumps are easy to install, maintain, and control.
Features:
- Firstly, Highland axial variable displacement piston pump has a swash plate structure, making it suitable for hydrostatic transmissions with closed-loop circuits. This structure enables manual servo and hydraulic variable control for both variable displacement pumps and fixed displacement motors.
- Bearings of Variable Axial Piston Pumps are all tapered roller bearing, which can load heavy external axial forces.
- Highland Hydraulic pumps can be connected with other additional pumps.
- When Hydraulic pumps operated mechanically, the Servo displacement can control and keep the angle of swash plate and pump displacement.
Technical Parameters:
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight | HPV series hydraulic pump hydraulic oil emptying |
kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil emptying |
kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Applications:
Currently, the advances in science and technology have made agricultural hydraulics widely available. Our hydraulic pumps motors make hydraulic farming effortless.
Highland agriculture hydraulic pumps motors are suitable for a vast array of agricultural equipment, ranging from combine harvesters, tractors, sprayers, track loaders to forage harvesters. It also works well with other kinds of farm machinery.
Support and Services:
Agricultural Hydraulic Pumps Technical Support and Service
We provide technical support and service for our agricultural hydraulic pumps. Our technical support team includes experienced engineers and technicians who are available to help with product selection, troubleshooting, and repair.
A production base of 7000 square meters, independent research and development, production, and factory direct sales.
The company is a manufacturer and service provider of hydraulic systems and components. For more than 20 years since its establishment, the company has been committed to solving the confusion in the field of hydraulics.
FAQ:
Q: What is the brand name of the Agricultural Hydraulic Pumps?
A: The brand name of the Agricultural Hydraulic Pumps is HIGHLAND.
Q: What is the model number of the Agricultural Hydraulic Pumps?
A: The model number of the Agricultural Hydraulic Pumps is HPV110.
Q: Where is the place of origin of the Agricultural Hydraulic Pumps?
A: The place of origin of the Agricultural Hydraulic Pumps is from China Dezhou.
Q: What are the certifications of the Agricultural Hydraulic Pumps?
A: The certifications of the Agricultural Hydraulic Pumps are PATENT and ISO CERTIFICATE.
Q: What is the minimum order quantity of the Agricultural Hydraulic Pumps?
A: The minimum order quantity of the Agricultural Hydraulic Pumps is 5 sets.
