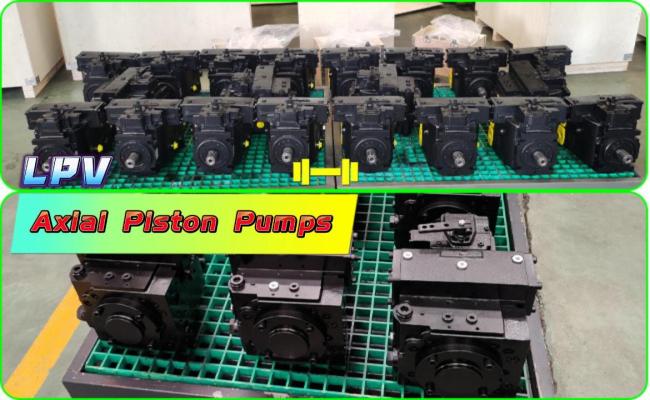

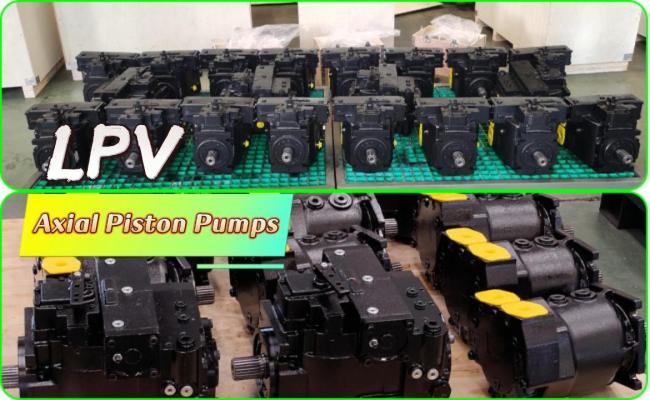

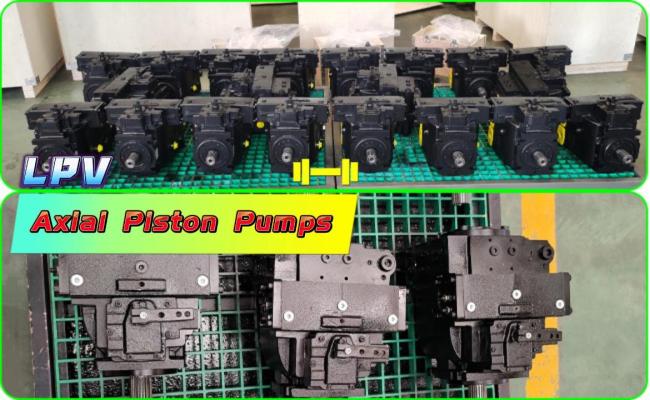

Highland High Pressure Axial Piston Hydraulic Oil Pump Manual Control
Highland High Pressure High Performance Axial Piston Hydraulic Oil Pump
Product Description:
At Highland, we provide high quality and high-performance hydraulic pump and motor assembly and hydraulic system. Highland variable pump has a charge pump and the motor is quantitative or variable with a valve assembly. Control of Highland variable displacement pump and motor can be done manually or hydraulically. This allows for easy control of the output shaft speed, direction and power.
Highland hydraulic pumps offer reliable variable displacement medium pressure axial piston pumps for mobile applications. They are silent, efficient and have an a operating pressure of up to 42Mpa.
Features:
When it comes to maximizing performance, efficiency, and profit, axial piston pumps offer suitable solutions for various applications.
Highland hydraulic pumps operate at maximum efficiency, which makes them cost-effective in the long run. The optimized design ensures compactness, light weight, and flexible. It also guarantees reliable quality and performance for precise control.
To meet different needs, it offers a broad range of displacement from 30-130 cm² per round. The pressure capability is from 420 bar transient pressure for better pressure relief.
Technical Parameters:
| LPV hydraulic pump and LMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight | LPV series hydraulic pump hydraulic oil emptying |
kg | 45 | 46 | 63 | 64 | 82 | 88 |
| LMF series hydraulic motor hydraulic oil emptying |
kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Applications:
Highland Axial piston pumps are widely used in hydraulic transmission systems, especially in high-power systems. Such systems are often seen in the construction, agricultural, coal mining, oil exploration, aerospace, and shipbuilding industries.
Highland Axial piston pumps are also suitable for high-pressure, large-flow operations in which the flow needs to be adjusted. They are commonly seen in planers, broaching machines, and hydraulic machines.
Support and Services:
Highland Axial Piston Pumps Technical Support and Service
We are committed to providing our customers with the best technical support and service for their Axial Piston Pumps. We offer a range of services to help you keep your pumps running smoothly, from routine maintenance to troubleshooting and repair. Our team of experienced technicians is available to answer your questions and provide personalized advice and help.
FAQ:
Q: What is the brand name of the Axial Piston Pumps?
A: The brand name is HIGHLAND.
Q: What is the model number of the Axial Piston Pumps?
A: The model number is LPV110.
Q: Where is the Axial Piston Pumps manufactured?
A: The Axial Piston Pumps are manufactured in Dezhou, China.
Q: Does the Axial Piston Pumps have a patent certificate?
A: Yes, the Axial Piston Pumps has a patent certificate.
Q: What is the minimum order quantity of the Axial Piston Pumps?
A: The minimum order quantity is 5 sets.
