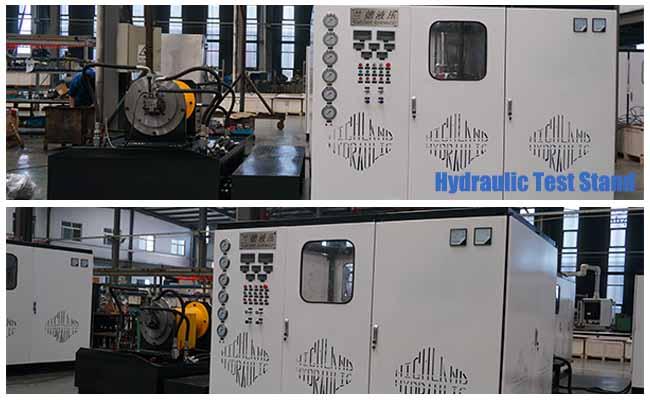

HIGHLAND High Performance Hydraulic Test Stands 90 Kw 380 L/Min Flow Rate Equipment
Product Description:
Hydraulic Test Stands are designed for hydraulic system testing, especially for rotary drilling rigs. With a power of 90 Kw, a flow rate of 380 L/min, and a pressure of 35 Mpa, it has a compact structure and is well suited for hydraulic system testing. It can provide reliable and accurate testing results for different types of hydraulic systems. With its high-performance and efficiency, it can effectively improve the reliability and accuracy of hydraulic system testing. Moreover, its simple operation and easy maintenance make it a perfect choice for hydraulic system testing.
Hydraulic Test Stands provide a safe and efficient way for testing the performance of rotary drilling rigs by simulating the actual working environment of the drill rig. It is suitable for a wide range of applications, such as testing the pressure, flow, temperature, and other parameters of the hydraulic system. It is also ideal for testing the performance of the actual components of the hydraulic system, such as pumps, valves, cylinders, and other components.
By providing accurate and reliable testing results, Hydraulic Test Stands help to ensure the safety and accuracy of the rotary drilling rigs. Moreover, it can also reduce downtime and improve the overall efficiency of the testing process. With its compact structure, it can be easily installed in any environment and can be used for a long time with minimal maintenance.
Hydraulic Test Stands are the perfect choice for anyone looking to improve the performance and safety of their rotary drilling rigs. With its powerful performance and efficient operation, it is the ideal solution for hydraulic system testing and can provide reliable and accurate results for different types of hydraulic systems.
Features:
- Product Name: Hydraulic Test Stands
- Characteristic: Compact Structure
- Brand: HIGHLAND
- Flow rate: 380 L/min
- Usage: Rotary Drilling Rig
- Specialty: Hydraulic Testing Machine, Hydraulic Test Stands Customization, Hydraulic Pressure Testing Device
Technical Parameters:
| Pressure(mpa) | 35mpa/42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic motor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Applications:
Hydraulic Test Stands are widely used in the hydraulic performance test of rotary drilling rigs. The HIGHLAND YST380 series hydraulic test stands from China Dezhou boast clear pipeline connection, highpressure (35Mpa) and power (90Kw) characteristics. With a minimum order quantity of 1set, the hydraulic test stands are available at competitive prices (USD25000-45000/set), with plastic film packaging, and delivery within 30-60 working days. Payment is accepted via T/T or Western Union, and the supplier is able to produce up to 5 sets per month. The hydraulic test stands are approved for CE certification and are popular for their reliable performance.
Customization:
- Brand Name: HIGHLAND
- Model Number: YST380 Series
- Product Name: Hydraulic Test Stands
- Place of Origin: China Dezhou
- Certification: CE
- Brand: HIGHLAND
- Minimum Order Quantity: 1set
- Flow rate: 380 L/min
- Power: 90 Kw
- Advantage: Clear Pipeline Connection
- Price: USD25000-45000/set
- Packaging Details: Plastic film packaging
- Delivery Time: 30-60 working days
- Payment Terms: T/T, Western Union
- Supply Ability: 5 sets per month

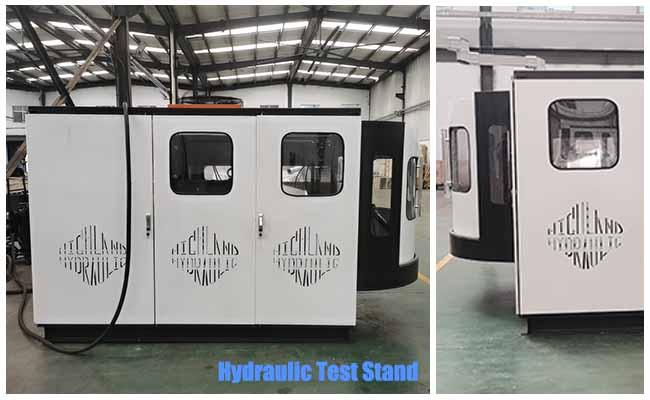

Rotary Drilling Rig Hydraulic Test Stands, Hydraulic Test Stands Factory, Hydraulic Test Stands Factory in China Dezhou. HIGHLAND YST380 Series Hydraulic Test Stands is designed for precise testing and diagnosis of hydraulic system and components. It provides accurate and reliable performance. With clear pipeline connection and convenient operation, it is widely used in engineering machinery, ships, cars and other industries.

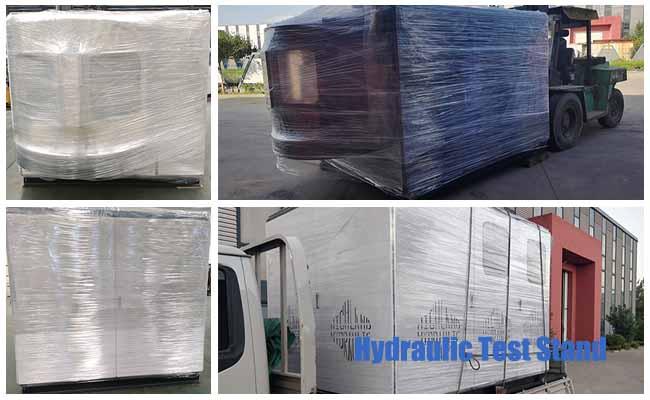

Packing and Shipping:
- The product will be securely packaged to ensure the safety of the equipment during shipping.
- We will provide all necessary documents to ensure the product is shipped correctly.
- We will arrange for the product to be shipped to the customer's specified location using an appropriate courier.
FAQ:
- Q: What is the brand name of Hydraulic Test Stands?
- A: The brand name of Hydraulic Test Stands is HIGHLAND.
- Q: What is the model number of the Hydraulic Test Stands?
- A: The model number of the Hydraulic Test Stands is YST380 Series.
- Q: Where is the Hydraulic Test Stands manufactured?
- A: The Hydraulic Test Stands is manufactured in Dezhou, China.
- Q: What is the minimum order quantity of the Hydraulic Test Stands?
- A: The minimum order quantity of the Hydraulic Test Stands is 1set.
- Q: What is the price of the Hydraulic Test Stands?
- A: The price of the Hydraulic Test Stands is USD25000-45000/set.
-
