Removable For Use MYHT-1-5 Hydraulic Tester For Joint Harvester Testing hydraulic Pumps and Motors
Product Description:
MYHT-1-5 Hydraulic Tester is a newly released product from the leading hydraulic tester manufacturer. It is designed to offer reliable, accurate, and durable performance with removable for use feature and data display function. It has a wide range of oil temperature ranging from -20 ℃ to 150 ℃, and it is suitable for joint harvester. It also features with a maximum pressure of 420 bar, making it an ideal choice for many industrial applications. It is equipped with a model number MYHT-1-5, which makes it easier for customers to find the right hydraulic tester for their needs and requirements. With the advanced technology and innovative features, MYHT-1-5 Hydraulic Tester is the perfect choice for those who seek for superior quality hydraulic tester.
Features:
- Hydraulic Flow Meters from HIGHLAND with model number MYHT-1-5
- Oil temperature range: -20℃ -150℃
- Characteristic: Removable For Use
- Max Pressure: 420 Bar
- Manufactured by a leading Hydraulic Tester Manufacturer and Hydraulic Tester Factory
Technical Parameters:
| MYHT Hydraulic Tester Technial Date | ||||||
| Model | Flow(L/min) | Flow Precision | Pressure(bar) | Oil Temperature(°C) | Dimensions(mm) | Weight(Kg) |
| MYHT-1-2 | 200 | ±1% | 420 | 150 | 295*265*210 | 6.1 |
| MYHT-1-4 | 400 | ±1% | 420 | 150 | 295*265*210 | 8.8 |
| MYHT-1-5 | 500 | ±1% | 420 | 150 | 295*265*210 | 10.5 |
| MYHT-1-7 | 800 | ±1% | 420 | 150 | 310*285*261 | 14 |
Applications:
Packing and Shipping:

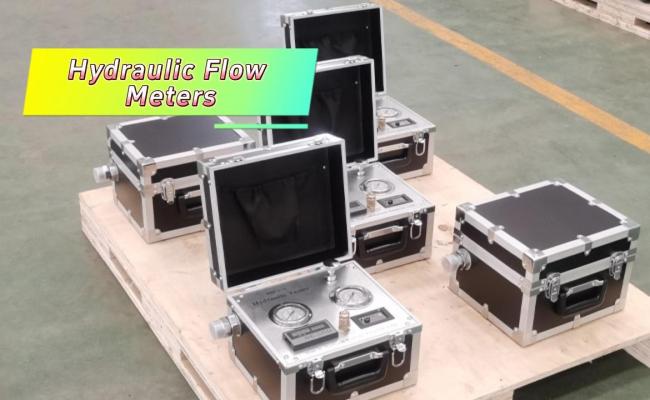

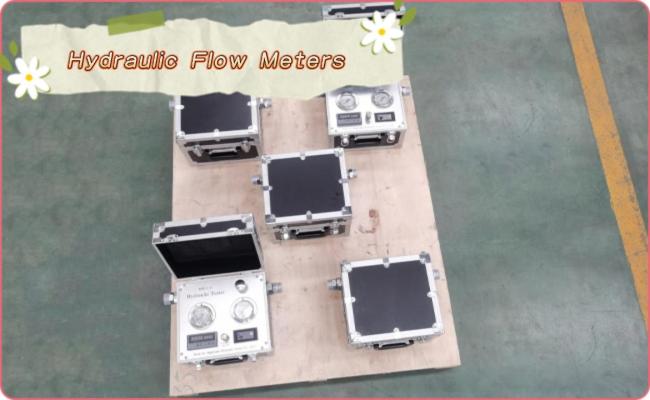

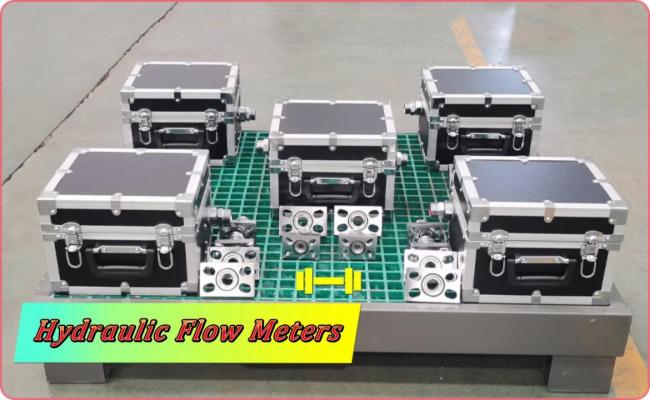

Hydraulic flow meters are packaged and shipped with a range of protective materials to ensure they are delivered to customers safely and in perfect condition. Usually, hydraulic flow meters are packaged in wooden cases.
Shipping is typically done using a trusted third-party carrier. The carrier is chosen based on the size and weight of the package, the distance to be traveled, and the customer’s desired delivery speed.
FAQ:
Q1: What is the Brand Name of the Hydraulic Flow Meters?
A1: The Brand Name of the Hydraulic Flow Meters is HIGHLAND.
Q2: What is the Model Number of the Hydraulic Flow Meters?
A2: The Model Number of the Hydraulic Flow Meters is MYHT-1-5.
Q3: Where is the Place of Origin of the Hydraulic Flow Meters?
A3: The Place of Origin of the Hydraulic Flow Meters is China Dezhou.
Q4: What is the Minimum Order Quantity of the Hydraulic Flow Meters?
A4: The Minimum Order Quantity of the Hydraulic Flow Meters is 1 set.
Q5: What is the Price of the Hydraulic Flow Meters?
A5: The Price of the Hydraulic Flow Meters is USD1850/set.
