Highly Efficient Pressure Testing Equipment From HIGHLAND Hydraulic Tester For Joint Harvester
Product Description:

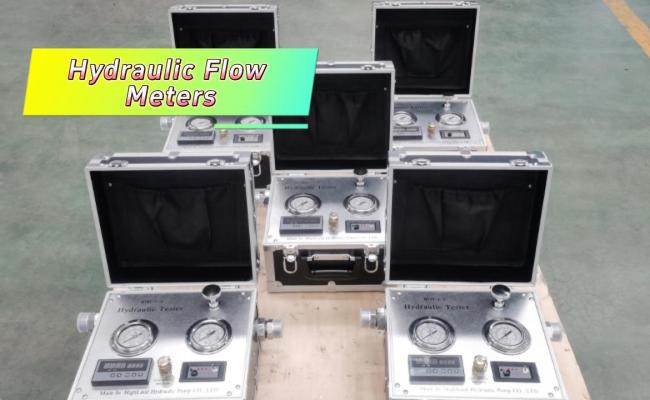

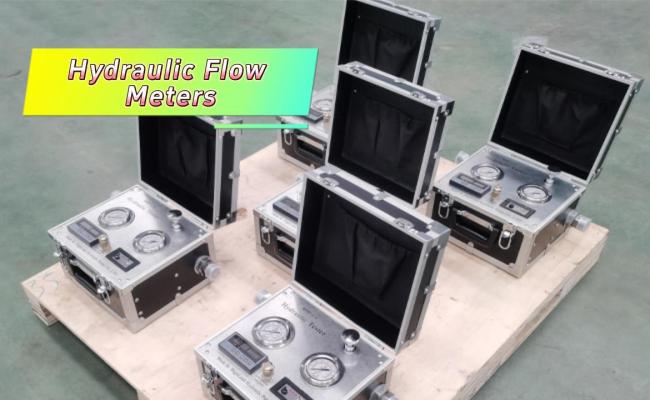

Highland MYHT-1-5 Hydraulic Tester is a product from Hydraulic Tester Factory, which is designed to test Hydraulic Flow Rate, Pressure and Temperature. It features a maximum pressure of 420 Bar and a flow rate of 500L/min. Highland Hydraulic Tester is also removable for use, which makes it very convenient for users. With the function of testing hydraulic flow rate, pressure and temperature, MYHT-1-5 Hydraulic Tester is suitable for many applications. It can be used in various industries such as manufacturing, engineering, automotive and so on.
Moreover, Highland MYHT-1-5 Hydraulic Tester is made of high-quality materials, which make it durable and reliable. It is also easy to use and maintain. With its compact size and light weight, Highland Hydraulic Tester is perfect for use in small places. It can be used in both indoor and outdoor environments, making it very versatile. MYHT-1-5 Hydraulic Tester is an ideal choice for those who are looking for a reliable and accurate Hydraulic Tester.
Features:
- Product Name: Highland MYHT-1-5 Hydraulic Tester
- Model Number: Highland MYHT-1-5
- Usage: Joint Harvester
- Oil temperature range: -20℃ -150℃
- Flow Rate: 500L/min
- Features:
- Data Display Hydraulic Tester
- High Quality Hydraulic Flow Meter
- Precise Hydraulic Tester Factory
Technical Parameters:
| Highland MYHT Hydraulic Tester Technial Date | ||||||
| Model | Flow(L/min) | Flow Precision | Pressure(bar) | Oil Temperature(°C) | Dimensions(mm) | Weight(Kg) |
| MYHT-1-2 | 200 | ±1% | 420 | 150 | 295*265*210 | 6.1 |
| MYHT-1-4 | 400 | ±1% | 420 | 150 | 295*265*210 | 8.8 |
| MYHT-1-5 | 500 | ±1% | 420 | 150 | 295*265*210 | 10.5 |
| MYHT-1-7 | 800 | ±1% | 420 | 150 | 310*285*261 | 14 |
Applications:
HIGHLAND is a leading manufacturer in China offering MYHT-1-5 Hydraulic Flow Meters. Highland hydraulic flow meters are used to measure the rate, pressure and temperature of hydraulic pumps. With its removable for use feature, the product offers exceptional ease of use and convenience. It is an ideal solution to detect the performance of joint harvesters. The product is certified with CE, and can be purchased in minimum order quantity of 1 set. The product is available at a cost of USD1850/set and is shipped in wooden cases. The delivery time is 15-30 working days and customers can make payment via T/T, Western Union. The company offers monthly supply of up to 100 sets of this product.

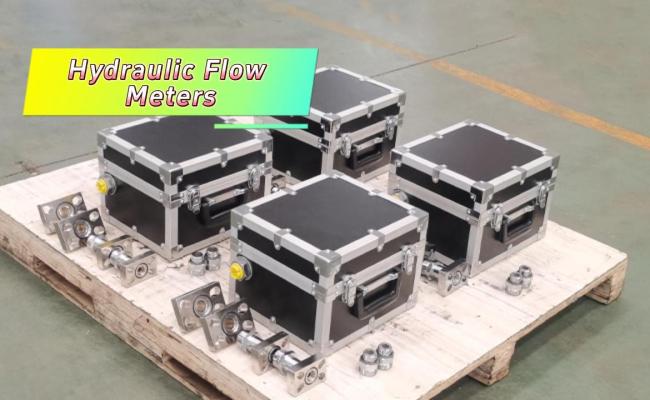

Packing and Shipping:
For packaging and shipping of Hydraulic Flow Meters, we use a wooden case. The case is then labeled with the customer’s name, address, and delivery instructions.
The shipping method is determined by the customer. We offer a variety of shipping options, including ground, air, and express delivery. All deliveries are insured and tracked to ensure safe and timely delivery.
FAQ:
A1: HIGHLAND MYHT-1-5 is a hydraulic flow meter manufactured by Dezhou, China, and it is certified with CE.
A2: The minimum order quantity is 1 set.
A3: The price of HIGHLAND MYHT-1-5 is USD1850/set.
A4: HIGHLAND MYHT-1-5 is packaged in wooden case.
A5: The delivery time is 15-30 working days.
