Product Description:

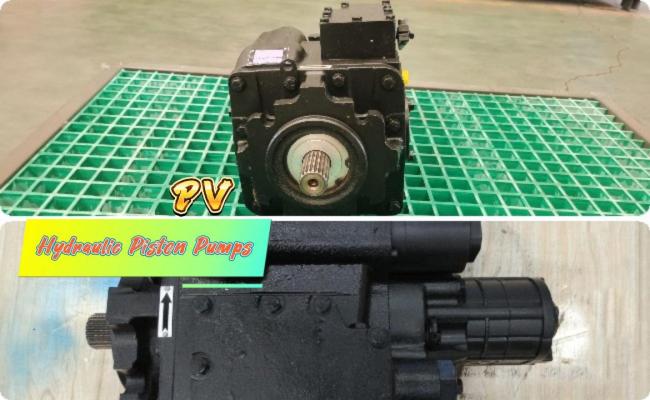

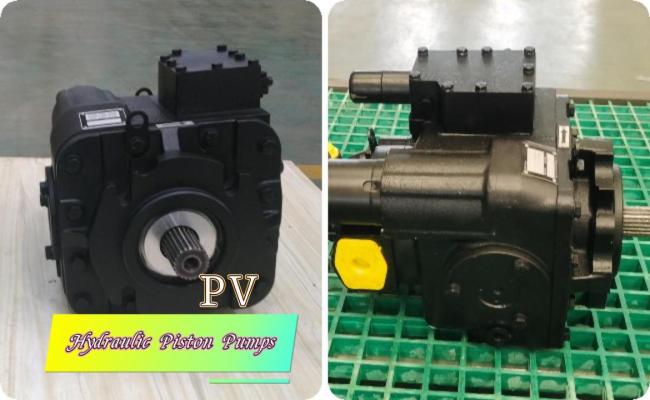

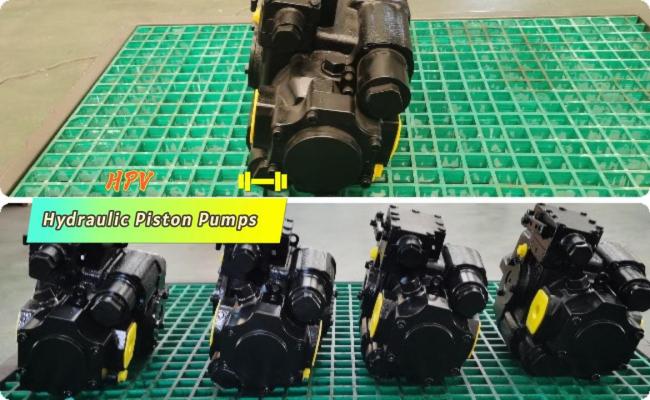

Highland Hydraulic Piston Pumps is a high quality piston pump designed for various hydraulic applications. Made from durable cast iron material, Highland hydraulic pump is built to withstand heavy duty usage and provide long-lasting performance.
Highland Hydraulic Piston Pumps comes in a sleek black color, making it not only functional but also aesthetically pleasing. The use of cast iron as the material ensures the pump's strength, durability, and resistance to corrosion.
The name says it all - Hydraulic Piston Pumps. Harvester hydraulic pump is specifically designed to use the power of hydraulic transmission to efficiently move fluids in a wide range of industrial and commercial settings. Its piston design allows for high pressure and high flow rate, making it suitable for heavy-duty applications.
The principle behind Highland Hydraulic Piston Pumps is hydraulic transmission. This means that the pump uses pressurized fluid to generate power and transfer it to mechanical components. This allows for smooth and efficient operation, reducing the risk of breakdowns and increasing productivity.
- High quality hydraulic pump
- Durable cast iron material
- Efficient hydraulic transmission
- High pressure and high flow rate
- Sleek black color
- Suitable for heavy-duty applications
Highland Hydraulic Piston Pumps is the perfect choice for anyone in need of a reliable and high-quality piston pump. Its strong and durable construction, along with its efficient hydraulic transmission principle, makes it a valuable addition to any industrial or commercial setting. Don't miss out on the opportunity to improve your productivity and efficiency with the Hydraulic Piston Pumps.
Features:
- Product Name: Hydraulic Piston Pumps
- Structure: Variable Displacement Piston Pump
- Hydraulic System: Closed Loop Axial Hydraulic Pump
- Warranty: 1 Year
- Type: Piston Pump
- High quality hydraulic piston pump
- Piston pump for sale
Technical Parameters:
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight | HPV series hydraulic pump hydraulic oil emptying |
kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil emptying |
kg | 30 | 30 | 36 | 36 | 36 | 38 | |
| Attribute | Value |
|---|---|
| Type | Piston Pump |
| Product Name | Hydraulic Piston Pumps |
| Standard Export Package | Plywood Case |
| Structure | Variable Displacement Piston Pump |
| Max Pressure | 42Mpa |
| Rated Pressure | 35Mpa |
| Application | Agricultural Harvester and Tractor |
| Principle | Hydraulic Transmission |
| Power Source | Hydraulic |
| Material | Cast Iron |
Applications:
Brand Name: HIGHLAND
Model Number: HPV110
Place of Origin: CHINA DEZHOU
Certification: PATENT CERTIFICATE
Minimum Order Quantity: 5 Sets
Price: USD900-1400/Set
Packaging Details: Plywood Case
Delivery Time: 10 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 200 Sets/Month
Hydraulic System: Closed Loop Axial Hydraulic Pump
Function : Hydraulic System Components
Package: Plywood Case
Rated Pressure: 35Mpa
Product Name: Hydraulic Piston Pumps
HIGHLAND HPV110 hydraulic pump is a high quality and reliable component of any hydraulic system. It is widely used in various industries and applications, including:
- Construction: Highland HPV110 hydraulic pump is commonly used in construction machinery such as excavators, bulldozers, and cranes. Its powerful and efficient performance ensures smooth and precise movement of heavy equipment, making it an essential component for any construction project.
- Mining: In the mining industry, Highland HPV110 hydraulic pump is utilized in heavy-duty equipment such as dump trucks, loaders, and drilling rigs. Its durability and high pressure rating make it suitable for the harsh and demanding conditions of mining operations.
- Agriculture: Highland HPV110 hydraulic pump is also commonly used in agricultural machinery such as tractors, harvesters, and sprayers. Its ability to handle high pressure and heavy loads makes it an ideal choice for these types of equipment.
- Manufacturing: The precision and reliability of Highland HPV110 hydraulic pump make it a popular choice in various manufacturing processes, including metal forming, plastic injection, and assembly lines.
- Transportation: Highland HPV110 hydraulic pump is a key component in the hydraulic systems of trucks, buses, and other types of vehicles. Its efficient and smooth operation ensures safe and reliable transportation.
HIGHLAND HPV110 hydraulic pump offers a range of features and benefits that make it a top choice for various applications:
- High Quality: Highland HPV110 hydraulic pump is made with high quality materials and undergoes strict quality control measures to ensure durability and reliability.
- Efficient Performance: With a closed loop axial design, Highland HPV110 hydraulic pump provides smooth and precise movement, resulting in efficient performance and increased productivity.
- Compact Design: The compact design of Highland HPV110 hydraulic pump allows for easy installation and integration into various hydraulic systems.
- High Pressure Rating: With a rated pressure of 35Mpa, Highland HPV110 hydraulic pump can handle heavy loads and withstand demanding working conditions.
- Long Service Life: The robust construction and high quality components of Highland HPV110 hydraulic pump ensure a long service life with minimal maintenance.
The HIGHLAND HPV110 hydraulic pump can be ordered in sets of 5 or more. The price ranges from USD900 to USD1400 per set, depending on the quantity ordered. The pump is packaged in a sturdy plywood case for safe transportation and delivery. Delivery time is typically 10 working days, and payment can be made through T/T or Western Union. With a supply ability of 200 sets per month, we can ensure timely delivery to meet your needs.
The HIGHLAND HPV110 hydraulic pump is a top-of-the-line product that offers efficient performance, high quality, and durability. Its versatility and reliability make it an essential component for various applications and industries. With its compact design, high pressure rating, and long service life, the HPV110 hydraulic pump is the perfect choice for your hydraulic system needs.
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is HIGHLAND. - Q: What is the model number of this product?
A: The model number of this product is HPV110. - Q: Where is this product manufactured?
A: This product is manufactured in China, Dezhou. - Q: Does this product have any certifications?
A: Yes, this product has a patent certificate. - Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 5 sets. - Q: What is the price range for this product?
A: The price for this product ranges from USD900 to USD1400 per set. - Q: How is this product packaged?
A: This product is packaged in plywood cases. - Q: How long will it take for this product to be delivered?
A: This product will be delivered within 10 working days. - Q: What are the accepted payment terms for this product?
A: The accepted payment terms for this product are T/T and Western Union. - Q: How many sets of this product can be supplied in a month?
A: This product has a supply ability of 200 sets per month.
