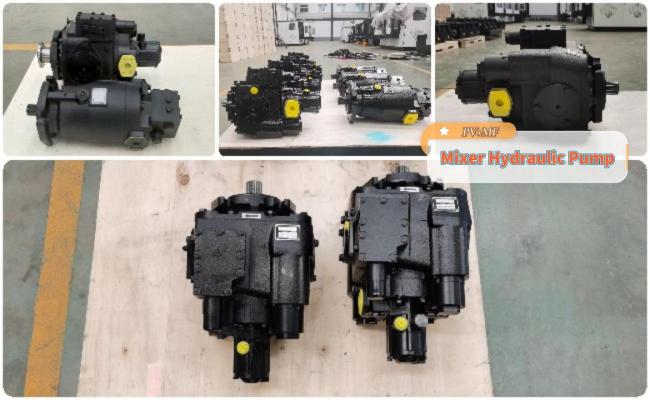

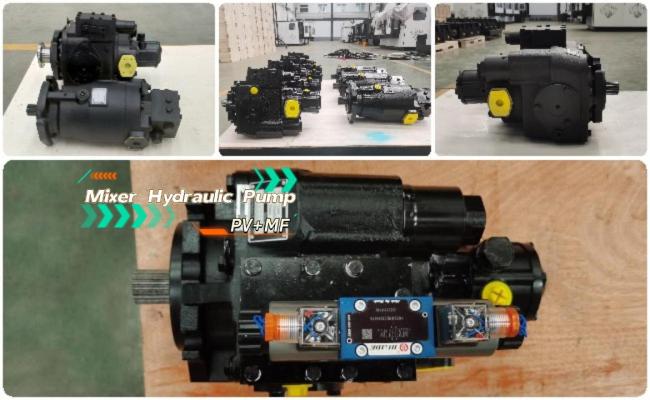

35Mpa Rated Pressure Mixer Hydraulic Pump For Heavy-Duty Applications
35Mpa Rated Pressure Mixer Hydraulic Pump for Heavy-Duty Applications
Product Description:
Highland Mixer Hydraulic Pump is a hydraulic transmission device designed specifically for cement mixers and transit mixers. Made of high-quality cast iron, this pump provides a reliable and durable solution for your mixing needs.
With a rated pressure of 35Mpa and a peak pressure of 42Mpa, Highland mixer hydraulic pump can handle heavy-duty mixing tasks with ease. The variable displacement feature allows for precise control of the output flow, making it suitable for a wide range of mixing applications.
The principle behind this pump is hydraulic transmission, which uses the power of pressurized fluid to drive the mixing components. This ensures a smooth and efficient mixing process, without the need for manual effort.
Highland Mixer Hydraulic Pump is a closed loop piston pump, meaning it uses a looped system to continuously circulate the fluid, resulting in a more stable and consistent output. This also reduces the chances of leakage, making it a safer and more environmentally friendly option.
- Designed for cement mixers and transit mixers
- Made of high-quality cast iron for durability
- Rated pressure of 35Mpa and peak pressure of 42Mpa
- Variable displacement for precise control of output flow
- Principle of hydraulic transmission for efficient mixing
- Closed loop piston pump for stable and consistent output
Overall, the Mixer Hydraulic Pump is a reliable and efficient solution for all your mixing needs. Its high-quality construction and advanced features make it a top choice for professionals in the construction industry. Don't settle for subpar mixing results, choose the Mixer Hydraulic Pump for optimal performance and durability.
Features:
- Product Name: Mixer Hydraulic Pump
- Rated Pressure: 35Mpa
- Speed: 3200rpm
- Medium: Hydraulic Oil
- Material: Cast Iron
- Power: Hydraulic
- Transit Mixer Hydraulic Pump
- Cement Mixer Hydraulic Pump
- Mixer Hydraulic Piston Pump
Technical Parameters:
| Product Name: | Mixer Hydraulic Pump |
|---|---|
| Type: | Variable Displacement Closed Loop Piston Pump |
| Application: | Hydraulic Pump for Mixer Truck |
| Material: | Cast Iron |
| Medium: | Hydraulic Oil |
| Speed: | 3200rpm |
| Rated Pressure: | 35Mpa |
| Peak Pressure: | 42Mpa |
| Working Principle: | Hydraulic Transmission |
| Power: | Hydraulic |
| Warranty: | 1 Year |
| Keywords: | Mixer Hydraulic Pump, Mixer Hydraulic Piston Pump |
Applications:
Certification: PATENT AND ISO CERTIFICATE
Are you tired of manually mixing cement for your construction projects? Look no further, because HIGHLAND's Mixer Hydraulic Pump is here to make your work easier and more efficient.
Highland Mixer Hydraulic Pump is specifically designed for cement mixers, making it the perfect tool for construction sites, road repair projects, and other concrete-related applications.
Highland PV23 model hydraulic pump is a variable displacement closed loop piston pump, meaning it can adjust the flow of hydraulic fluid according to the needs of your mixer. This ensures a consistent and smooth operation, resulting in better quality concrete mixtures.
- Power: Hydraulic
- Speed: 3200rpm
- Warranty: 1 Year
- Material: Cast Iron
Highland Mixer Hydraulic Pump is packaged in a durable plywood case, ensuring its safety during transportation. Delivery time will depend on your order quantity, but rest assured that we will prioritize your needs.
Our minimum order quantity is 5 pieces, but we also welcome bulk orders. Prices are negotiable and we accept payments through T/T. Our supply ability is 300 sets per month, so you can be sure that we can cater to your needs.
Don't settle for manual labor when you can have the efficiency and convenience of HIGHLAND's Mixer Hydraulic Pump. Contact us now to place your order and experience a smoother and faster cement mixing process!
FAQ:
- Q: What is the brand name of this product? A: The brand name is HIGHLAND.
- Q: What is the model number of this product? A: The model number is PV23.
- Q: Where is this product made? A: This product is made in China, specifically in Dezhou.
- Q: Is this product certified? A: Yes, this product has both a patent and an ISO certificate.
- Q: What is the minimum order quantity? A: The minimum order quantity is 5 pieces.
- Q: Can the price be negotiated? A: Yes, the price is negotiable.
- Q: How is this product packaged? A: This product is packaged in a plywood case.
- Q: How long is the delivery time? A: The delivery time is determined by the customer's quantity.
- Q: What are the payment terms? A: The payment terms are T/T (bank transfer).
- Q: How many sets of this product can be supplied per month? A: This product has a supply ability of 300 sets per month.
Tags: Mixer hydraulic pump, high pressure hydraulic pump, heavy duty hydraulic pump
