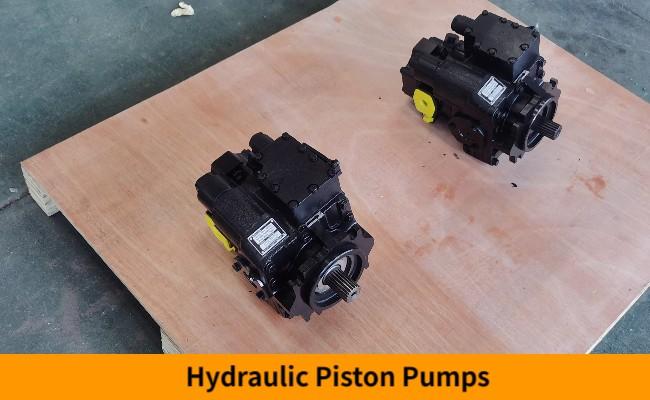

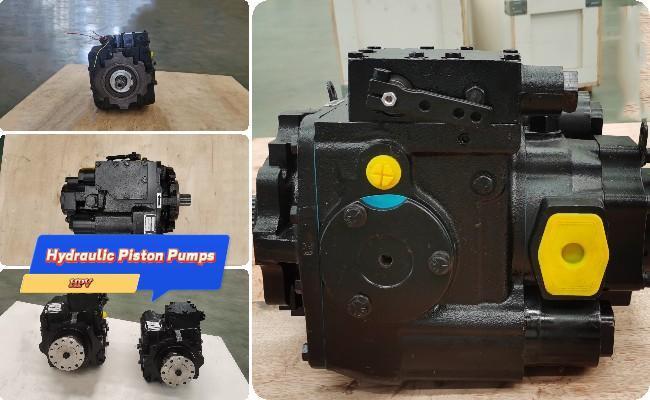

110ml/r Hydraulic Oil Hydraulic Transmission Piston Pump High Pressure Hydraulic Pump
110ml/r Hydraulic Oil Hydraulic Transmission Piston Pump High Pressure Hydraulic Pump
Product Description:
As a standard, nonstandard hydraulic piston pump, Highland HPV110 is designed to provide reliable performance in a variety of settings. Its hydraulic transmission working principle ensures smooth and efficient operation, while its manual loading loading mode makes it easy to use for operators of all skill levels.
With a minimum order of just one set,Highland HPV110 piston pump is an ideal choice for a wide range of applications. Whether you're working in construction, mining, or any other industry that requires high pressure piston pump, Highland HPV110 piston pump is up to the task.
So why choose Highland HPV110 Hydraulic Pump? Here are just a few of the reasons:
- High pressure piston pump for reliable performance in high pressure applications
- Standard, nonstandard design for maximum versatility
- Hydraulic transmission working principle for smooth and efficient operation
- Manual loading loading mode for ease of use
Whether you're looking for a hydraulic pump for a specific project or need a reliable pump for ongoing use, the HPV110 is the perfect choice. Contact us today to learn more about this high quality hydraulic pump and how it can benefit your business.
Features:
- Product Name: Hydraulic Piston Pumps
- Material: Cast Iron
- Medium: Hydraulic Oil
- Power Source: Hydraulic
- Max Pressure: 42 MPA
- Working Principle: Hydraulic Transmission
- Features:
- HPV110 hydraulic pump
- High pressure piston pump
- Reliable performance
- Efficient and cost-effective
- Compact design
Technical Parameters:
| Power Source | Hydraulic |
| Standard Or Nonstandard | Standard |
| Warranty | 1 Year |
| Material | Cast Iron |
| Max Displacement | 110ml/r |
| Minimum Order | 1 Set |
| Loading Mode | Manual Loading |
| Medium | Hydraulic Oil |
| Max Pressure | 42 MPA |
| Usage | Mobile Crusher |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Applications:
The HIGHLAND HPV110 hydraulic piston pump is suitable for a wide range of applications. It is commonly used in industrial machinery, construction machinery, and agricultural machinery. It can also be used in mining machinery, metallurgical machinery, and other heavy equipment. The hydraulic piston pump is ideal for applications that require high pressure and high flow rate. It is also versatile and can be used in a variety of different hydraulic systems.
If you are looking for a hydraulic piston pump for sale, the HIGHLAND HPV110 is a great option. It is a standard product that is widely used in the industry and has a proven track record. The product is reliable, durable, and efficient, making it a cost-effective solution for your hydraulic system needs. Whether you need a single pump or multiple pumps, the HIGHLAND HPV110 can be customized to meet your specific requirements.
In summary, the HIGHLAND HPV110 hydraulic piston pump is a reliable and efficient product that can be used in a wide range of hydraulic systems. It is a standard product that is widely used in the industry and has a proven track record. If you are looking for a hydraulic piston pump for sale, the HIGHLAND HPV110 is a great option. It is cost-effective, versatile, and can be customized to meet your specific requirements.
FAQ of hydraulic piston pumps:
Q1: Could I have a sample order?
A: Yes, we welcome a sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: No one can match our dedication to quality, honesty and value. Experienced hydraulic pump experts, experienced customer service, experienced technicians dedicated to their work, process each and every order. Each order is carefully inspected before it leaves our facility.
Also we offer 1 year gurantee.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance paid before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing producing hydraulic pumps and motors.
20 years experience in hydraulic industry for oversea and domestic markets. Main business range is hydraulic motor pump system, piston pumps and motors, welcome to visit our factory in Dezhou city Shandong province.
Tags: 110ml/r hydraulic piston pump, high pressure hydraulic pump, hydraulic transmission piston pump
