Black Concrete Mixer Truck Hydraulic Pump Variable Axial Piston Pump
Truck mixer hydraulic pumps fungibility of general components
Truck mixer hydraulic pump product introduction:
Truck mixer hydraulic consists of Highland hydraulic pump, hydraulic motor and reducer unit, the engine output mechanical energy into hydraulic energy by hydraulic system, and then through the reducer into mechanical energy to rotate the tanks.

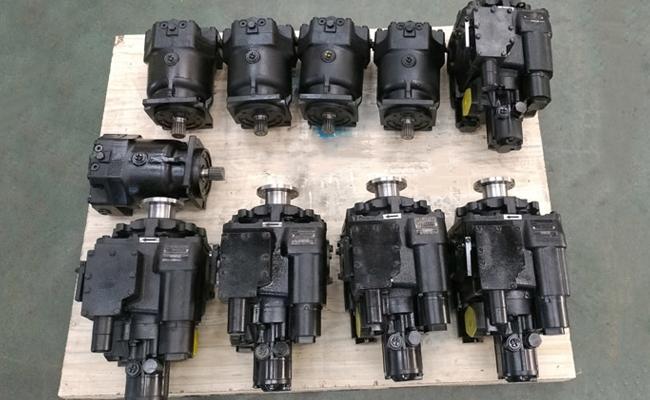

Highland PV22 hydraulic pump main features:
- Series 20 hydraulic pumps are well engineered and easy to handle, apply to mixer truck.
- Variable axial piston pumps of mixer truck are all tapered roller bearing, which can load heavy external axial forces.
- When hydraulic pumps operated mechanically, the servo displacement can control and keep the angle of swash plate and pump displacement.
Truck mixer hydraulic pump technical parameters:
| 20 series PV hydraulic pump and MF hydraulic motor | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 89.0 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| Weight |
PV series hydraulic pump hydraulic oil emptying |
kg | 45 | 53 | 63 | 78 |
|
PV series hydraulic motor hydraulic oil emptying |
kg | 30 | 34 | 40 | 47 | |
Highland service of mixer hydraulic pump:
1. One-stop hydraulic pump service for all the top mixer truck manufacturer.
2. We have more than 20 years' experiences in hydraulic pump industry and our superior manufacturing process meet customers request of all kinds of hydraulic pumps according to OEM standards.
3. We have implemented the highest quality control system possible to ensure the stability and quality of our mixer piston pumps.
4. Our sales team is experienced and trained to understand your request and help you find the best solution for your needs.
FAQ of mixer hydraulic pump:
Q1: Could we place a sample order of mixer hydraulic pump?
A: Yes, welcome sample order to test and check quality.
Q2: Do you offer guarantee for mixer hydraulic pump?
A: Each pump will be tested before shipping. Warranty 12 months after shipment for complete assembly.
Q3: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment. Small order/sample order: 100% T/T payment in advance.
Q4: Are you manufacturer?
We are a manufacturer with own plant and professional manufacturing mixer hydraulic pump. We have 20 years experience in hydraulic industry for oversea and domestic markets.
Tags: mixer hydraulic pump, truck mixer hydraulic pump, PV22 hydraulic pump
