33.3ml/R Cement Truck Hydraulic Pumps 51KW Closed Loop Hydraulic Pump
Highland Cement truck mixer hydraulic pumps connect additional hydraulic pumps
Highland Cement mixer hydraulic pump main function:
The main function of Highland mixer hydraulic pump is to convert the power into hydraulic energy (displacement and pressure), and then output by hydraulic motor to mechanical energy (speed and torque), providing power for the rotation of the mixing tank.

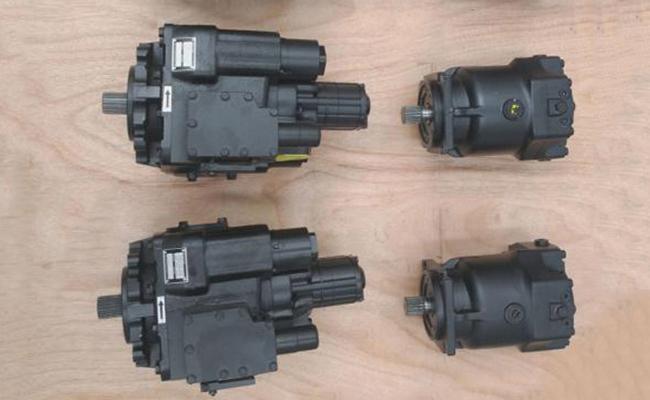

Highland PV20 Mixer hydraulic pump performance and characteristics:
1. High efficiency, durable, robust design meets the demands of harsh work conditions for applications in mixer truck.
2. Mixer truck hydraulic pumps has swash plate structure.
3. Be Suitable for closed-loop circuit system of mixer hydraulic pump.
4. Mixer hydraulic pumps have manual servo and hydraulic variable control mode.
5. Mixer hydraulic pumps are variable displacement pumps with a charging oil pump.
Cement mixer hydraulic pump technical parameters:
| 20 series PV hydraulic pump and MF hydraulic motor | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 89.0 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 51 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| Weight |
PV series hydraulic pump hydraulic oil emptying |
kg | 45 | 53 | 63 | 78 |
|
PV series hydraulic motor hydraulic oil emptying |
kg | 30 | 34 | 40 | 47 | |
Highland Mixer hydraulic pump advantages:
- Wide range of displacements: Offering a range of pumps with 30-130 cm² per round. Our hydraulic pumps are flexible enough to fit all kinds of applications.
- High pressure capability: keep high performance of working conditions at 420 Bar instantaneous high pressure situation.
FAQ of medium duty hydraulic pumps:
Q1: Are you trading company or manufacturer ?
A: We are a manufacturer with own plant covering an area of 10,000 square meters. .
Q2: How long is your delivery time?
A: Generally 2 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: Could you accept sample order?
A: Yes, we accept sample order for customer to test pump quality.
Q4: How long for your warranty time?
A: 1 Year warranty, each pump will be tested by our hydraulic test bench before shipping.
Q5: What is your payment term ?
A: Sample order or small value, payment 100% in advance. Big value order 40% T/T in advance, rest paid before shipment.
